Sold out
SRX345
Model: SRX345 – Juniper SRX Series Service Gateways
Details: SRX345 (Hardware Only, require SRX345-JSB or SRX345-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots. Includes internal power supply, cable and RMK
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
SRX345 Overview

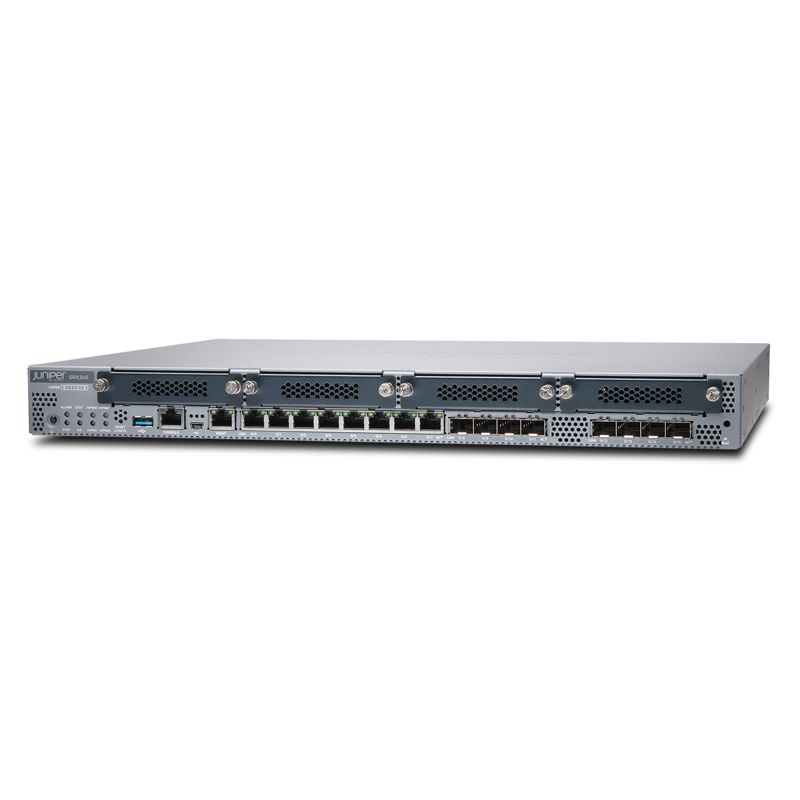

Quick Specs Figure 1 shows the appearance of SRX345.
Table 1 shows the Quick Specs.
| Description | SRX345 (Hardware Only, require SRX345-JSB or SRX345-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots. Includes internal power supply, cable and RMK |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 5 Gbps |
| IPS performance | 500 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 800 Mbps |
| Maximum concurrent sessions | 375,000 |
| New sessions/second (sustained, TCP, 3-way) | 20,000 |
| Maximum security policies | 4000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
| Total onboard ports | 16x1GbE |
| Onboard RJ-45 ports | 8x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 8x1GbE |
| MACsec-capable ports | 16x1GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Mini PIM (WAN) slots | 4 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | 0 |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| SSD slots | 1 |
| Form factor | 1U |
| Size (WxHxD) | 17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) / 17.36 x 1.72 x 18.7 in. (44.09 x 4.36 x 47.5 cm) |
| Redundant PSU | Yes |
| Power supply | AC (internal) / DC (internal) |
| Maximum PoE power | N/A |
| Average power consumption | 122 W |
| Average heat dissipation | 420 BTU/h |
| Maximum current consumption | 1.496 A / 6A @ -48 VDC12 |
| Acoustic noise level | 45.5 dBA |
| Airflow/cooling | Front to back |
| Operational temperature | -22° to 131° F (-30° to 55° C) |
| Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
