SRX550-645AP-M
Model: SRX550-645AP-M – Juniper SRX Series Service Gateways
Details: SRX550 Services Gateway with 4G DRAM, 8G CF and 1 AC PSU
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SRX550-645AP-M Overview

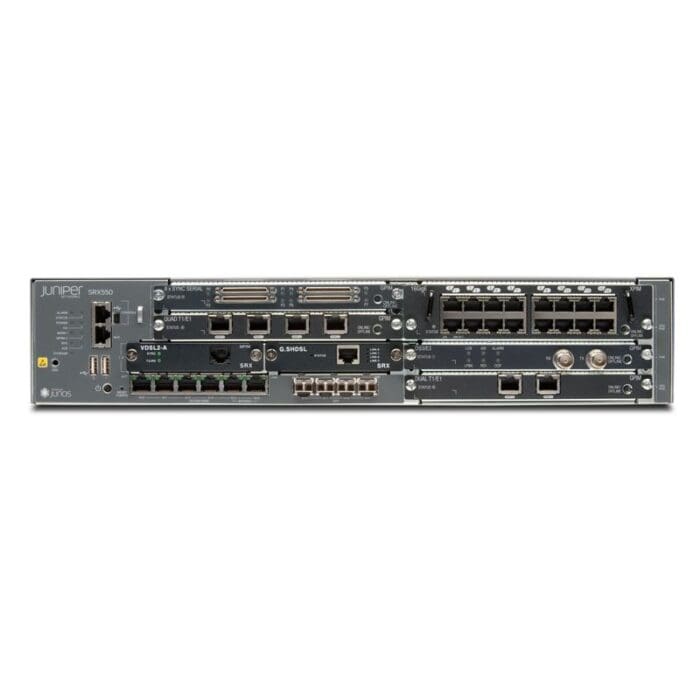

Quick Specs Figure 1 shows the appearance of SRX550-645AP-M.
Table 1 shows the Quick Specs.
| Description | SRX550 Services Gateway with 4 GB DRAM and 8 GB CF, 2 RU height, 6 GPIM slots, 2 Mini-PIM slots, 6 10/100/1000BASE-T ports, 4GbE SFP ports, dual PS slots, fans; ships with one 645 watt AC power supply with 247 W PoE power (power cord and rack-mount kit included) |
| Junos OS software version tested | Junos OS 12.1 |
| Firewall performance (max) | 5.5 Gbps |
| IPS performance | 800 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 1.0 Gbps |
| Maximum concurrent sessions | 375,000 |
| New sessions/second (sustained, TCP, 3-way) | 27,000 |
| Maximum security policies | 7256 |
| Maximum security intelligence data feed entries in firewall rules database | 600,000 IP addresses and 50,000 URLs |
| Fixed I/O | 6 x 10/100/1000 BASE-T + 4 SFP |
| I/O slots | 2 x SRX Series Mini-PIM, 6 x GPIM or multiple GPIM and XPIM combinations |
| Services and Routing Engine slots | No |
| Maximum number of PoE ports (PoE optional on some SRX Series models | Up to 40 ports of 802.3af/at with maximum 247 W |
| USB | 2 |
| Routing (Packet Mode) PPS | 1000 Kpps |
| Concurrent VPN tunnels | 2,000 |
| Memory (DRAM) | 2 GB/4 GB |
| Memory slots | 2 DIMM |
| Flash memory | 2 GB/8 GB CF internal |
| USB port for external storage | Yes |
| Dimensions (W x H x D) | 17.5 x 3.5 x 18.2 in (44.4 x 8.8 x 46.2 cm) |
| Rack-mountable | Yes, 2 RU |
| Power supply (AC) | 100–240 VAC, single 645 W or dual 645 W |
| Maximum PoE power | 247 W redundant, or 494 W nonredundant |
| Average power consumption | 85 W |
| Average heat dissipation | 238 BTU/hr |
| Redundant power supply (hot swappable) | Yes (up to maximum capacity of single PSU) |
| Operational temperature | 32° to 104° F (0° to 40°C) |
