-5%
SS-OP-D-LC-M-10
Model: SS-OP-D-LC-M-10 14130222 Huawei Patch Cord
Details: Huawei Patch cord SS-OP-D-LC-M-10 LC/PC-LC/PC-Multimode-A1b-2mm-10m-PVC-Orange
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SS-OP-D-LC-M-10 Overview

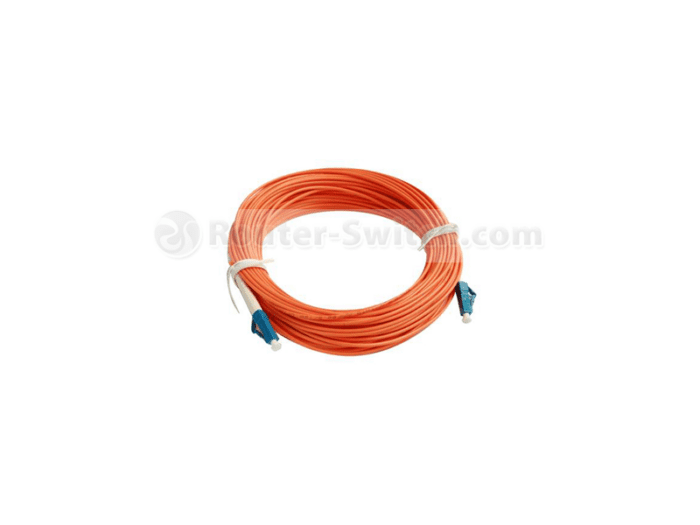

Quick Specs Figure 1 shows the appearance of SS-OP-D-LC-M-10.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | SS-OP-D-LC-M-10 |
| Connector Type | LC/PC to LC/PC |
| Fiber Type | Multimode |
| Jacket Material | PVC |
| Jacket Color | Orange |
| Length | 10 meters |
| Core Diameter | 62.5/125 °m |
| Polish Type | PC |
| Mode | OM1 |
| Insertion Loss | ° 0.3 dB |
| Return Loss | ° 30 dB |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -20°C to +70°C |
| Applicable Standards | IEC, RoHS, REACH |
| Outer Diameter | 2 mm |
| Attenuation at 850 nm | 3.5 dB/km |
| Attenuation at 1300 nm | 1.5 dB/km |
| Bending Radius | 10x outer diameter |
| Application | Local Area Networks (LAN), Data Centers |
| Compliance | GR-326, TIA/EIA-568-C.3 |
