SS-OP-LC-SC-M-20
Model: SS-OP-LC-SC-M-20 14130279 Huawei Patch Cord
Details: Huawei Patch cord SS-OP-LC-SC-M-20 LC/PC-SC/PC-Multimode-A1b-2mm-20m-PVC-Orange
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SS-OP-LC-SC-M-20 Overview

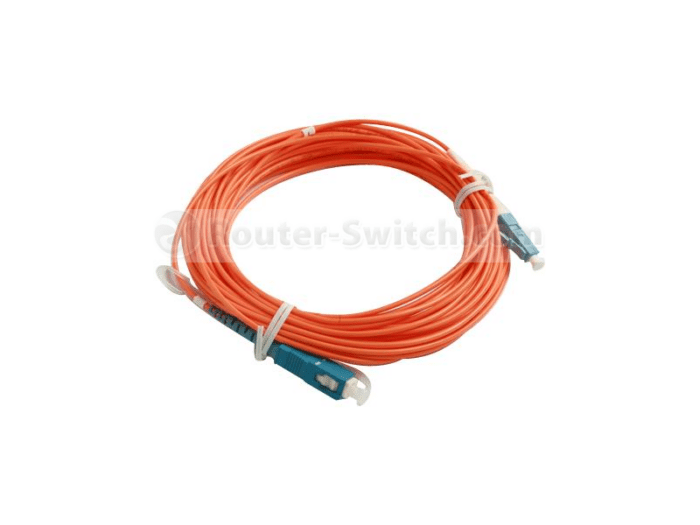

Quick Specs Figure 1 shows the appearance of SS-OP-LC-SC-M-20.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | SS-OP-LC-SC-M-20 |
| Connector Type | LC/PC-SC/PC |
| Mode | Multimode |
| Fiber Type | A1b |
| Diameter | 2 mm |
| Length | 20 m |
| Jacket Material | PVC |
| Color | Orange |
| Insertion Loss | <0.3 dB |
| Return Loss | >35 dB |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| RoHS Compliant | Yes |
| Flame Retardant | IEC60332-1 |
| Fiber Cable Type | Duplex |
| Polish Type | PC (Physical Contact) |
| Maximum Tensile Strength | 70N (Installation), 150N (Long Term) |
| Minimum Bend Radius | 30 mm |
| Connector Ferrule | Ceramic |
| Operational Humidity | 5% to 95% |
