SS-OP-LC-SC-S-20
Model: SS-OP-LC-SC-S-20 14130280 Huawei Patch Cord
Details: Huawei Patch cord SS-OP-LC-SC-S-20 LC/PC-SC/PC-Single mode-G.652-2mm-20m-PVC-Yellow
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SS-OP-LC-SC-S-20 Overview

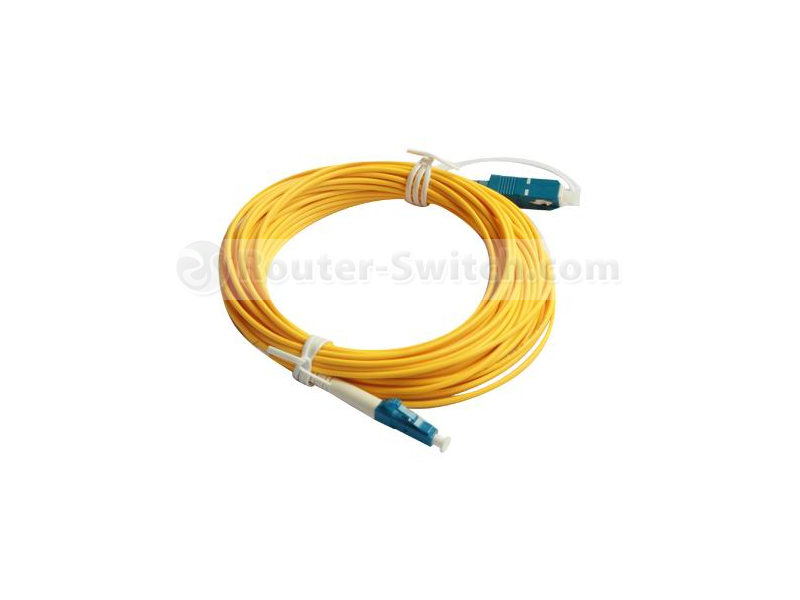

Quick Specs Figure 1 shows the appearance of SS-OP-LC-SC-S-20.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | SS-OP-LC-SC-S-20 |
| Connector Type | LC/PC-SC/PC |
| Cable Type | Patch Cord |
| Mode | Single mode |
| Fiber Standard | G.652 |
| Diameter | 2mm |
| Length | 20 meters |
| Jacket Material | PVC |
| Color | Yellow |
| Insertion Loss | <0.3dB |
| Return Loss | >50dB |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -45°C to 85°C |
| RoHS Compliant | Yes |
| Application | Telecommunications, Networking |
| Max Tensile Strength (Short Term) | 100 N |
| Min Bend Radius (Installation) | 30mm |
| Min Bend Radius (Operation) | 15mm |
| Standard Compliance | IEC, ITU-T |
| Packaging | Individual Polybag |
