ST-LC-1-Meter-Singlemode-Fiber-Optic-Cable
Model: ST-LC-1METER
Details: Fiber Optic Cable, ST/LC, Single-mode – 1 Meter (9/125 Type)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ST-LC-1-Meter-Singlemode-Fiber-Optic-Cable Overview

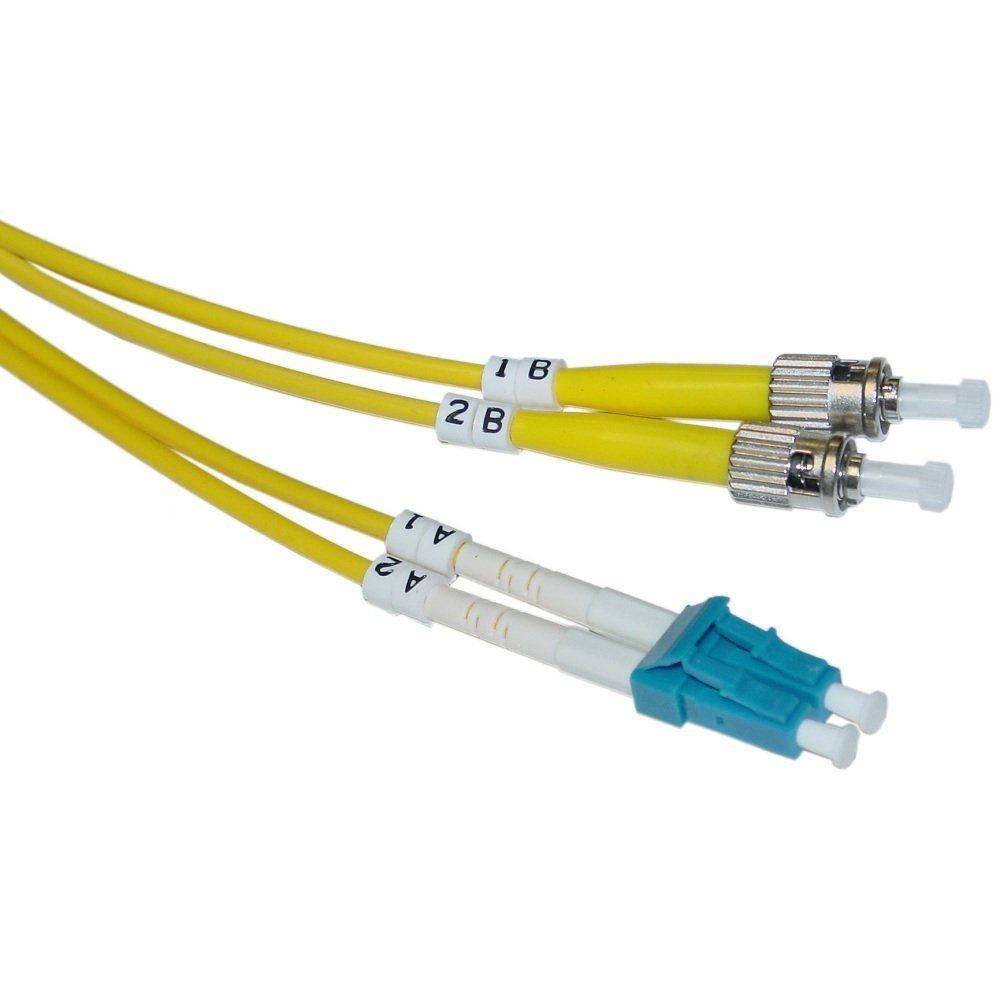

Quick Specs Figure 1 shows the appearance of ST-LC-1-Meter-Singlemode-Fiber-Optic-Cable.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | ST-LC-1-Meter-Singlemode-Fiber-Optic-Cable |
| Type | Fiber Optic Cable |
| Connector Type | ST/LC |
| Mode | Single-mode |
| Length | 1 Meter |
| Core/Cladding Diameter | 9/125 ??m |
| Insertion Loss | < 0.3 dB |
| Return Loss | > 55 dB |
| Polish Type | UPC (Ultra Physical Contact) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Color | Yellow |
| Operating Temperature | -40??C to +75??C |
| Storage Temperature | -25??C to +70??C |
| RoHS Compliant | Yes |
| Ferrule Material | Ceramic |
| Tensile Strength | 100 N |
| Buffer Diameter | 0.9 mm |
| Connector Durability | 500 Cycles |
| Certification | IEC, TIA/EIA, ISO |
| Pulling Force | Standard |
