ST-LC-10-Meter-Singlemode-Fiber-Optic-Cable
Model: ST-LC-10METER
Details: Fiber Optic Cable, ST/LC, Single-mode – 10 Meter (9/125 Type)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ST-LC-10-Meter-Singlemode-Fiber-Optic-Cable Overview

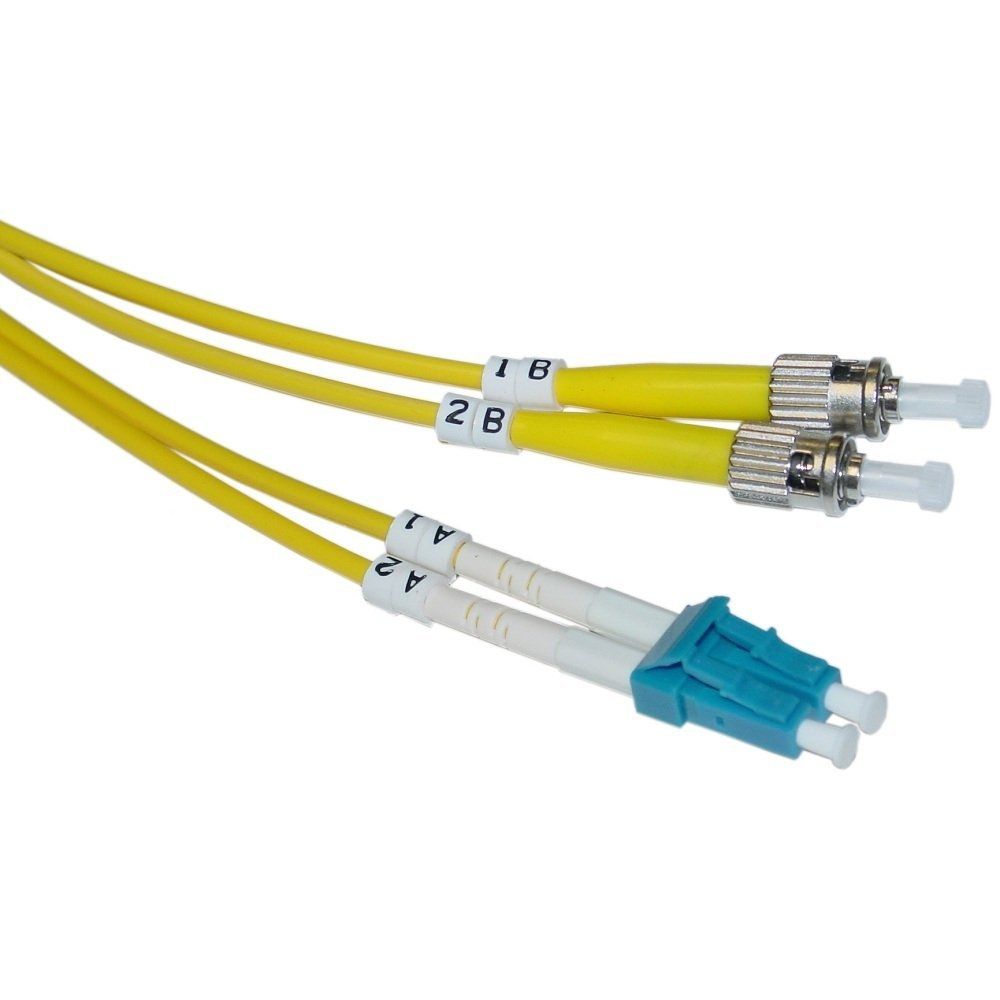

Quick Specs Figure 1 shows the appearance of ST-LC-10-Meter-Singlemode-Fiber-Optic-Cable.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model Name | ST-LC-10-Meter-Singlemode-Fiber-Optic-Cable |
| Type | Fiber Optic Cable |
| Connector Type | ST/LC |
| Mode | Single-mode |
| Cable Length | 10 Meters |
| Fiber Type | 9/125 Type |
| Core Diameter | 9 ??m |
| Cladding Diameter | 125 ??m |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -20??C to +70??C |
| Storage Temperature | -40??C to +85??C |
| Insertion Loss | ?? 0.3 dB |
| Return Loss | ?? 50 dB |
| Outer Diameter | 3.0 mm |
| Wavelength Range | 1310 nm / 1550 nm |
| Compliance | IEC, EN, RoHS |
| Tensile Strength | 100 N |
| Bend Radius | 30 mm |
| Packing Details | Individually packaged |
