ST-ST-5-Meter-Multimode-Fiber-Optic-Cable
Model: ST-ST-5METER
Details: 10Gb Fiber Optic Cable, ST/ST, Multi-mode – 5 Meter (62.5/125 or 50/125 Type)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ST-ST-5-Meter-Multimode-Fiber-Optic-Cable Overview

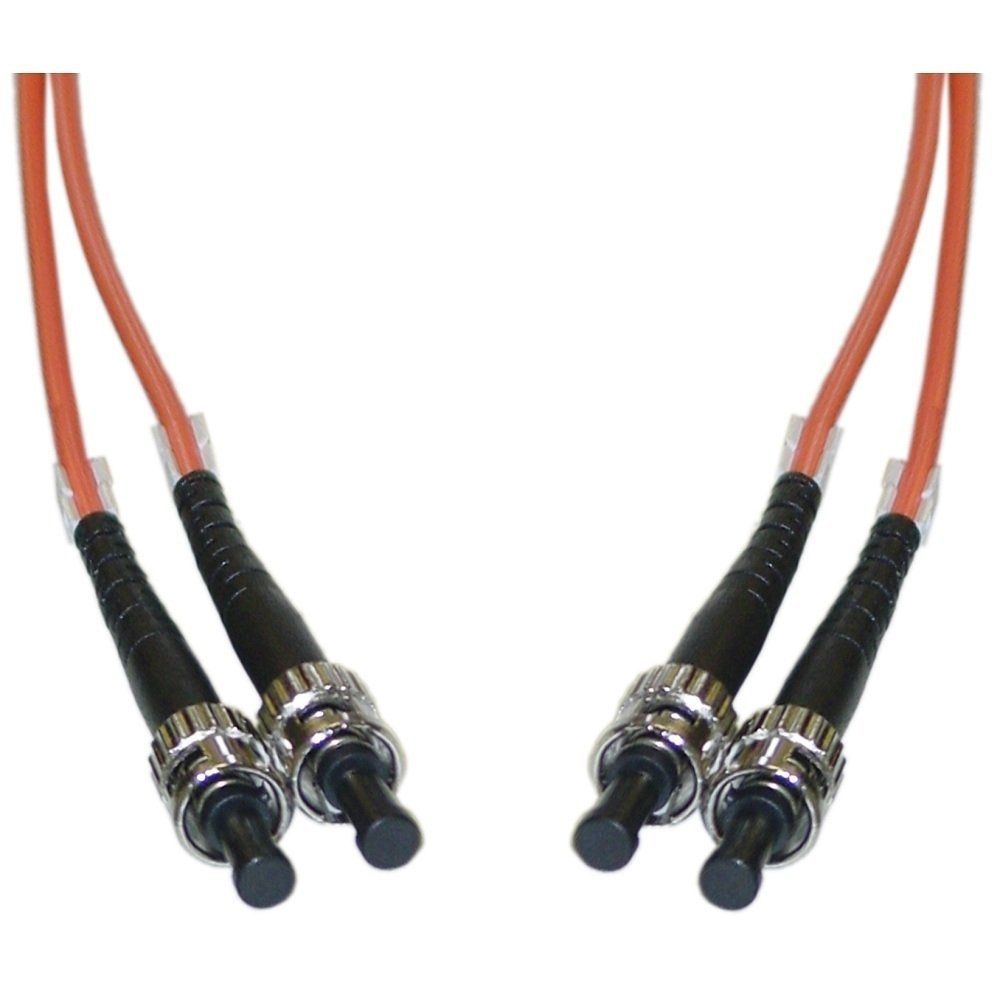

Quick Specs Figure 1 shows the appearance of ST-ST-5-Meter-Multimode-Fiber-Optic-Cable.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | ST-ST-5-Meter-Multimode-Fiber-Optic-Cable |
| Length | 5 Meters |
| Connector Type | ST/ST |
| Cable Type | Multi-mode |
| Data Transfer Rate | 10Gbps |
| Core Diameter | 62.5/125 or 50/125 ??m |
| Jacket Material | PVC |
| Maximum Attenuation | 3.75 dB/km at 850nm, 1.5 dB/km at 1300nm |
| Operating Temperature | -20??C to 70??C |
| Storage Temperature | -40??C to 75??C |
| Installation Temperature | -10??C to 60??C |
| Minimum Bend Radius | 7.5 cm |
| Insertion Loss | ?? 0.3 dB |
| Return Loss | ?? 25 dB |
| Cable Standards | IEC 60793-2-10, TIA/EIA 492AAAA |
| Fiber Count | 2 Fibers |
| Inner Buffer Diameter | 900 ??m |
| Outer Diameter | 3.0 mm |
| RoHS Compliant | Yes |
| Application | Data Centers, LAN, SAN, High-speed networking |
