SVN5630-AC
Model: Huawei SVN5630 Secure Access Gateways SVN5630-AC 02359824
Details: SVN5630 AC Host(4GE(RJ45)+2GE Combo,4GB Memory,1 AC Power)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SVN5630-AC Overview

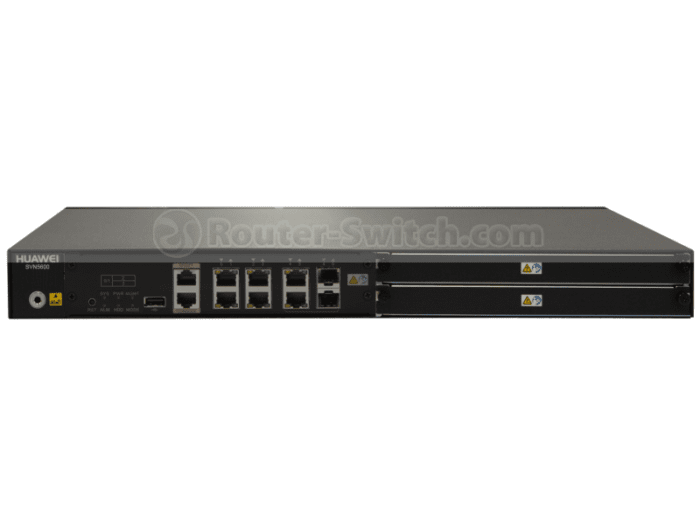

Quick Specs Figure 1 shows the appearance of SVN5630-AC.
Table 1 shows the Quick Specs.
| Maximum number of concurrent SSL VPN users | 1,500 |
| Maximum number of concurrent SSL VPN connections | 5,000 |
| IPSec VPN throughput | 400Mbit/s |
| Concurrent IPSec VPN connections | 4,000 |
| Maximum number of virtual gateways | 64 |
| Fixed ports | 4GE+2Combo |
| Expansion slots | 2WSIC |
| Expansion card types | WSIC：2×10GE（SFP+）+8×GE（RJ45），8×GE（RJ45），8×GE（SFP），4×GE（RJ45）BYPASS |
| Form Factor | 1U |
| Dimensions (H x W x D) mm | 43.6 x 442 x 421 |
| Weight (fully configured) | 10KG |
| HDD | Optional, 300 GB hot-swappable single hard disk |
| Redundant power supply | Optional |
| AC power supply | 100 V to 240 V |
| Maximum power | 170W |
| Operating environment | Temperature: 0°C to 45°C (without hard disk)/5°C to 40°C (with hard disk), humidity: 10% to 90% |
| Non-operating environment (storage environment) | Temperature: –40ºC to 70ºC, humidity: 5% to 95% (non-condensing) |
| SSL VPN | Supports Web proxy, file sharing, port forwarding, network extension, and multimedia tunnel.Supports access to resources, such as Web, Client/Server application program, and multimedia resources, in IPv4 or IPv6 |
| VPN types | SSL VPN, IPSec VPN, GRE VPN, L2TP VPN, MPLS VPN |
| User authentication | Supports authentication methods, such as local password (VPNDB), AD, RADIUS, LDAP, SecurID, X.509 digital certificate, USB key, SMS, device ID, and CAPTCHA authentication. Supports hierarchical authentication, single sign-on (SSO), and software keyboard. |
| Authentication control | Supports role-based, external group mapping, and dynamic authorization based on the security level of the terminalsProvides fine-grained access control based on application, IP address, port, and URL and is able to identify over 6000 application protocols |
| Supported operating systems | Supports Android, Windows, Mac OS, iOS, Linux, Symbian, and BlackBerry OS. |
| Terminal security | Supports terminal/host security check, cache cleaning, terminal ID binding, and DDoS attack defense at application and network layers. |
| Virtual gateway | Supports multiple virtual gateways on one physical gateway to allow for service and network virtualization and independent authentication, authorization, services, and resources management |
| Agile feature | Bandwidth management, intelligent ISP link selection |
| Network security | Supports access control, NAT, and attack defense. |
| Network protocols | Supports IPv4 and IPv6 |
| Deployment and availability | Supports transparent, routing, and hybrid deployment modes and active/active and active/standby high availability (HA) |
