TDJ-SA800/2500-7-90
Model: Huawei TDJ-SA800/2500-7-90 27010209 Vertical Polarization
Details: 824~960MHz/1710~2500MHz,7dBi,90deg,Vertical Polarization,50W,0r,N/female,with support
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TDJ-SA800/2500-7-90 Overview

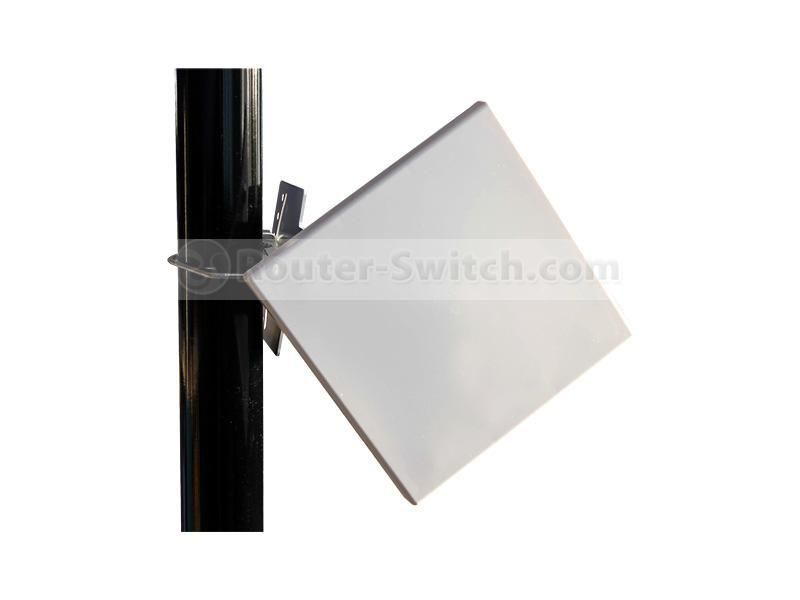

Quick Specs Figure 1 shows the appearance of TDJ-SA800/2500-7-90.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model Name | TDJ-SA800/2500-7-90 |
| Frequency Range | 824~960MHz/1710~2500MHz |
| Gain | 7dBi |
| Beamwidth (Horizontal) | 90 degrees |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50 Ohms |
| Connector Type | N/Female |
| Support | Included with support |
| VSWR | < 1.5 |
| Mechanical Tilt | Fixed |
| Electrical Downtilt | 0 degrees |
| Dimensions | 1100x200x75mm |
| Operating Temperature | -40°C to +60°C |
| Wind Load | 200 km/h |
| Front-to-Back Ratio | > 25dB |
| Radome Material | UV-Stabilized Plastic |
| Lightning Protection | DC Ground |
| Mounting Hardware | Included |
| Compliance | RoHS |
