TE10-720P30-A0
Model: TE10-720P30-A0 – HD Video Conferencing Endpoints – TE10
Details: TE10 all in one Video conferencing Terminal
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TE10-720P30-A0 Overview

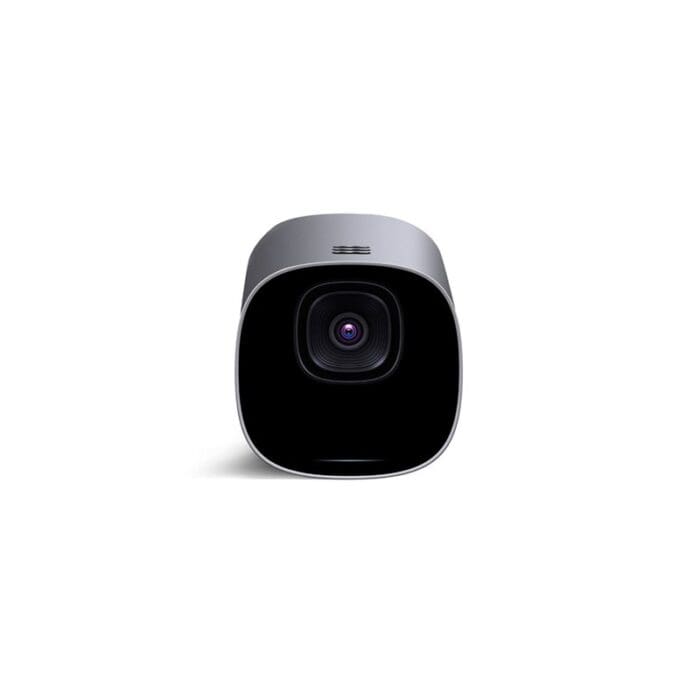

Quick Specs Figure 1 shows the appearance of TE10-720P30-A0.
Table 1 shows the Quick Specs.
| Multimedia Frame Protocols | ITU-T H.323, IETF SIP |
| Video Encoding and Decoding Protocols | H.264 BP, H.264 HP |
| Audio Encoding and Decoding Protocols | G.711A, G.711U, and G.722 |
| Dual-stream Protocol | ITU-T H.239, BFCP |
| Other Communication Protocols | H.350, LDAP, and LDAPS |
| Network Transmission Protocols | FTP, FTPS, DHCP, DNS, SNMP, Telnet, SSH, HTTP, HTTPS, SNTP, TR-069, RTP, and RTCP |
| Wi-Fi Standards | IEEE802.11a/b/g/n, WPA, and WPA2 |
| Video Resolution | 720p30 (minimum bandwidth required: 384 kbit/s)4 SIF/4 CIF (minimum bandwidth required: 128 kbit/s)SIF/CIF (minimum bandwidth required: 64 kbit/s) |
| Presentation Resolution | Wireless access: 1080p5/720p15 |
| Video & Presentation Resolution | 720p30 + 1080p5 or 720p30 + 720p15 |
| Built-in HD Camera | Built-in 1080p camera2.0 megapixels3x digital zoomAutomatic White Balance (AWB)Automatic Exposure (AE) |
| Other Video Features | Various display modes, such as Picture-in-Picture (PiP) and Picture-out-Picture (PoP) |
| Audio Features | Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), Automatic Gain Control (AGC), VoiceClear, AudioEnhancer, and lip synchronization |
| Network Adaptability | Super Error Concealment (SEC), Packet Loss Retransmission (ARQ), and Forward Error Correction (FEC) |
| Security Management | TLS-/SRTP-based encryptionConference access password, conference control password, and administrator passwordSSH/HTTPS and dual-stream encryption |
| IP | 64 kbit/s to 2 Mbit/s |
| Audio Input Ports | 1 x built-in microphone array, and Bluetooth |
| Audio Output Ports | 1 x 3.5 mm, 1 x HDMI (audio supported), 1 x speaker, and Bluetooth |
| Video Input Port | 1 x built-in camera |
| Video Output Port | 1 x HDMI |
| USB Port | 1 x USB 2.0 Host |
| Network Port | IP: 10/100/1,000 Mbit/s Base-T, 1 x RJ45Wireless: built-in Wi-Fi |
| Languages | Simplified Chinese, English, French, German, Japanese, and Spanish |
| Special Features | Interconnection with third-party cloud platformsPlug-and-play configuration via USB deviceBuilt-in speakerConnection to a keyboard or mouseBluetooth speakerRF remote control |
| Maintenance Methods | Using the remote control: Compact remote control and flat, lightweight interactive UIUsing the network management system: SNMP and TR-069 protocols supportedUsing the web interface: Embedded web server and graphic maintenance and diagnosticsUsing command lines: Telnet and SSH supported |
| Maintenance Functions | Automatic sleep and wake-up using the remote controlLogging and log query and exportFactory settings restorationEmbedded local loopbackEmbedded audio and video testing |
| Dimensions (H x W x D)Weight | Endpoint dimensions: 90 mm x 90 mm x 90 mmPackage dimensions: 110 mm x 160 mm x 158 mmNet weight: 0.5 kgGross weight: 1.6 kg |
| Electricity Supply Requirements | Working voltage: 100V to 240V AC or 12V DCWorking frequency: 50 Hz to 60 HzMaximum power consumption: 8W |
| Environmental Requirements | Temperature: 0°C to 40°C (working state), –40°C to 70°C (non-working state)Relative humidity: 10% to 80% (working state), 0% to 95% (non-working state)Ambient noise: < 6 dBA SPLMinimum illumination: 7 luxRecommended illumination: > 300 lux |
| Certifications | CCC, CE (RoHS/REACH), UL, FCC, and Radio Type Approval Certification |
