TE30-C-720P
Model: Huawei (HUAWEI) TE30-C 720P videoconferencing terminals integrated HD video conference Terminal
Details: Huawei (HUAWEI) TE30-C 720P videoconferencing terminals integrated HD video conference Terminal
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TE30-C-720P Overview

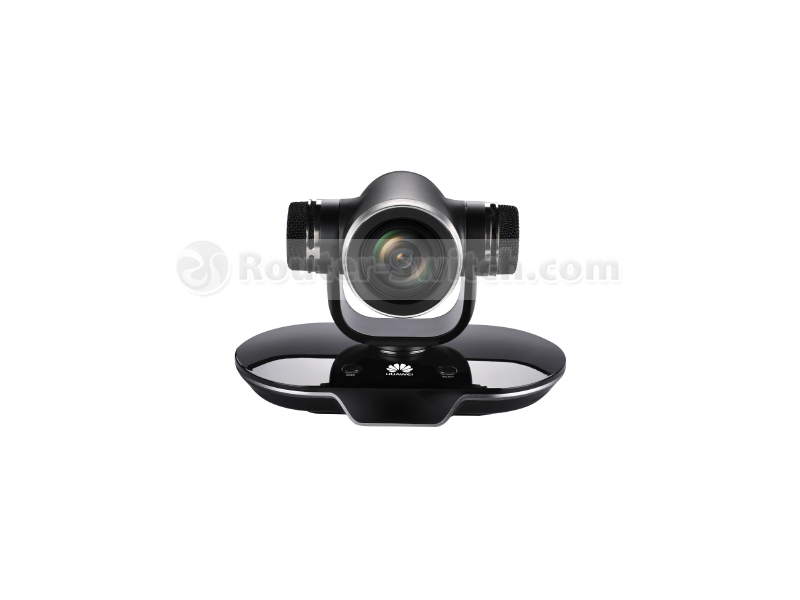

Quick Specs Figure 1 shows the appearance of TE30-C-720P.
Table 1 shows the Quick Specs.
| Standards and Protocols | ITU-T H.323, IETF SIP |
| Video Standards & Protocols | H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV |
| Audio Standards & Protocols | G.711, G.722, G.728, G.722.1*, G.722.1C*, AAC-LD, HWA-LD, G.719, G.729, and G.729A |
| Dual Stream | 1080p30 + 1080p5 (Optional); Dual 720p30 |
| Other Standards | H.221, H.225, H.230, H.231, H.235, H.241, H.242, H.243, H.245, H.281, H.350, H.460, T.140, and DTMF |
| Network Standards & Protocols | TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS with SSL/TLS, PPPoE, RTP, RTCP, SNTP, ARP, 802.1X, 802.1P, and 802.1Q |
| People Video Resolution | 1080p30 from 512 Kbit/s (Optional)720p50/60 from 512 Kbit/s (Optional)720p25/30 from 384 Kbit/s4SIF/4CIF from 128 Kbit/sSIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 Kbit/s |
| Content Video Resolution | Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) 56/60/72/75/85 @ fps, XGA (1,024 x 768) @ 60/70/75/85 fps, 1,152 x 864 @ 60/75/85 fps, 1,280 x 600 @ 60 fps, WXGA (1,280 x 768) @ 60/75/85 fps, WXGA (1,280 x 800) @ 60/75/85 fps, 1,280 x 960 @ 60/75/85 fps, SXGA (1,280 x 1,024) @ 50/60/72/75/85 fps, 1,360 x 768 @ 60 fps, 1,366 x 768 @ 60 fps, 1,440 x 900 @ 60 fps, XGA+ (1,400 x 1,050) @ 60 fps, 720p60/75/85, 1080p60, 1,600 x 900 @ 60 fps, 1,600 x 1,200 @ 60 fps, 1,680 x 1,050 @ 60 fps, 1,920 Â x 1,200 @ 60 fpsCoding/Decoding resolution: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080 Output: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080 |
| 1080p HD Camera | Built-in cameraVideo output pixels: 1080p50/60Lens: 2-megapixel and 1/3-inch CMOS imaging chipZoom: 12x opticalNumber of preset positions: 30Maximum horizontal angle: 72° horizontal field of viewPanning/Tilting angle: +/-30° tilt, +/-100° panAutomatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)Far-end camera controlUpside-down mounting with automatic flipping of picture |
| Other Video Features | Intelligent Face DetectionPicture-in-PicturePicture-outside-Picture |
| Audio Features | Dual-channel AAC-LD Stereo HWA-LD Stereo:Huawei Audio Broadband Low Delay StereoAcoustic Echo Cancellation (AEC)Acoustic Noise Suppression (ANS) 12 dBAutomatic Gain Control (AGC) ±6 dBVoice Clear, Audio EnhancerLip synchronization |
| Network | Dual-stack IPv6 and IPv4IP Precedence, DiffservUniform Resource Identifier (URI) dialing |
| Security | H.235 signaling and media stream encryptionAES media stream encryption, dual-stream encryptionTLS and SRTP for SIP signaling and media stream encryptionConference access password, conference control passwordAdministrator password, SSH/HTTPS |
| Firewall Traversal | H.460.18, H.460.19 firewall traversal, Static NAT, and SNP |
| IP | 64 Kbit/s to 4 Mbit/s |
| Audio Inputs | 1 x 3.5 mm line-in jack, 1 x HD-AI (stereo, connects to microphone array ) |
| Audio Outputs | 1 x 3.5 mm line-out jack, 1 x HDMI |
| Video Inputs | 1 x VGA, 1 x Built-in Camera |
| Video Outputs | 1 x VGA/YPbPr, 1 x HDMI |
| USB Interfaces | 1 x USB 2.0 Host |
| Network Interfaces | IP: 10/100 Base-T, 1 x RJ45Wireless: Built-in Wi-Fi |
| Languages | Simplified Chinese, Traditional Chinese, English, Japanese, Russian, French, Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian, Czech, Turkish, Greek, Thai, Dutch, Malay, and Indonesian |
| Embedded MCU (optional) | Non-encrypted conference: 4-way HD (receive 576P, send 720P)/SD video sites+ 3-way VoIPEncrypted conference: 4-way HD (receive 576P, send 720P)/SD video sitesMax bandwidth: 6MAuto CP on each port, voice activation, chairman token, broadcast site, H.239 and BFCPHD/SD endpoints compliant with H.323/ SIP in the same conference, tolerant of different bandwidth consumption and audio/video protocols |
| Special Features | Voice Dialing in English and ChineseInstallation from a USB disk, Plug nd-playIntegration with Microsoft Lync2010â„¢/Lync2013â„¢ and OCS2007R2Hybrid with IMS networkWi-FiAir content sharingWireless MIC VPM220W accessUpside-down mounting |
| Digital Caption | Caption banner, body text and information barRolling display mode of the speech draftModifiable front background color, caption size and transparency64 optional colors |
| Accessories | VPM220 Microphone array or VPM220W wireless Microphone, Wireless touch panel |
| Function Models | 1080p30, Embedded MCU |
| Maintain Methods | Remote control: 3D Effects and GUI AnimationEndpoints Network Management: SNMPWireless touch panel (optional) |
| Maintain Functions | Endpoint IP and number are displayed on the front panelAuto sleep, wake-up by remote control or remote moduleEvent log record, query, display, and export query resultsIP network test, default settings restorationLocal and remote loopbackTest signals: providing sound test and standard test stripes |
| Dimensions | Codec dimensions (L x W x H): 235 mm x 167 mm x 157 mmPackage dimensions (L x W x H): 402 mm x 232 mm x 237 mmNet weight: 2.1 kg; Package Weight: 3.3 kg |
| Electrical | Working voltage: 100V to 240V AC, 12V DC |
| Environmental Specifications | Operating Temperature: 0°C to 40ºCOperating Humidity: 10% to 80%Non-Operating Temperature: -40ºC to -70ºC |
| Approval and Compliance | CE, RoHS, WEEE, REACH, UL, FCC, and CCC |
