TE40-1080P60-00
Model: TE40-1080P60-00 – HD Video Conferencing Endpoints
Details: Huawei TE40, HD Video Conference Terminal (1080P60, Remote Control, Cable Assembly)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TE40-1080P60-00 Overview

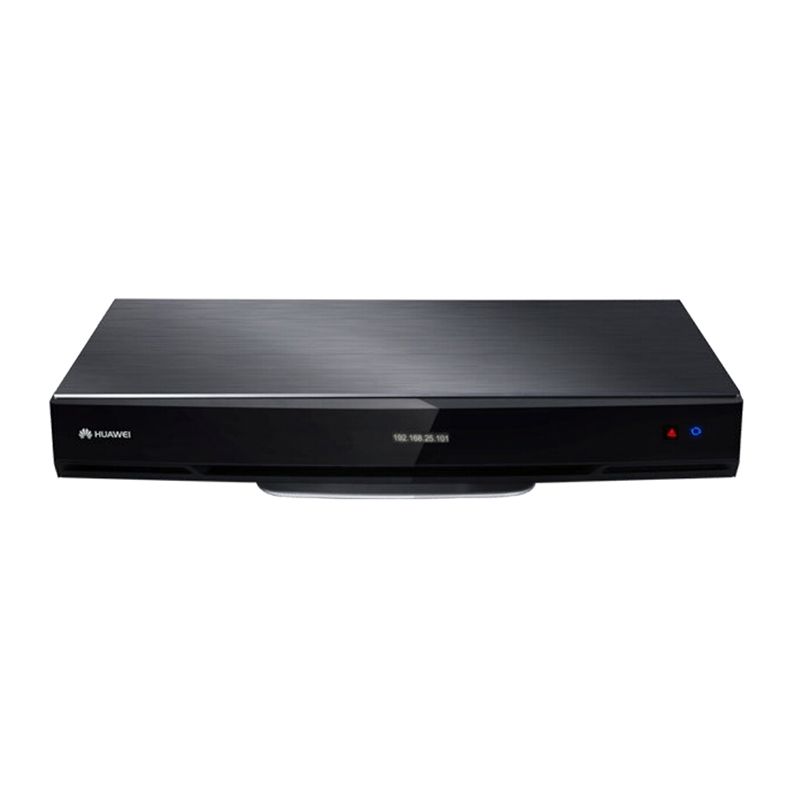

Quick Specs Figure 1 shows the appearance of TE40-1080P60-00.
Table 1 shows the Quick Specs.
| Positioning | Commercial |
| Scenarios | Middle- and small-sized conference rooms |
| People Video Resolution | 1080p60 from 1 Mbit/s (optional)1080p30 from 512 kbit/s (optional)1080i60 from 512 kbit/s (optional)720p50/60 from 512 kbit/s (optional)720p25/30 from 384 kbit/s |
| Dual stream | Dual 1080p60 (optional); Dual 1080p30 (optional); Dual 720p30 |
| Video Inputs | 1 x HD-VI/DVI, 1 x HDMI/DVI, and 1 x VGA/YPbPr |
| Video Outputs | 2 x HDMI/DVI, 1 x VGA/YPbPr |
| Audio Inputs | 1 x XLR, 2 x RCA, 1 x HDMI, and 1 x HD-AI (Mic Array/Audio external) |
| Audio Outputs | 4 x RCA, 2 x HDMI |
| Other Interfaces | IP: 10/100/1,000 Base-T, 2 x RJ45;Â PSTN(#): 1 x RJ11Wireless: Built-in Wi-Fi; 2 x RS232 COM, 2 x USB 2.0 Host |
| Multi-view | 2-view |
| Bandwidth | IP: 64 kbit/s to 8 Mbit/s |
| Dimensions | Codec: 435 mm x 265.5 mm x 72.5 mmNet weight: 3.9 kg |
| Electrical | Working voltage: 100V to 240V ACWorking frequency: 50 Hz to 60 HzPower consumption: 60WEmbedded AC/DC power module |
| Standards and Protocols | ITU-T H.323, IETF SIP |
| Video Standards & Protocols | H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV |
| Audio Standards & Protocols | G.711, G.722, G.722.1, G.722.1C, G.728, G.719, G.729, G.729A, AAC-LD, and HWA-LD |
| Dual Stream | ITU-T H.239, BFCP |
| Other Standards | H.221, H.225, H.230, H.231, H.235, H.241, H.242, H.243, H.245, H.281, H.350, H.460, T.140, and DTMF |
| Network Standards & Protocols | TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS with SSL/TLS, PPPoE, RTP, RTCP, SNTP, ARP, 802.1X, 802.1P, and 802.1Q |
| Content Video Resolutions | Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) @ 56/60/72/75/85 fps, XGA (1,024 x 768) @ 60/70/75/85 fps, 1,152 x 864 @ 60/75/85 fps, 1,280 x 600 @ 60 fps, WXGA (1,280 x 768) @ 60/75/85 fps, WXGA (1,280 x 800) @ 60/75/85 fps, 1,280 x 960 @ 60/75/85 fps, SXGA (1,280 x 1,024) @ 60/75/85 fps, 1,360 x 768 @ 60 fps, 1,366 x 768 @ 60 fps, 1,440 x 900 @ 60 fps, XGA+ (1,400 x 1,050) @ 60 fps, 720p60/75/85, 1080p60, 1,600 x 900 @ 60 fps, 1,600 x 1,200 @ 60 fps, 1,680 x 1,050 @ 60 fps, and 1,920 x 1,200 @ 60 fpsCoding/Decoding resolution: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080, 1,600 x 1,200, and 1,920 x 1,200Output: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080, 1,600 x 1,200, and 1,920 x 1,200 |
| Other Video Features | Intelligent Face Detection Picture-in-Picture, Picture-outside-Picture |
| Audio Features | Dual-channel AAC-LD StereoHWA-LD Stereo: Huawei Audio Broadband Low Delay StereoAcoustic Echo Cancellation (AEC) |
| Security | H.235 signaling and media stream encryptionAES media stream encryption, dual-stream encryptionAdministrator password, SSH/HTTPS |
| Firewall Traversal | H.460.18, H.460.19 firewall traversal, Static NAT, and SNP |
| Network | Dual-stack IPv6 and IPv4IP Precedence, DiffservUniform Resource Identifier (URI) dialing |
| Languages | Simplified Chinese, Traditional Chinese, English, Japanese, Russian, French, Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian, Czech, Turkish, Greek, Thai, Dutch, Malay, and Indonesian |
| Special Features | Voice Dialing in English and ChineseUSB auto data configurationVGA bypassWireless Wi-Fi accessAir content sharingConnect to two Omni-array Microphones (VPM220)Wireless MIC VPM220W accessHybrid with IMS networkLock Site/Conference |
| Digital Caption | Caption banner, body text and information barRolling display mode of the speech draftModifiable front background color, caption size, and transparency |
| Maintenance Methods | Remote control: 3D Effects & GUI AnimationCommand line mode: Telnet/SSHEndpoints Network Management: SNMPEmbedded Web server, GUI interfaceWireless touch panel (optional) |
| Maintenance Functions | Endpoint IP and number are displayed on the front panelAuto sleep, wake-up by remote control or remote moduleLocal and remote loopback |
| Environmental Specifications | Operating Temperature: -4°C to 45ºCOperating Humidity: 10% to 95%Non-Operating Temperature: -40ºC to 70ºC |
| Approval and Compliance | CE, RoHS, WEEE, REACH, UL, CCC, FCC, VCCI, and C-Tick |
