TE40-720P30-00

Original price was: $3,042.00.Current price is: $2,889.90.

Model: TE40-720P30-00 – HD Video Conferencing Endpoints
Details: Huawei TE40, Videoconferencing Terminal (720P30, Remote Control, Cable Assembly)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: TE40-720P30-00 Categories: , ,
Description

TE40-720P30-00 Overview

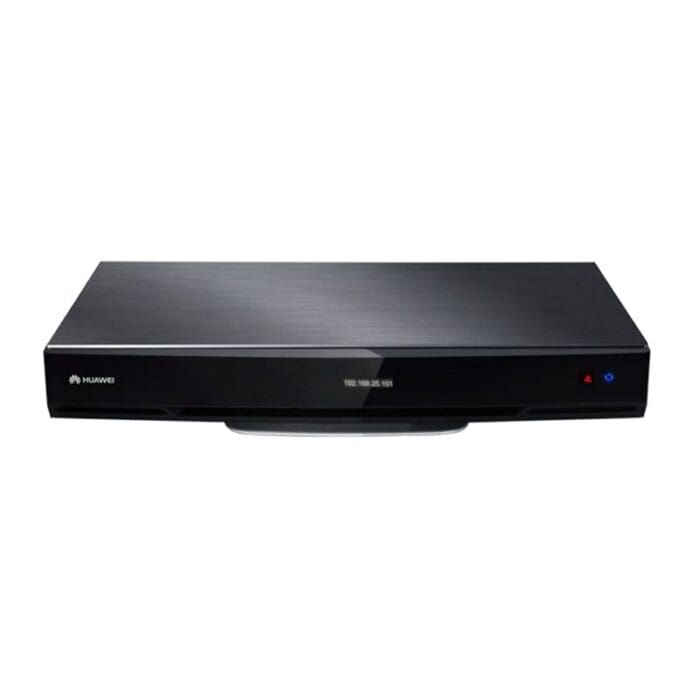

Quick Specs Figure 1 shows the appearance of TE40-720P30-00.

Table 1 shows the Quick Specs.

Positioning Commercial
Scenarios Middle- and small-sized conference rooms
People Video Resolution 1080p60 from 1 Mbit/s (optional)1080p30 from 512 kbit/s (optional)1080i60 from 512 kbit/s (optional)720p50/60 from 512 kbit/s (optional)720p25/30 from 384 kbit/s
Dual stream Dual 1080p60 (optional); Dual 1080p30 (optional); Dual 720p30
Video Inputs 1 x HD-VI/DVI, 1 x HDMI/DVI, and 1 x VGA/YPbPr
Video Outputs 2 x HDMI/DVI, 1 x VGA/YPbPr
Audio Inputs 1 x XLR, 2 x RCA, 1 x HDMI, and 1 x HD-AI (Mic Array/Audio external)
Audio Outputs 4 x RCA, 2 x HDMI
Other Interfaces IP: 10/100/1,000 Base-T, 2 x RJ45; PSTN(#): 1 x RJ11Wireless: Built-in Wi-Fi; 2 x RS232 COM, 2 x USB 2.0 Host
Multi-view 2-view
Bandwidth IP: 64 kbit/s to 8 Mbit/s
Dimensions Codec: 435 mm x 265.5 mm x 72.5 mmNet weight: 3.9 kg
Electrical Working voltage: 100V to 240V ACWorking frequency: 50 Hz to 60 HzPower consumption: 60WEmbedded AC/DC power module
Standards and Protocols ITU-T H.323, IETF SIP
Video Standards & Protocols H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV
Audio Standards & Protocols G.711, G.722, G.722.1, G.722.1C, G.728, G.719, G.729, G.729A, AAC-LD, and HWA-LD
Dual Stream ITU-T H.239, BFCP
Other Standards H.221, H.225, H.230, H.231, H.235, H.241, H.242, H.243, H.245, H.281, H.350, H.460, T.140, and DTMF
Network Standards & Protocols TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS with SSL/TLS,  PPPoE, RTP, RTCP, SNTP, ARP, 802.1X, 802.1P, and 802.1Q
Content Video Resolutions Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) @ 56/60/72/75/85 fps, XGA (1,024 x 768) @ 60/70/75/85 fps, 1,152 x 864 @ 60/75/85 fps, 1,280 x 600 @ 60 fps, WXGA (1,280 x 768) @ 60/75/85 fps, WXGA (1,280 x 800) @ 60/75/85 fps, 1,280 x 960 @ 60/75/85 fps, SXGA (1,280 x 1,024) @ 60/75/85 fps, 1,360 x 768 @ 60 fps, 1,366 x 768 @ 60 fps, 1,440 x 900 @ 60 fps, XGA+ (1,400 x 1,050) @ 60 fps, 720p60/75/85, 1080p60, 1,600 x 900 @ 60 fps, 1,600 x 1,200 @ 60 fps, 1,680 x 1,050 @ 60 fps, and 1,920 x 1,200 @ 60 fpsCoding/Decoding resolution: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080, 1,600 x 1,200, and 1,920 x 1,200Output: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080, 1,600 x 1,200, and 1,920 x 1,200
Other Video Features Intelligent Face Detection Picture-in-Picture, Picture-outside-Picture
Audio Features Dual-channel AAC-LD StereoHWA-LD Stereo: Huawei Audio Broadband Low Delay StereoAcoustic Echo Cancellation (AEC)
Security H.235 signaling and media stream encryptionAES media stream encryption, dual-stream encryptionAdministrator password, SSH/HTTPS
Firewall Traversal H.460.18, H.460.19 firewall traversal, Static NAT, and SNP
Network Dual-stack IPv6 and IPv4IP Precedence, DiffservUniform Resource Identifier (URI) dialing
Languages Simplified Chinese, Traditional Chinese, English, Japanese, Russian, French, Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian, Czech, Turkish, Greek, Thai, Dutch, Malay, and Indonesian
Special Features Voice Dialing in English and ChineseUSB auto data configurationVGA bypassWireless Wi-Fi accessAir content sharingConnect to two Omni-array Microphones (VPM220)Wireless MIC VPM220W accessHybrid with IMS networkLock Site/Conference
Digital Caption Caption banner, body text and information barRolling display mode of the speech draftModifiable front background color, caption size, and transparency
Maintenance Methods Remote control: 3D Effects & GUI AnimationCommand line mode: Telnet/SSHEndpoints Network Management: SNMPEmbedded Web server, GUI interfaceWireless touch panel (optional)
Maintenance Functions Endpoint IP and number are displayed on the front panelAuto sleep, wake-up by remote control or remote moduleLocal and remote loopback
Environmental Specifications Operating Temperature: -4°C to 45ºCOperating Humidity: 10% to 95%Non-Operating Temperature: -40ºC to 70ºC
Approval and Compliance CE, RoHS, WEEE, REACH, UL, CCC, FCC, VCCI, and C-Tick
