TL-SG105
Model: TL-SG105 – TP-Link Switches
Details: 5 Port Gigabit Metal Switch Hub
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
TL-SG105 Overview

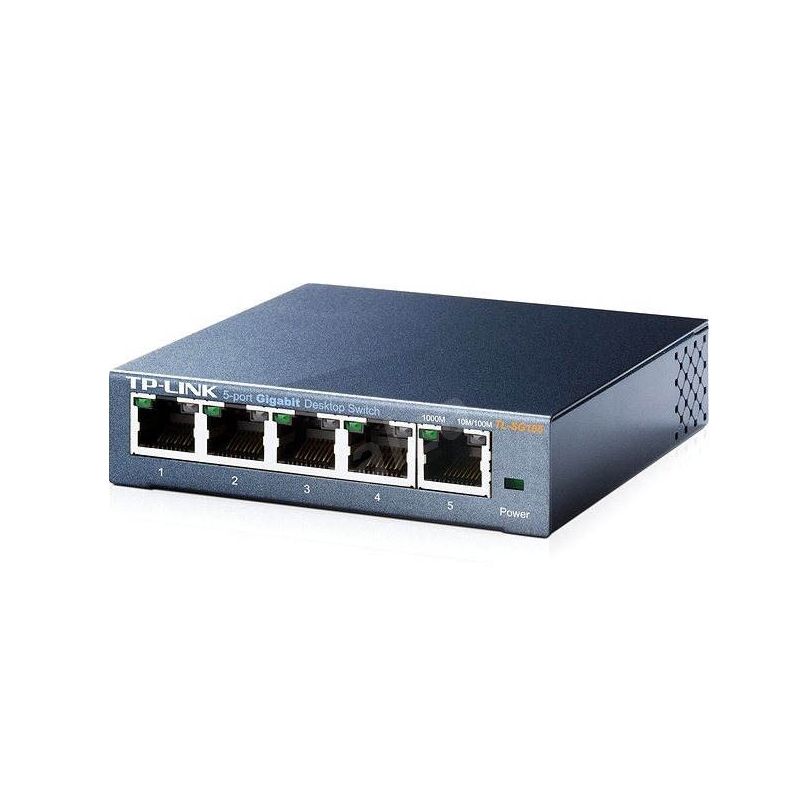

Quick Specs Figure 1 shows the appearance of TL-SG105.
Table 1 shows the Quick Specs.
| Standards and Protocols | IEEE 802.3iIEEE 802.3uIEEE 802.3abIEEE 802.3xIEEE 802.1p |
| Interface | 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter(Output: 5VDC / 0.6A) |
| LED Indicator | System PowerLink/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in.(100 × 98 × 25 mm) |
| Max Power Consumption | 2.3W |
| Max Heat Dissipation | 7.8 BTU/h |
| Packet Forwarding Rate | 7.4Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1Mb |
| Jumbo Frame | 16KB |
| Advanced Features | Green Technology802.3x Flow Control802.1p/DSCP QoSIGMP Snooping |
| Transfer Method | Store and Forward |
| Certification | FCC, RoHS |
| Package Contents | 5-Port 10/100/1000Mbps Desktop SwitchPower AdapterInstallation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10% ~ 90% non-condensingStorage Humidity: 5%~90% non-condensing |
