-5%
TP3106-70-00
Model: Huawei Immersive Telepresence System TP3106-70
Details: Huawei TP3106-70-00 Telepresence Solution
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TP3106-70-00 Overview

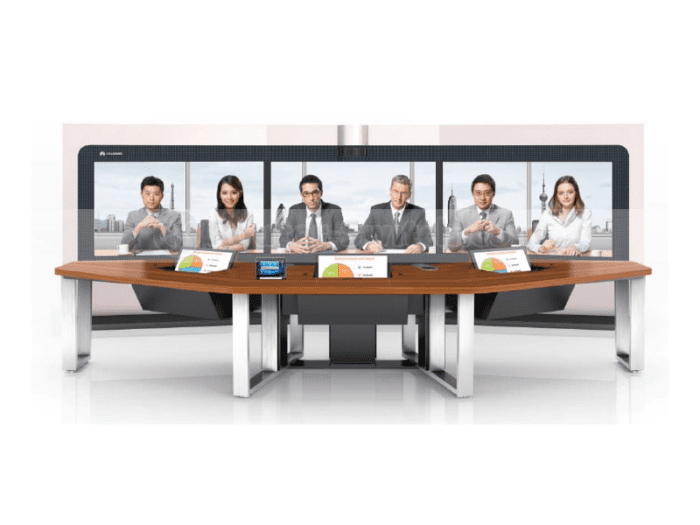

Quick Specs Figure 1 shows the appearance of TP3106-70-00.
Table 1 shows the Quick Specs.
| Standards compliance | Communication framework protocols |
| Video protocols | Protocols: H.263/H263+, H.264 HP, H264 BP, and H.264 SVC |
| Audio protocols | AAC-LD (mono, dual-channel, and three-channel), G.722, G.711, and G.728 |
| Presentation protocols | H.239 and BFCP |
| Encryption protocols | AES media stream encryptionH.235 signaling encryptionTLSSRTP |
| Network transmission protocols | TCP/IP, FTPS, DHCP, SNMP, HTTP, HTTPS, Telnet, SSH, PPPoE, RTP, and RTCP |
| Resolution | 3 x 1080p 50/60 fps |
| Presentation resolutions | Presentation VGA input resolutions: 800 x 600 60/75 fps, 1024 x 768 60 fps, 1280 x 768 75 fps, 1280 x 800 60 fps, 1280 x 1024 60/75 fps, 1366 x 768 60 fps, 1440 x 900 60 fps, 1400 x 1050 60 fps, 720p 60/75 fps, 1080 60 fps, 1600 x 900 60 fps, 1600 x 1200 60 fps, 1680 x 1050 60 fps, 1920 x 1200 60 fpsPresentation HDMI resolutions: 720p 60 fps and 1080p 60 fps |
| Bandwidth | Conference bandwidth |
| Co-optical-center camera | Structure |
| Angle of view | > 90° |
| Screen | HD display |
| Touch panel | Size: 10 inchesResolution: 1920 x 1200 pixels |
| Tabletop display | Size: 22 inchesResolution: 1920 x 1080 pixels |
| Environmental requirements | Temperature range |
| Relative humidity | 20% to 80% (non-condensing) |
| Altitude | < 3 km |
| Reverberation time | 0.3s to 0.5s |
| Ambient noise | ≤ 43 dBA SPL (noise in the area between microphones and seats) |
| Recommended luminance | 300 lux (illuminance per person) |
| Recommended color temperature | 4000 K |
| Conference room dimensions(H x W x D) | Minimum: 6400 mm x 4090 mm x 2440 mm (251.97 in. x 161.02 in. x 96.06 in.)Recommended: 8000 mm x 4590 mm x 2700 mm (314.96 in. x 180.71 in. x 106.30 in.) |
| Power and power supply | Input voltage |
| Power | < 1.59 kW |
| Physical specifications | Dimensions(H x W x D) |
| Weight | < 900 kg |
