TP3206-55-02
Model: Huawei Panovision Telepresence System TP3206-55-02
Details: Huawei TP3206-55-02 Telepresence Solution
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TP3206-55-02 Overview

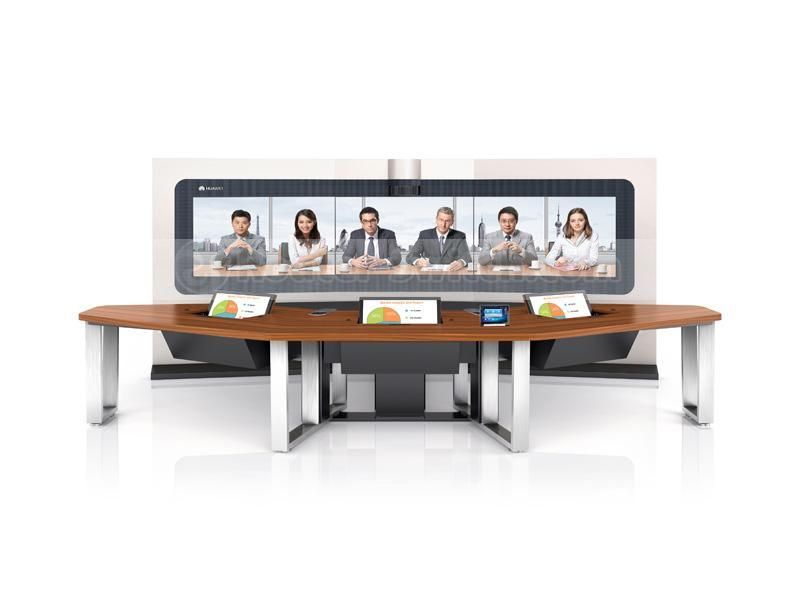

Quick Specs Figure 1 shows the appearance of TP3206-55-02.
Table 1 shows the Quick Specs.
| System Components | Telepresence Codec, Telepresence Camera, 55″ ultra-narrow bezel Display, 22″ content Display, Microphone, Speaker, Laptop/content input accessory, 10”touch panel, Conference table (not include chair), Chair (Optional) |
| Codec | 3 x Telepresence codec |
| Camera | Co-optical-center camera |
| Display | 3 x 55″ ultra-narrow bezel Display |
| Number of Microphone | 6 |
| Content Display | 3 x 22″ |
| Conference Table | One row |
| Equipment Dimensions (H x W x D) | 5’10″ x 14 x 9’7″ feet(1800 x 4350 x 2960 mm) |
| Minimum Room Dimensions (H x W x D) | 7’11″ x 16’3″ x 13 feet(2440 x 5000 x 4000 mm) |
| Recommend Room Dimensions (H x W x D) | 8’9″ x 21’5″ x 14’7″ feet(2700 x 6600 x 4500 mm) |
| Weight | < 1543 lb (700 kg) |
| Power Consumption | 100 – 240 VAC, 50 – 60 Hz, 1700 W |
| Participants capability | 6 to 10 participants |
| Network | Standards and protocols: ITU-T H.323, IETF SIPNetwork standards : TCP/IP, FTPS, DHCP, SNMP, HTTP, HTTPS, Telnet, SSH, PPPoE, RTP, RTCP |
| Video Standards and Protocols | H.264, H.263H.239, BFCP |
| Bandwidth Requirements | Frame |
| 720p 30 fps | 2.3 Mbps |
| 720p 60 fps | 3 Mbps |
| 1080p 30 fps | 3 Mbps |
| 1080p 60 fps | 6 Mbps |
| People Video Resolution | 1080p (50/60 fps), 1080p (25/30 fps), 720p (50/60 fps), 720p (25/30 fps), 4CIF, CIF |
| Content Video Resolution | VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), 720p (1280 x 720), WXGA (1280 x 768), WXGA (1280 x 800), SXGA (1280 x 1024), WXGA (1366 x 768), 1440 x 900, SXGA+ (1400 x 1050), 1080p (1920 x 1080)Support for multiple dual live stream modes:1080p (25/30 fps) and 1080p (25/30 fps)720p (50/60 fps) and 720p (50/60 fps)720p (25/30 fps) and 720p (25/30 fps) |
| Audio Standards and Protocols | AAC-LD, G.722, G.711, G.728 |
| Audio Features | Acoustic Echo Cancellation (AEC)Acoustic Noise Suppression (ANS) 12 dBAutomatic Gain Control (AGC)±6 dBVoiceClearAudioEnhancer |
| Other Supported Standards | H.225, H.233, H.235, H.241, H.245, H.281, H.283, H.350, H.460, T.140 |
| Co-optical-center camera | 1080p 50/602/3-inch CMOSManual focus |
| User Interface | Languages: Simplified Chinese, Traditional Chinese, English, Spanish, French, Portuguese, Arabic, Thai, RussianControl mode: 10”touch panel, Web |
| Security | H.235 signaling and media stream encryptionAES media stream encryptionTLSSRTPConference access passwordConference control passwordAdministrator passwordH.323 ID and number bindingIP address and number binding |
| Special Features | Integration with IMS NetworkIntegration with Microsoft Lync2010TM and OCS2007R2Active captionGroup functionSiteCall (HD dual stream)Chair Site Set CPCall recordLDAP/Network address bookeSpace address bookIntelligent rate control (IRC)Super error concealment (SEC)Local conference capability |
| Approval and Compliance | CE, RoHS |
| Environmental Specification | Operating temperature: 32 to 104ºF (0ºC to 40ºC)Operating humidity: 20 to 80%Peripheral noise: < 40 dBA SPLRecommended illuminance: 350 lux |
