Sold out
TPC-BF5601
Model: TPC-BF5601 – Dahua Thermal Cameras
Details: Dahua Thermal Network Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
TPC-BF5601 Overview

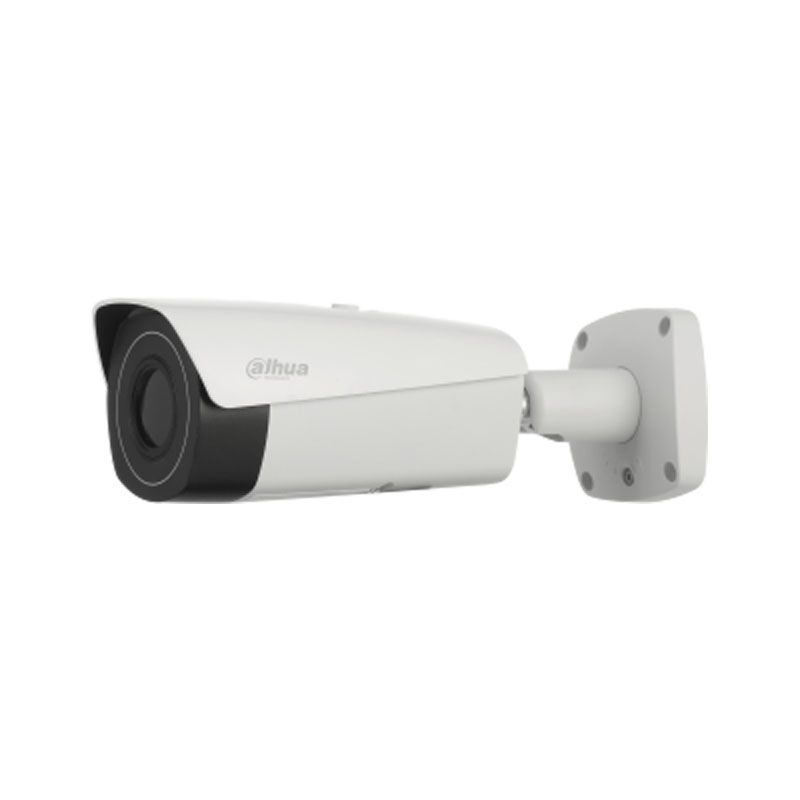

Quick Specs Figure 1 shows the appearance of TPC-BF5601.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | TPC-BF5601 |
| Type | Thermal Network Bullet Camera |
| Resolution | 640 ° 512 |
| Thermal Sensor | Uncooled VOx Microbolometer |
| Pixel Pitch | 12 °m |
| Lens | 50 mm |
| Field of View | 12.4° ° 10.0° |
| Min. Illumination | 0.005 Lux at F1.4 |
| Image Frequency | 50 Hz/60 Hz |
| Shutter Speed | 1/3s to 1/100,000s |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4/IPv6 |
| Video Compression | H.264, H.265, MJPEG |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Protection Level | IP67 |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Supply | 12V DC/24V AC/ PoE |
| Power Consumption | Max. 12W |
| Dimension | 374.6 mm ° 119 mm ° 119 mm |
