TPC-PT8620A-TB
Model: TPC-PT8620A-TB – Dahua Thermal Cameras
Details: Dahua Thermal Network Hybrid Pan & Tilt Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
TPC-PT8620A-TB Overview

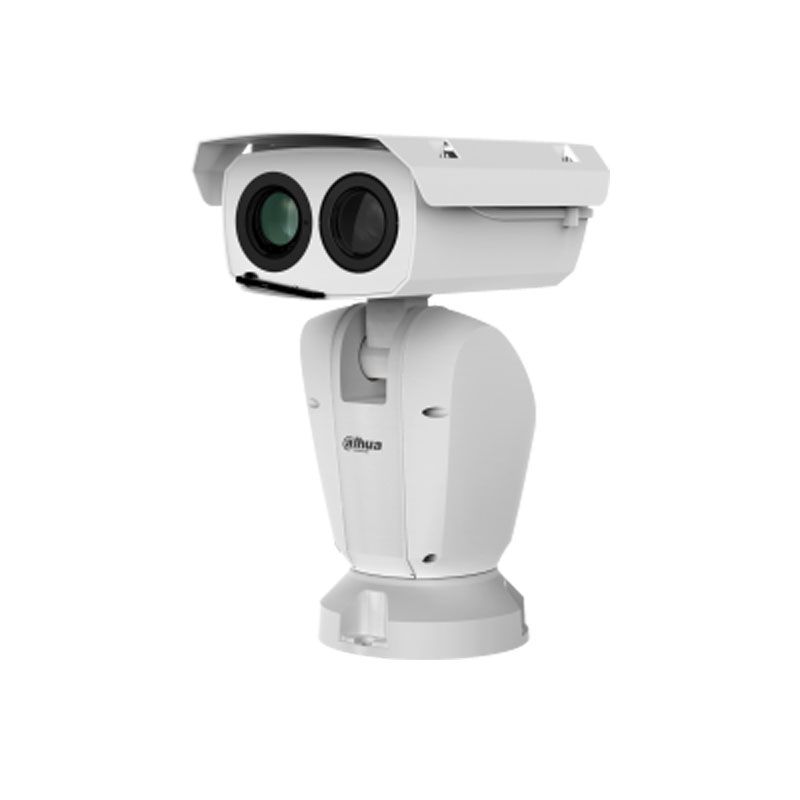

Quick Specs Figure 1 shows the appearance of TPC-PT8620A-TB.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | TPC-PT8620A-TB |
| Type | Thermal Network Hybrid Pan & Tilt Camera |
| Image Sensor | Uncooled VOx Focal Plane Arrays |
| Resolution | 640 x 512 |
| Pixel Pitch | 17°m |
| Thermal Lens | 30mm/F1.0 |
| Pan Range | 360° endless |
| Tilt Range | -90° to +45° |
| Pan Speed | 0.1° to 160°/s |
| Tilt Speed | 0.1° to 90°/s |
| View Angle | 21.7° x 17.5° |
| Minimum Illumination | Color: 0.002 Lux |
| Video Compression | H.265, H.264, MJPEG |
| Network Protocols | HTTP, HTTPS, TCP/IP, UDP, RTP, RTSP, DHCP, DNS, NTP, IPv4/IPv6 |
| Memory Slot | MicroSD, up to 256GB |
| Power Supply | 12V DC, PoE+ (802.3at) |
| Operating Temperature | -40°C to +70°C |
| Ingress Protection | IP66 |
| Dimensions | ?210 ° 330 mm |
| IR Distance | Up to 150m |
