TS-230
Model: TS-230 – QNAP Network Attached Storages
Details: The TS-230 features a Realtek RTD1296 quad-core 1.4 GHz processor and built-in 2 GB DDR4 RAM for meeting personal and home NAS applications.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TS-230 Overview

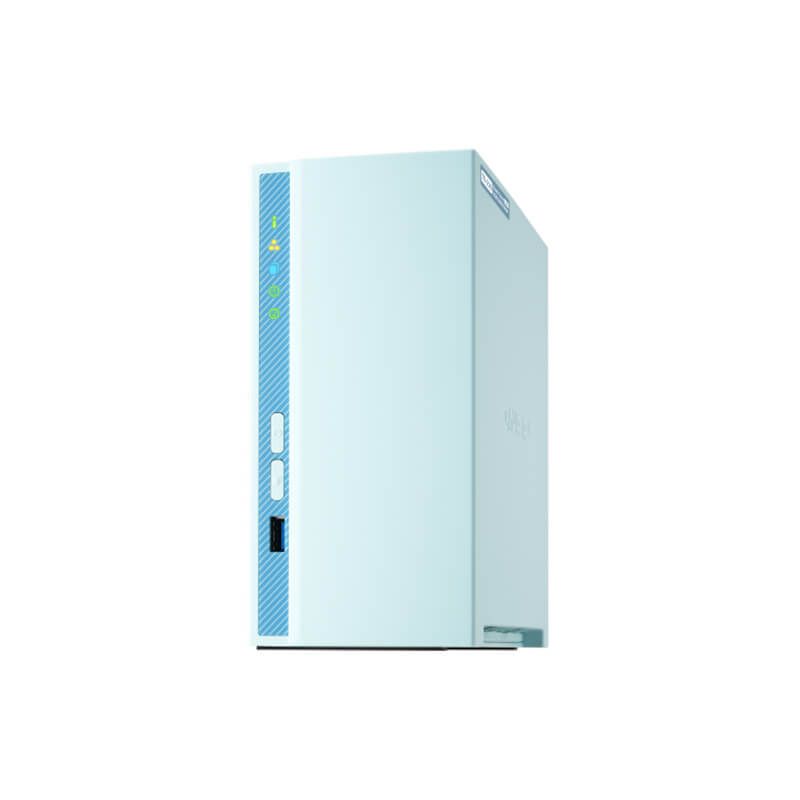

Quick Specs Figure 1 shows the appearance of TS-230.
Table 1 shows the Quick Specs.
| CPU | Realtek RTD1296 quad-core 1.4GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | √ |
| Encryption Engine | √ |
| Hardware-accelerated Transcoding | √ |
| System Memory | 2 GB DDR4, not expandableNote: Reserves some RAM for use as shared graphics memory. |
| Maximum Memory | 2 GB DDR4, not expandable |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives2.5-inch SATA hard disk drives2.5-inch SATA solid state drives |
| Hot-swappable | √ |
| Gigabit Ethernet Port (RJ45) | 1 |
| Wake on LAN (WOL) | √ |
| Jumbo Frame | √ |
| USB 2.0 port | 1 |
| USB 3.2 Gen 1 port | 2 |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 188.64 × 90.18 × 156.26 mm |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |
| Power Supply Unit | External, 65 W, AC 100 to 240 V |
| Power Consumption: HDD Sleep Mode | 4.48 W |
| Power Consumption: Operating Mode, Typical | 12.277 WTested with drives fully populated. |
| Fan | 1 x 80mm, 12VDC |
| Sound Level | 15 db(A) |
| System Warning | Buzzer |
