Sold out
TS-400-148A
Model: TS-400-148A – Dahua Cameras Accessories
Details: Dahua Special Inverter of Solar Power Supply System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
TS-400-148A Overview

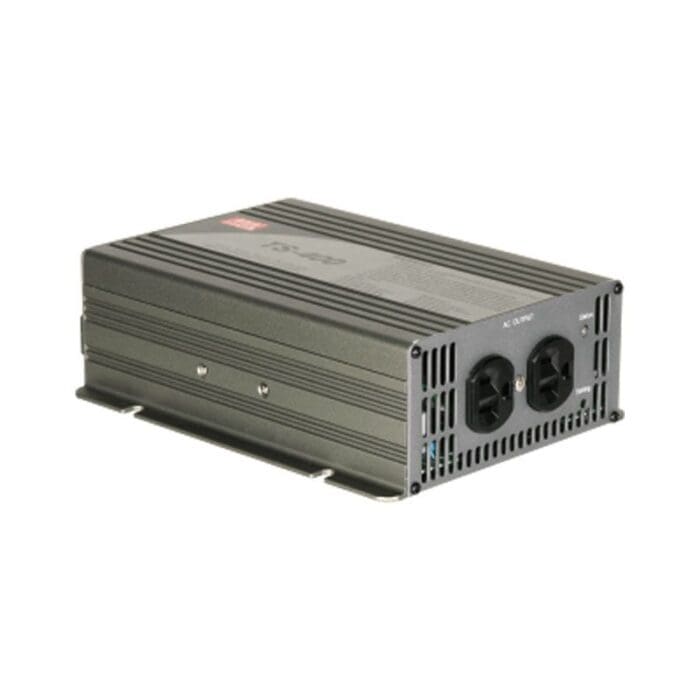

Quick Specs Figure 1 shows the appearance of TS-400-148A.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | TS-400-148A |
| Input Voltage | 148V DC |
| Output Voltage | 230V AC |
| Output Frequency | 50Hz/60Hz |
| Efficiency | Up to 95% |
| Total Harmonic Distortion | < 3% |
| Operating Temperature Range | -20°C to 60°C |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overload, Short Circuit, Over Temperature, Input Over/Under Voltage |
| Communication Interface | RS485, Wi-Fi |
| Dimensions (W x H x D) | 450mm x 420mm x 215mm |
| Network Monitoring | Yes |
| Compliance | CE, UL |
| Warranty | 5 Years |
| Peak Load | 4000W |
| Continuous Load | 3700W |
| Standby Power Consumption | < 5W |
| LCD Display | Yes |
| Mounting Options | Wall Mount |
| Certificates | ISO9001, ISO14001 |
Get more information
Do you have any question about the TS-400-148A?
Contact us now via Live Chat or sales@metafinitivetech.com
