TS-431K
Model: TS-431K – QNAP Network Attached Storages
Details: The TS-431K is powered by a quad-core 1.7 GHz CPU that features more CPU cores to enhance system performance.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TS-431K Overview

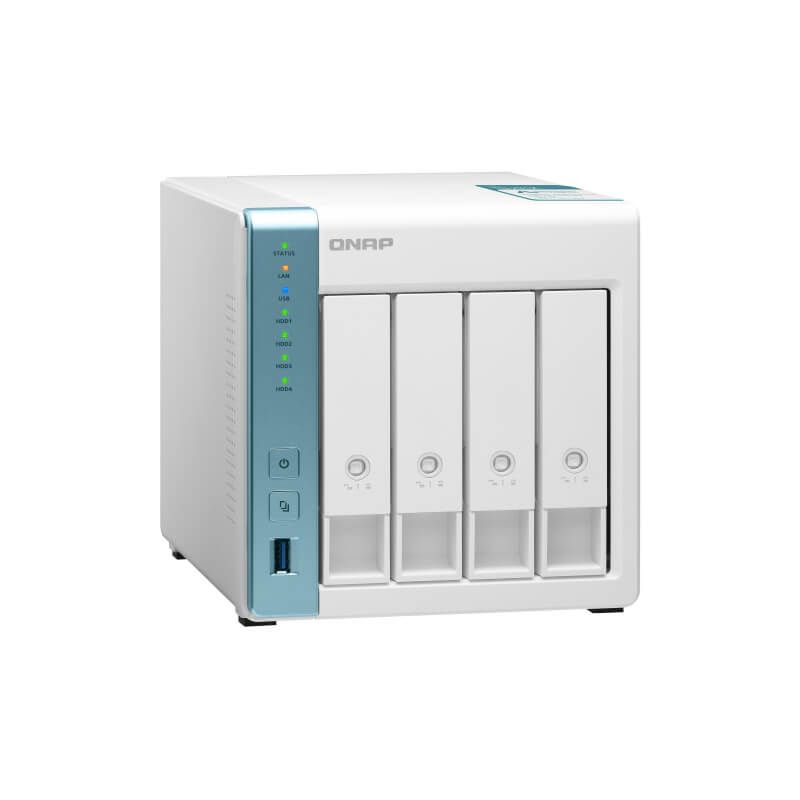

Quick Specs Figure 1 shows the appearance of TS-431K.
Table 1 shows the Quick Specs.
| CPU | AnnapurnaLabs, an Amazon company Alpine AL214, 4-core, 1.7GHz |
| CPU Architecture | 32-bit ARM |
| Floating Point Unit | √ |
| Encryption Engine | √ |
| System Memory | 1GB DDR3 |
| Maximum Memory | 1GB DDR3 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays:3.5-inch SATA hard disk drives2.5-inch SATA hard disk drives2.5-inch SATA solid state drives |
| Hot-swappable | √ |
| SSD Cache Acceleration Support | √ |
| Gigabit Ethernet Port (RJ45) | 2 |
| Wake on LAN (WOL) | √ |
| Jumbo Frame | √ |
| USB 3.2 Gen 1 port | 2 |
| Form Factor | Tower |
| LED Indicators | Power, Status, LAN, USB, HDD1-4 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 6.65 × 6.3 × 8.62 inch |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |
| Power Supply Unit | 90W Adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 11.928 W |
| Power Consumption: Operating Mode, Typical | 26.57 WTested with drives fully populated. |
| Fan | 1 x 120mm, 12VDC |
| Sound Level | 21.3 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot | √ |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 400 |
Get more information
Do you have any question about the TS-431K?
Contact us now via Live Chat or sales@metafinitivetech.com
