TS-473A-8G
Model: TS-473A-8G – QNAP Network Attached Storages
Details: AMD Ryzenâ„¢ quad-core 2.2 GHz 2.5GbE NAS supports M.2 NVMe SSD and PCIe expansion for adding 10GbE high-speed connectivity and M.2 SSD; QTS and QuTS hero dual operating system for greater flexibility.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TS-473A-8G Overview

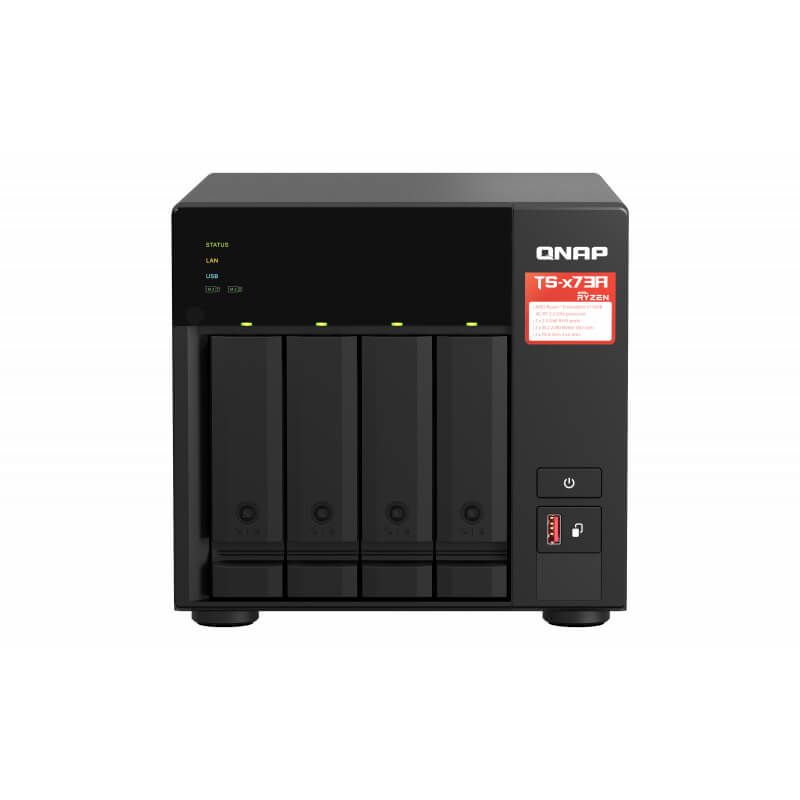

Quick Specs Figure 1 shows the appearance of TS-473A-8G.
Table 1 shows the Quick Specs.
| CPU | AMD Ryzenâ„¢ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | √ |
| Encryption Engine | √(AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SO-DIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4Support ECC memoryFor dual-DIMM configurations, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives2.5-inch SATA hard disk drives2.5-inch SATA solid state drives |
| Hot-swappable | The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slotsThe M.2 SSD is not included as standard.M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (fromQNAPor a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | √ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | √ |
| Jumbo Frame | √ |
| PCIe Slot | 2Slot 1: PCIe Gen 3 x4Slot 2: PCIe Gen 3 x4 |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps |
| IR Sensor | √ (QNAP RM-IR004) |
| HDMI Output | Optional via a PCIe adapter |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 7.41 × 7.85 × 11.06 inch |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |
| Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 19.576 W |
| Power Consumption: Operating Mode, Typical | 29.792 WTested with drives fully populated. |
| Fan | System fan: 1 x 120mmCPU fan: 1 x 60mm |
| Sound Level | 21.4 db(A) |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2000 |
