-5%
TVS-672X-i3-8G
Model: TVS-672X-i3-8G – QNAP Network Attached Storages
Details: Intel® Core™ i3-8100T quad-core 3.1 GHz processor, 8 GB memory (1 x 8 GB)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TVS-672X-i3-8G Overview

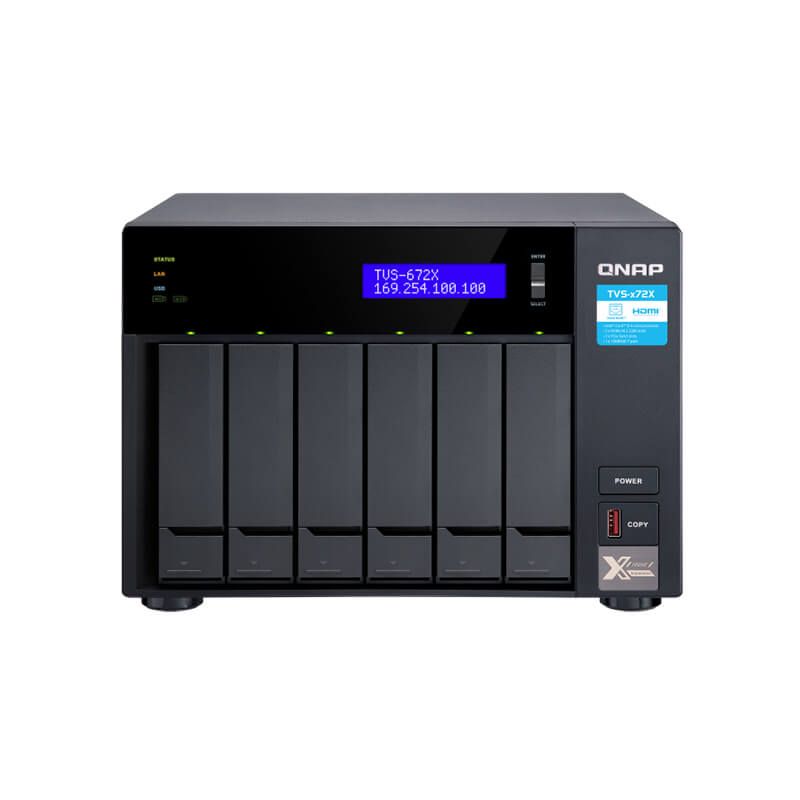

Quick Specs Figure 1 shows the appearance of TVS-672X-i3-8G.
Table 1 shows the Quick Specs.
| CUP | Intel® Core™ i3-8100T 4-core/4-thread 3.1 GHz Processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 630 |
| Floating Point Unit | √ |
| Encryption Engine | √(AES-NI) |
| Hardware-accelerated Transcoding | √ |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64GB (2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays:3.5-inch SATA hard disk drives2.5-inch SATA hard disk drives2.5-inch SATA solid state drives |
| Hot-swappable | √ |
| M.2 Slot | 2 x M.2 2280 PCIe Gen3 x2 slots |
| SSD Cache Acceleration Support | √ |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | √ |
| Jumbo Frame | √ |
| PCIe Slot | 2Slot 1: PCIe Gen 3 x16 (CPU)Slot 2: PCIe Gen 3 x4 (PCH) |
| USB 3.2 Gen 1 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.2 Gen 2 10Gbps2 x Type-A USB 3.2 Gen 2 10Gbps |
| IR Sensor | √(QNAP RM-IR004 & MCE) |
| HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-6, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | √ |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 7.41 × 10.41 × 11.01 inch |
| Weight (Net) | 14.45 lbs |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |
| Power Supply Unit | 250W, 100-24V |
| Power Consumption: HDD Sleep Mode | 26.52 W |
| Power Consumption: Operating Mode, Typical | 45.6 W |
| Fan | System fan: 1 x 120mm, 12VDCCPU fan: 2 x 60mm blower fan |
| Sound Level | 23.8 db(A) |
| System Warning | Voice prompts or Buzzer |
| Kensington Security Slot | √ |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2500 |
