-5%
TVS-675-8G
Model: TVS-675-8G – QNAP Network Attached Storages
Details: Zhaoxin KaiXian KX-U6580 8 cores/8 threads 2.5GHz processor, 8 GB memory (1 x 8 GB)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
TVS-675-8G Overview

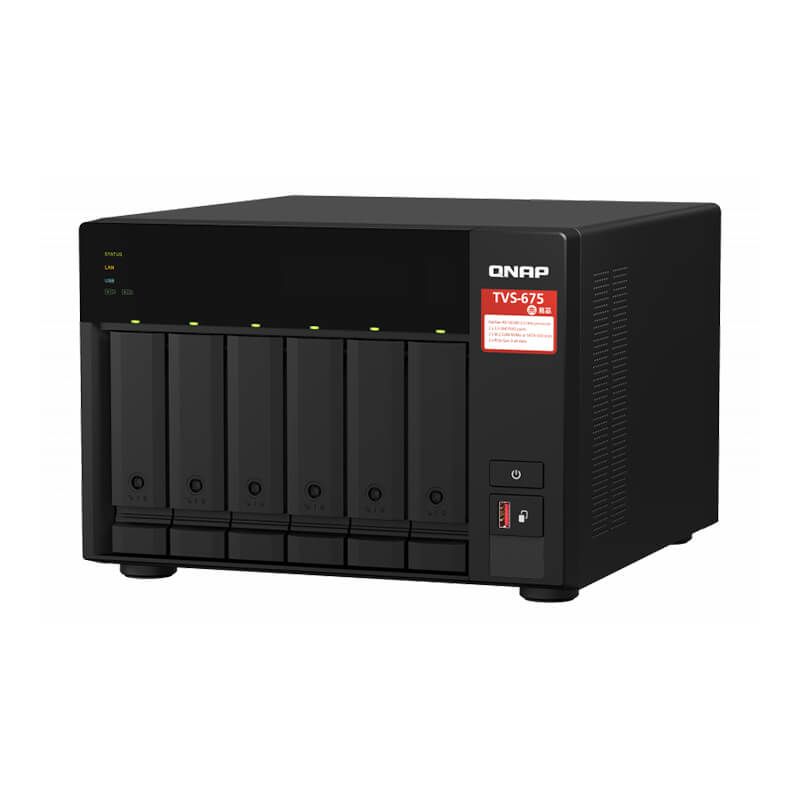

Quick Specs Figure 1 shows the appearance of TVS-675-8G.
Table 1 shows the Quick Specs.
| CUP | ZhaoXin KX-U6580 8-core 2.5GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | ZhaoXin C-960 Graphics |
| Floating Point Unit | √ |
| Encryption Engine | √(AES-NI) |
| Hardware-accelerated Transcoding | √ |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64GB (2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays:3.5-inch SATA hard disk drives2.5-inch SATA hard disk drives2.5-inch SATA solid state drives |
| Hot-swappable | √ |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 or SATA 6Gb/s slots |
| SSD Cache Acceleration Support | √ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | √ |
| Jumbo Frame | √ |
| PCIe Slot | 2Slot 1: PCIe Gen 3 x4Slot 2: PCIe Gen 3 x4 |
| USB 3.2 Gen 1 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-6, Status, LAN, USB, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 188.2 × 263.9 × 280.8 mm |
| Weight (Net) | 6.2kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |
| Power Supply Unit | 250W, 100-240V AC, 50/60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 41.897 W |
| Power Consumption: Operating Mode, Typical | 60.794 W |
| Fan | 3 x 80mm, 12VDC |
| Sound Level | 20.2 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot | √ |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2000 |
