-5%
U11Z02ACEQ
Model: U11Z02ACEQ eSpace U1900 Series Unified Gateways
Details: eSpace U1910 AC Integrated Host
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
U11Z02ACEQ Overview

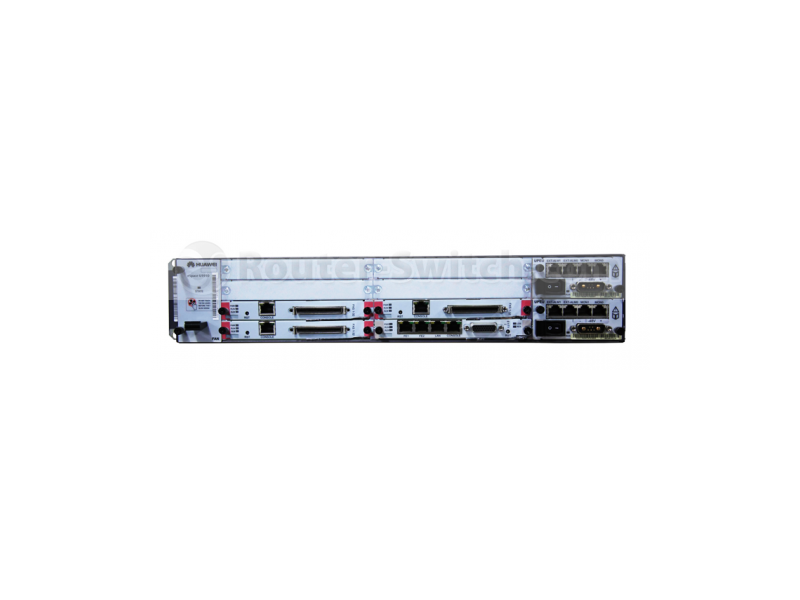

Quick Specs Figure 1 shows the appearance of U11Z02ACEQ.
Table 1 shows the Quick Specs.
| Maximum number of users | 100 (a maximum of 96 FXS ports for analog users or 100 SIP users) |
| Terminal type | Analog phones, IP phones, video phones and soft clients |
| Port | 24 FXO ports or 1 E1/T1 port |
| Trunk protocol | SS7, R2, PRI, QSIG, SIP |
| Codec | G.711A/μ, G.729a/b, and iLBC |
| Number of meeting participants | A maximum of 12 meeting participants which can be allocated to 4 meeting halls (each hall can support up to 12 participants by maximum) |
| Power supply | AC: 100 V to 240 V, 50 Hz/60 HzDC: –38.4 V to –60 V (typical value: –48 V) Redundancy: 1+1 backup |
| Maximum power consumption | 200 W (full configuration) |
| Dimensions (H * W * D) | Standard 19-inch 2 U subrack86.1 mm * 442 mm * 310 mm |
| Weight | 8 kg (full configuration) |
| Environment | Temperature |
| Relative humidity | 5% to 95% (without condensation) |
| Dustproof | Less than 180 mg/m³ dust in the air (Dustproof measures should be taken in the work environment) |
| System Reliability | 99.995% |
| Maintainability | Remote maintenance, automatic configuration, log collection, and Daylight Saving Time (DST) |
| Manageability | Centralized/remote equipment management, signaling tracing, resource management, alarm management, and quick deployment |
Get more information
Do you have any question about the U11Z02ACEQ?
Contact us now via Live Chat or sales@metafinitivetech.com
