U11Z11ACFM
Model: U111SCUB2 eSpace U1900 Series Unified Gateways
Details: U111SCUB2 eSpace U1900 Series Unified Gateways eSpace U1911 AC Integrated Frame
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
U11Z11ACFM Overview

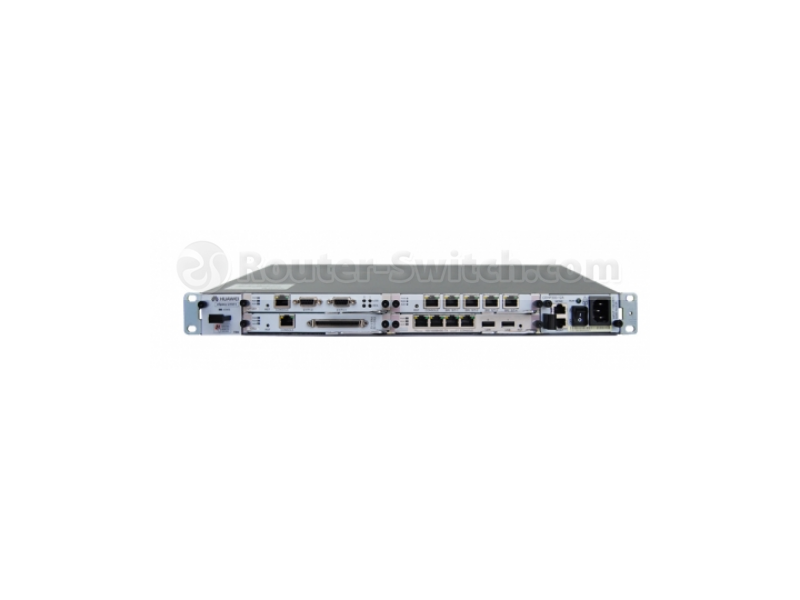

Quick Specs Figure 1 shows the appearance of U11Z11ACFM.
Table 1 shows the Quick Specs.
| Maximum number of users | 100 (a maximum of 100 SIP users or 64 FXS ports for analog users) |
| Terminal type | Analog phones, IP phones, video phones and soft clients |
| Port | 24 FXO ports, 6 E1/T1 ports, or 8 BRI ports |
| Trunk protocol | SS7, R2, PRI, QSIG, SIP, BRI |
| Codec | G.711a/μ, G.729, G.729a, G.729b, G.729ab, iLBC, G.722, G.722.1, G.722.2 |
| Number of meeting participants | A maximum of 60 meeting participants which can be allocated to 20 meeting halls (each hall can support up to 60 participants by maximum) |
| Built-in voice mail box | A maximum of 12 built-in voice mail channels concurrently Built-in 16G SD storage card |
| Power supply | AC: 100 V to 240 V, 50 Hz/60 HzDC: –38.4 V to –60 V (typical value: –48 V) |
| Maximum power consumption | 150 W (full configuration) |
| Dimensions (H * W * D) | Standard 19-inch 1 U subrack44 mm * 442 mm * 310 mm |
| Weight | 8 kg (full configuration) |
| Environment | Temperature |
| Relative humidity | 5% to 95% (without condensation) |
| Dustproof | Less than 180 mg/m³ dust in the air (Dustproof measures should be taken in the work environment) |
| System Reliability | 99.995% |
| Maintainability | Remote maintenance, automatic configuration, log collection, and Daylight Saving Time (DST) |
| Manageability | Centralized/remote equipment management, signaling tracing, resource management, alarm management, and quick deployment |
