U13Z01DCEQ
Model: U13Z01DCEQ eSpace U1900 Series Unified Gateways
Details: U13Z01DCEQ eSpace U1900 Series Unified Gateways eSpace U1930 DC Integrated Host
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
U13Z01DCEQ Overview

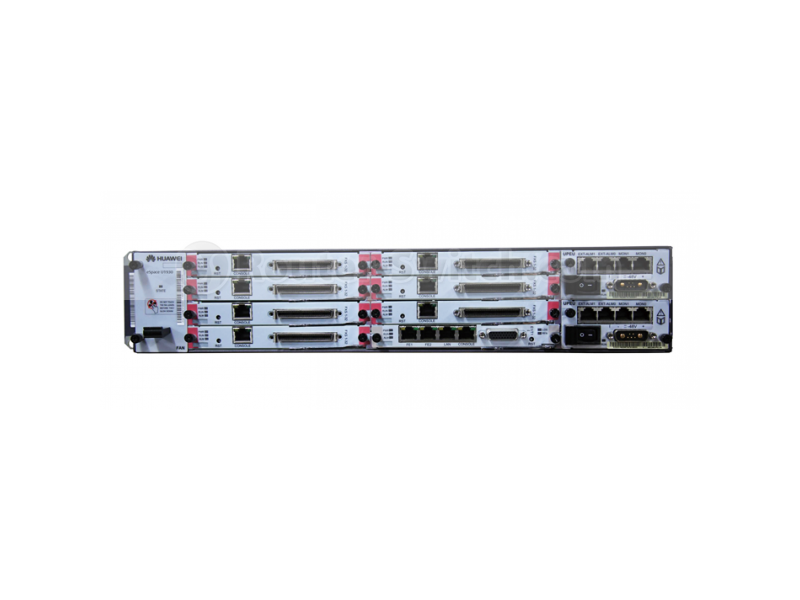

Quick Specs Figure 1 shows the appearance of U13Z01DCEQ.
Table 1 shows the Quick Specs.
| Maximum number of users | 300 (a maximum of 224 FXS ports for analog users or 300 SIP users) |
| Terminal type | Analog phones, IP phones, video phones and soft clients |
| Port | 60 FXO ports or 2 E1/T1 ports |
| Trunk protocol | SS7, R2, PRI, QSIG, and SIP |
| Codec | G.711A/μ, G.729a/b, and iLBC |
| Number of meeting participants | A maximum of 12 meeting participants which can be allocated to 4 meeting halls (each hall can support up to 12 participants by maximum) |
| Power Supply | AC: 100 V to 240 V, 50 Hz/60 HzDC: –38.4 V to –60 V (typical value: –48 V) Redundancy: 1+1 backup |
| Maximum power consumption | 220 W(full configuration) |
| Dimensions (H * W * D) | Standard 19-inch 2 U subrack86.1 mm * 442 mm * 310 mm |
| Weight | 10 kg (full configuration) |
| Environment | Temperature |
| Relative humidity | 5% to 95% (without condensation) |
| Dustproof | Less than 180 mg/m³ dust in the air. (Dustproof measures should be taken in the work environment) |
| System reliability | 99.995% |
| Maintainability | Remote maintenance, automatic configuration, log collection, and Daylight Saving Time (DST) |
| Manageability | Centralized/remote equipment management, signaling tracing, resource management, alarm management, and quick deployment |
