Model: U16Z03ACFM eSpace U1900 Series Unified Gateways
Details: U16Z03ACFM eSpace U1900 Series Unified Gateways eSpace U1960 AC Integrated Frame
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
U16Z03ACFM Overview

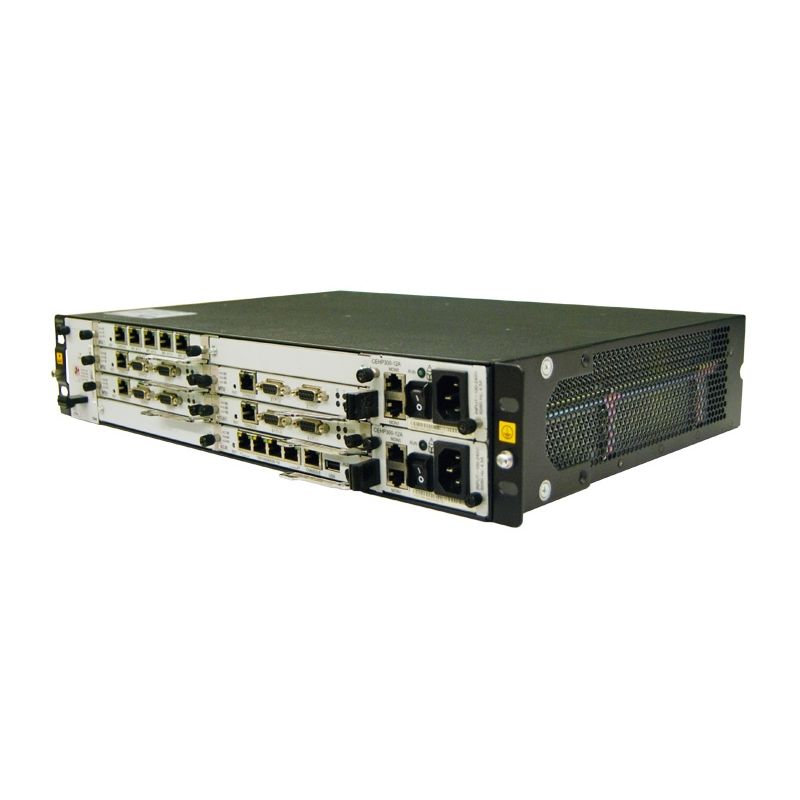

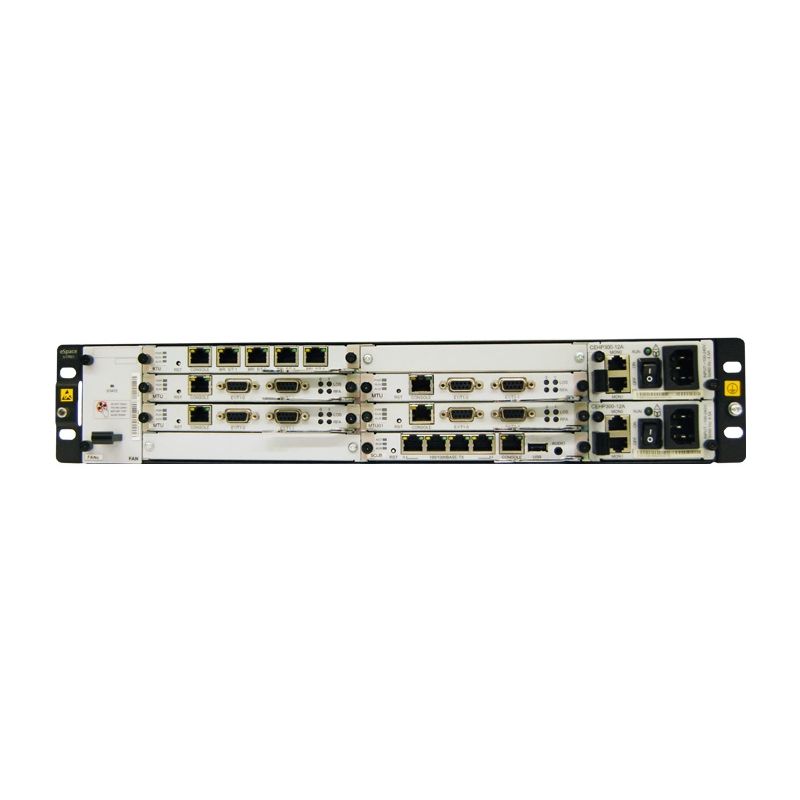

Quick Specs Figure 1 shows the appearance of U16Z03ACFM.
Table 1 shows the Quick Specs.
| Maximum number of users | 1,000(a maximum of 192 FXS ports for analog users or 1,000 SIP users) |
| Terminal type | Analog phones, IP phones, video phones and soft clients |
| Port | 72 FXO ports or 14 E1/T1 ports |
| Trunk protocol | SS7, R2, PRI, QSIG, SIP |
| Codec | G.711A/μ, G.729a/b/ab, iLBC, G.722/G.722.1/G.722.2 |
| Number of meeting participants | A maximum of 360 meeting participants which can be allocated to 120 meeting halls (each hall can support up to 60 participants by maximum) |
| Built-in voice mail(optional) | 30 channels concurrentlyBuilt-in 16G SD storage card |
| Power supply | AC: 100 V to 240 V, 50 Hz/60 HzDC: –38.4 V to –60 V (typical value: –48 V)Redundancy: 1+1 backup |
| Maximum power consumption | 220 W (full configuration) |
| Dimensions (H * W * D) | Standard 19-inch 2 U subrack86.1 mm * 442 mm * 310 mm |
| Weight | 10 kg (full configuration) |
| Environment | Temperature |
| Relative humidity | 5% to 95% (without condensation) |
| Dustproof | Less than 180 mg/m³ dust in the air (Dustproof measures should be taken in the work environment) |
| System Reliability | 99.995% |
| Maintainability | Remote maintenance, automatic configuration, log collection, and Daylight Saving Time (DST) |
| Manageability | Centralized/remote equipment management, signaling tracing, resource management, alarm management, and quick deployment |
