UAP-AC-LR
Model: UAP-AC-LR – Ubiquiti Ceiling Access Points Series
Details: Ubiquiti / UBNT Long Range Indoor Access Point, 1 Gigabit Ethernet, POE PD , Wi-Fi coverage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
SKU:
UAP-AC-LR
Categories: Ubiquiti Ceiling Access Points, Ubiquiti Wireless, Wireless
Description
UAP-AC-LR Overview

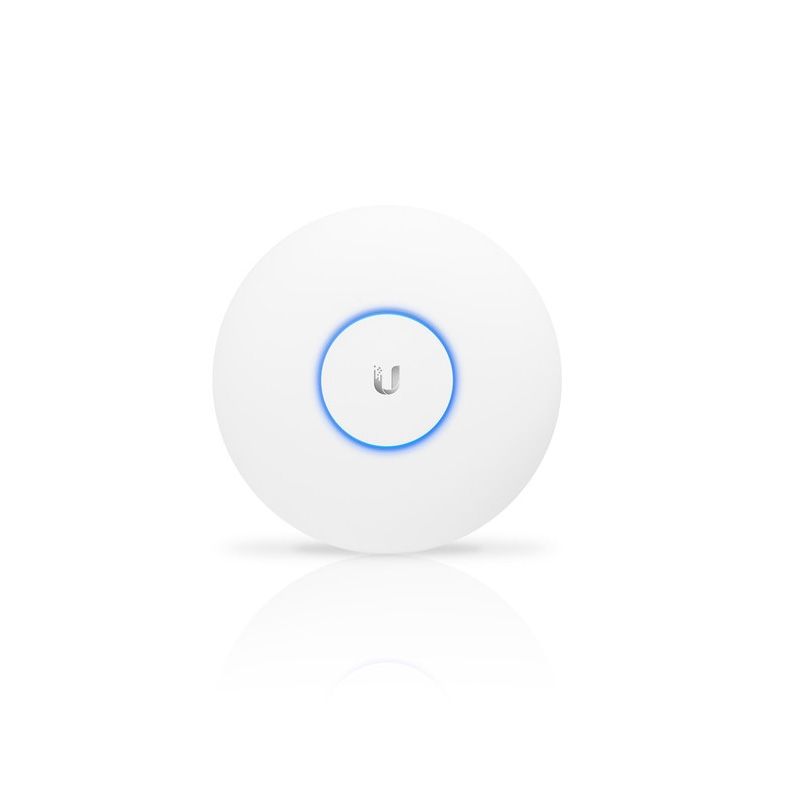

Quick Specs Figure 1 shows the appearance of UAP-AC-LR.
Table 1 shows the Quick Specs.
Dimensions | 175.7 X 175.7 X 43.2 MM (6.92 X 6.92 X 1.70″) |
Networking interface | (1) 10/100/1000 ETHERNET PORT |
Ports | NO |
Buttons | RESET |
Antennas | (1) DUAL-BAND ANTENNA, TRI-POLARITY, 2.4 GHZ: 3 DBI, 5 GHZ: 3 DBI |
Wi-fi standards | 802.11 A/B/G/N/AC |
Power method | PASSIVE POWER OVER ETHERNET (24V), (PAIRS 4, 5+; 7, 8 RETURN) |
Power supply | 24V, 0.5A GIGABIT POE ADAPTER |
Maximum power consumption | 6.5W |
Max tx power | 24 DBM |
Bssid | UP TO FOUR PER RADIO |
Power save | SUPPORTED |
Wireless security | WEP, WPA-PSK, WPA-ENTERPRISE (WPA/WPA2, TKIP/AES) |
Certifications | CE, FCC, IC |
Mounting | WALL/CEILING (KITS INCLUDED) |
Operating temperature | -10 TO 70° C (14 TO 158° F) |
Operating humidity | 5 TO 95% NONCONDENSING |
Vlan | 802.1Q |
Advanced qos | PER-USER RATE LIMITING |
Guest traffic isolation | SUPPORTED |
Wmm | VOICE, VIDEO, BEST EFFORT, AND BACKGROUND |
Concurrent clients | 200+ |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 MBPS |
802.11n | 6.5 MBPS TO 450 MBPS (MCS0 – MCS23, HT 20/40) |
802.11ac | 6.5 MBPS TO 867 MBPS (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
802.11b | 1, 2, 5.5, 11 MBPS |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 MBPS |
