UBNT USW-Pro-24-POE
Model: USW-Pro-24-POE Switch
Details: Layer 3, PoE switch with (24) GbE RJ45 ports, including (16) 802.3at PoE+ ports and (8) 802.3bt PoE++ ports, and (2) 10G SFP+ ports.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
UBNT USW-Pro-24-POE Overview

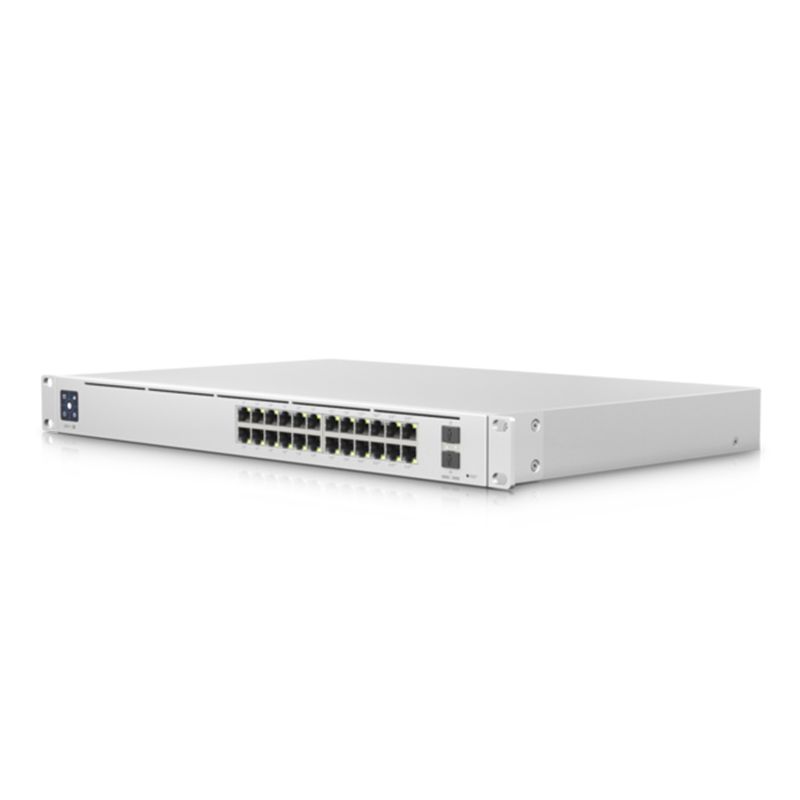

Quick Specs Figure 1 shows the appearance of UBNT USW-Pro-24-POE.
Table 1 shows the Quick Specs.
| Dimensions | 442.4 x 285.4 x 43.7 mm(17.42 x 11.24 x 1.72″) |
| Networking | (24) 10/100/1000 RJ45 Ports(2) 1/10G SFP+ Ethernet Ports |
| Management | Ethernet In-Band |
| Total Non-Blocking Throughput | 44 Gbps |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.472 Mpps |
| Universal Input | 100-240VAC/50-60 Hz |
| USP RPS DC Input | 52VDC, 7.69A; 11.5VDC, 2.61A |
| Power Supply | AC/DC, Internal, 450W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 50W |
| System | Status |
| RJ45 Data Ports | PoE; Speed/Link/Activity |
| SFP+ Data Ports | Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Total Available PoE | 400W |
| Ports 1-16 | POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-) |
| Ports 17-24 | 60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎 |
| 802.3at | 32W |
| 802.3bt | 64W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
