US-16-150W
Model: US-16-150W – Ubiquiti Unifi Switch 16 PoE 150W
Details: The US-16-150W delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
US-16-150W Overview

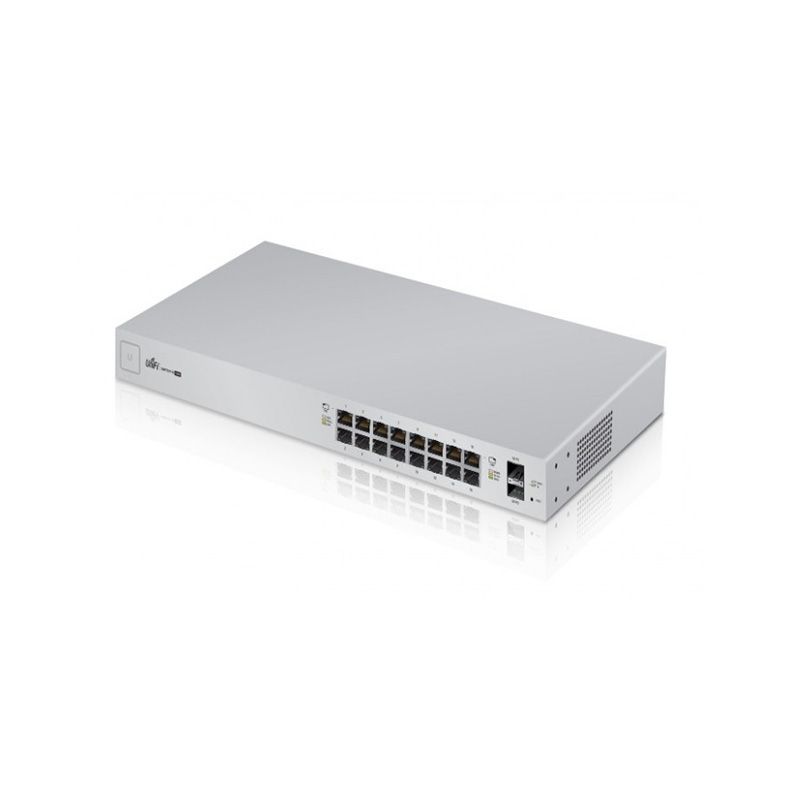

Quick Specs Figure 1 shows the appearance of US-16-150W.
Table 1 shows the Quick Specs.
| Dimensions | 443 x 43 x 221 mm (17.44 x 1.69 x 8.70″) |
| Networking Interfaces | (16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | Ethernet In-Band |
| Total Non-Blocking Throughput | 18 Gbps |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 16384 |
| Maximum Aggregations | 6 |
| Monitoring Sessions | 1 |
| Maximum VLANs | 255 |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150W DC |
| Max. Power Consumption | Including PoE Output |
| 150W | 28W |
| LEDs Per Port | RJ45 Data Ports |
| PoE, Speed/Link/Activity | Speed/Link/Activity |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
