-5%
US-24
Model: US-24 – Ubiquiti Enterprise Switches Series
Details: Ubiquiti / UBNT US-24 UniFi 24-Port Gigabit Compliant Managed Switch, Enterprise
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
US-24 Overview

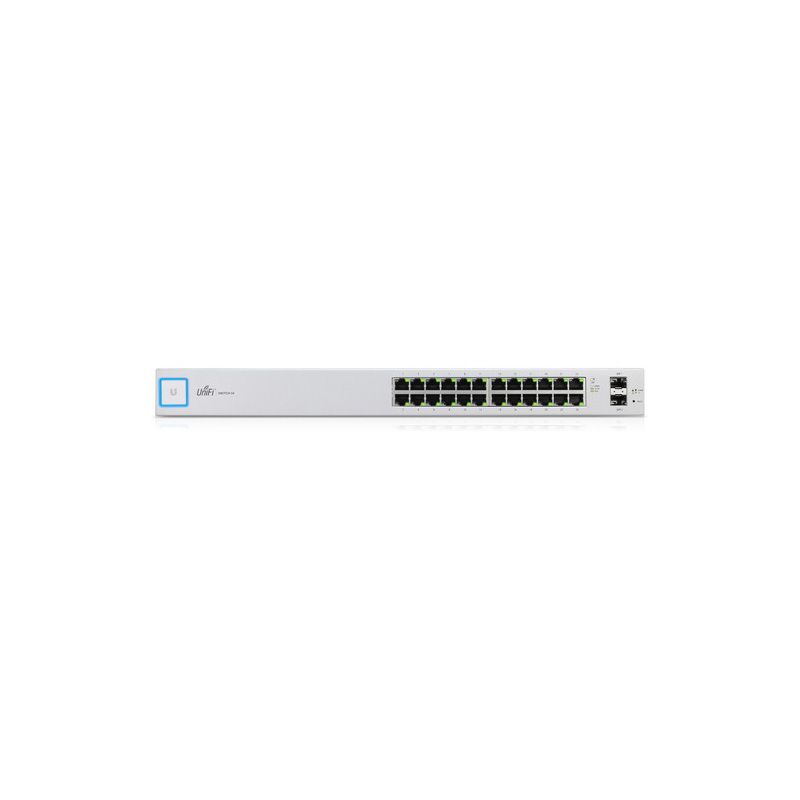

Quick Specs Figure 1 shows the appearance of US-24.
Table 1 shows the Quick Specs.
| Model | US-24 |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Networking Interfaces | 24 x 10/100/1000 Mbps Ethernet Ports |
| Fiber Interfaces | 2 x SFP Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 25W DC |
| Maximum Power Consumption | 25W |
| Rack-Mountable | Yes, 1U High |
| Operating Temperature | -5 to 40�� C (23 to 104�� F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Dimensions | 443 x 43 x 221 mm (17.44 x 1.69 x 8.70 inches) |
| Certifications | CE, FCC, IC |
| Management Software | UniFi Controller |
| Packet Forwarding Rate | 38.69 Mpps |
| PoE | No |
| Layer | 2 |
| Sound Level | Quiet |
| ESD/EMP Protection | Air: ��24 kV, Contact: ��24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
