US-8

Original price was: $118.15.Current price is: $112.24.

Model: US-8 – Ubiquiti Enterprise Switches Series
Details: Ubiquiti / UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: US-8 Categories: , ,
Description

US-8 Overview

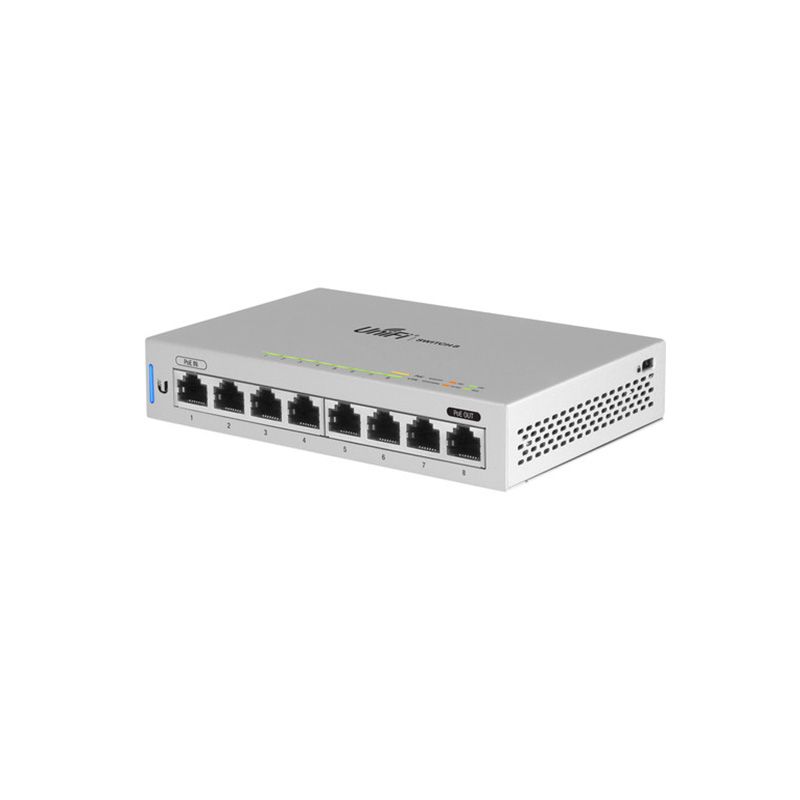

Quick Specs Figure 1 shows the appearance of US-8.

Table 1 shows the Quick Specs.

Dimensions 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″)
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports
PoE Mode 1: 48V (Pins 1, 2+; 3, 6-)
PoE Mode 2: Passive 48V (2-Pair Pins 4, 5+; 7, 😎
DC Input Mode: 48VDC (Pins 1, 2+; 3, 6-)
Power Method (1) DC 48V, Max. 1.25A(1) PoE Input, 802.3af/at (Pins 1, 2+; 3, 6-)
Power Supply External AC/DC Adapter: 48V, 0.5A
Max. Power Consumption 12W (Excluding PoE Output)
Max. PoE Wattage per Port PoE Mode 1: 12W @ 802.3atPoE Mode 2: 12W @ 48VDC Input Mode: 12W @ 48V
Passive PoE Voltage Range Depends on Power Source
Line Rate 8 Gbps, Non-Blocking
System Status
RJ45 Data Ports PoE; Link/Speed/Activity
ESD/EMP Protection ± 24kV Air, ± 24kV Contact
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 5 to 95% Noncondensing

Get more information
Do you have any question about the US-8?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

Not Available.
