-5%
US-8-60W
Model: US-8-60W – Ubiquiti Enterprise Switches Series
Details: Ubiquiti / UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
US-8-60W Overview

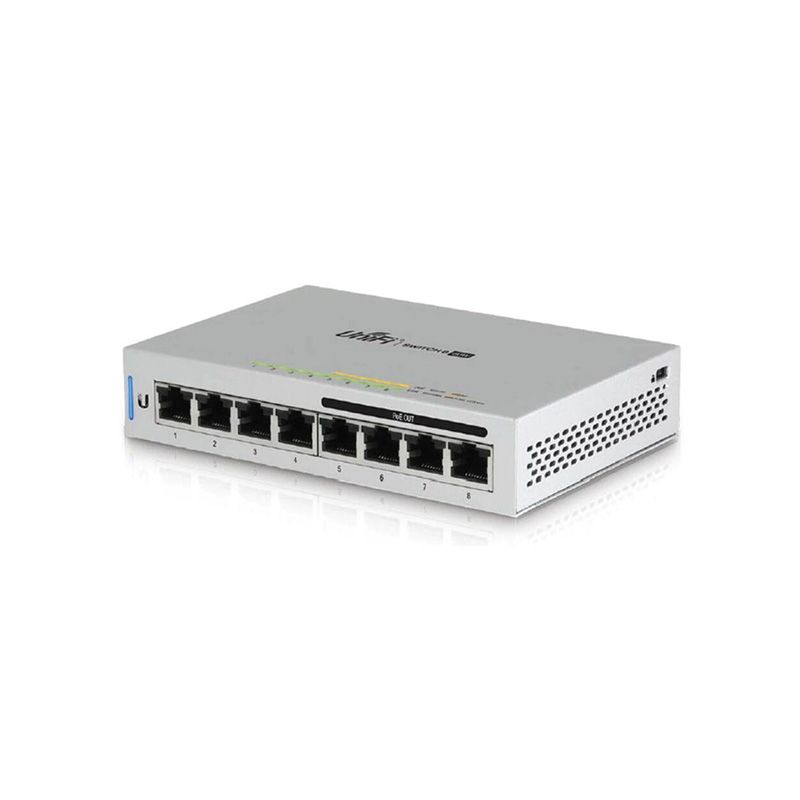

Quick Specs Figure 1 shows the appearance of US-8-60W.
Table 1 shows the Quick Specs.
| Dimensions | 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″) |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports |
| PoE Interfaces | (4) Ports 5, 6, 7, 8: IEEE 802.3af |
| Power Method | 48VDC, Max. 2A |
| Power Supply | External AC/DC Adapter: 48V, 1.25A |
| Max. Power Consumption | 12W (Excluding PoE Output) |
| Max. PoE Wattage per Port | 15.4W |
| PoE Output (Ports 5 to 8) | IEEE 802.3af 2-Pair (Pins 1, 2+; 3, 6-) |
| Line Rate | 8 Gbps, Non-Blocking |
| LEDsSystemRJ45 Data Ports | StatusPoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
