-5%
USG6000V
Model: USG6000V – Huawei USG6000V Virtual Service Gateway
Details: Huawei USG6000V Basic Software License(per vCPU, 1 vCPU indicates V1, 2 vCPUs indicate V2, 4 vCPUs indicate V4, 8 vCPUs indicate V8)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG6000V Overview

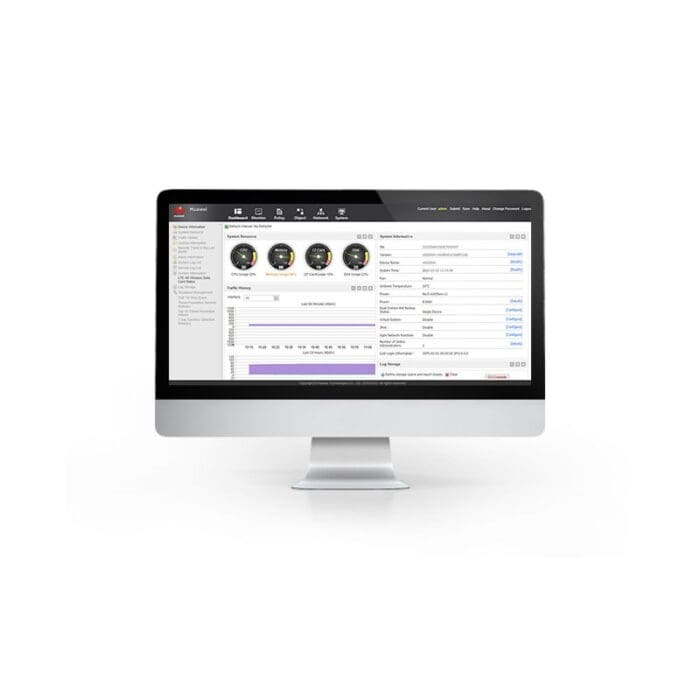

Quick Specs Figure 1 shows the appearance of USG6000V.
Table 1 shows the Quick Specs.
| Description | USG6000V Basic Software License(per vCPU, 1 vCPU indicates V1, 2 vCPUsindicate V2, 4 vCPUs indicate V4, 8 vCPUs indicate V8) |
| Model | USG6000V1 |
| Hypervisor | Xen 4.5 and aboveVMware ESXi 5.5 and aboveLinux KVM, kernel 2.6.32 and aboveHyper-V windows server 2012 and aboveHuawei FusionSphere 6.0 and above |
| vCPU2 | 1 |
| Memory (GB) | 2 GB |
| Storage(min/max) | 4 GB/2 TB |
| Interface number of vNICs(min/max) | 2/11 |
| [SR-IOV mode]4Firewallthroughput5(1518-byte) | 10 Gbit/s |
| [SR-IOV mode] Number of new connections per second | 15,000 |
| [SR-IOV mode] Maximumnumber of concurrentconnections | 500,000 |
| [vSwitch mode]4Firewallthroughput5(1518-byte) | 8 Gbit/s |
| vSwitch mode] Number of new connections per second | 15,000 |
| [vSwitch mode] Maximumnumber of concurrentconnections | 500,000 |
| [SR-IOV mode] IPSecthroughput5(AES, 1420-byte) | 1.5 Gbit/s |
| [vSwitch mode] IPSecthroughput5(AES, 1420-byte) | 1 Gbit/s |
| Maximumnumber of IPSecconnections | 1,000 |
| Maximum number of securitypolicies | 3,000 |
| Number of virtual firewalls | 20 |
| Integrated protection | Integrates traditional firewall, VPN, intrusion prevention, antivirus, bandwidth management, and anti-DdoS functions |
| Application identification andcontrol | Identifies more than 6000 applications with the access control granularity to application functions, for example, distinguishing between WeChat text and voice. The USG6000V combines application identification with intrusion detection, antivirus, and data filtering, improving detection performance and accuracy. |
| Intrusion prevention and web attack defense | Accurately detects and defends against vulnerability-specific attacks based on up-to-date threat information. The USG6000V can defend against web-specific attacks, including SQL injection and XSS attacks. |
| Antivirus | Updates the antivirus signature database every day. The USG6000V can rapidly detect more than 5,000,000 types of viruses based on the signature database |
| Bandwidth management andQoS optimization | Provides per-user or per-IP bandwidth management based on application identification, ensuring network quality for key services and users. The management and control can be implemented by maximum bandwidth, guaranteed bandwidth, application-specific PBR, and changing the forwarding priority of application traffic. |
| Load balancing | Layer-7 service and link load balancing and fully uses computing resources based on abundant load balancing algorithms |
| Intelligent uplinkselection | Supports service-specific PBR and intelligently selects the optimal link based on multiple types of load balancing algorithms (such as the bandwidth ratio and link health status) in multi-ISP scenarios. |
| VPN encryption | Provides various reliable VPN features, such as IPsec VPN, L2TP VPN, MPLSÂ VPN, and GRE. |
| Anti-DDoS | Implements anti-DDoS to defense against over 10 types of DDoS attacks, such as SYN flood and UDP flood. |
| User authentication | Supports multiple authentication methods, including local, RADIUS, HWTACACS, SecureID, AD, CA, LDAP, and Endpoint Security authentication. |
| Securityvirtualization | Supports virtualization of multiple types of security services, including firewall, intrusion prevention, antivirus, and VPN services. Users can enjoy isolated and tailor-made management on one physical device. |
| Diversified reports | Provides visualized and multi-dimensional report display by user, application, content, time, traffic, threat, or URL |
| Routing | Supports IPv4 static routes, policy-based routing, routing policies, multicast, RIP, OSPF, BGP, and IS-IS.Supports IPv6 static routes, policy-based routing, routing policies, RIPng, OSPFv3, BGP4+, and IPv6 IS-IS. |
| HA | Supports the active/active and active/standby working modes. |
| Virtual network | Supports VXLAN Layer-3 gateways and Agile Controller VM awareness. |
| Platform compatibility | Supports mainstream virtualization platforms, including VMware, Linux KVM, XEN, Hyper-V and Huawei FusionSphere |
| Software package format | Supports software packages in .vmdk, .iso, .qcow2, and .ovf formats for simple deployment. |
Get more information
Do you have any question about the USG6000V?
Contact us now via Live Chat or sales@metafinitivetech.com
