-5%
USG6306
Model: USG6306 – Huawei USG6300 Next-Generation Firewall
Details: Huawei USG6306 Firewall AC Host(4GE(RJ45)+2GE Combo,4GB Memory,1 AC Power)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG6306 Overview

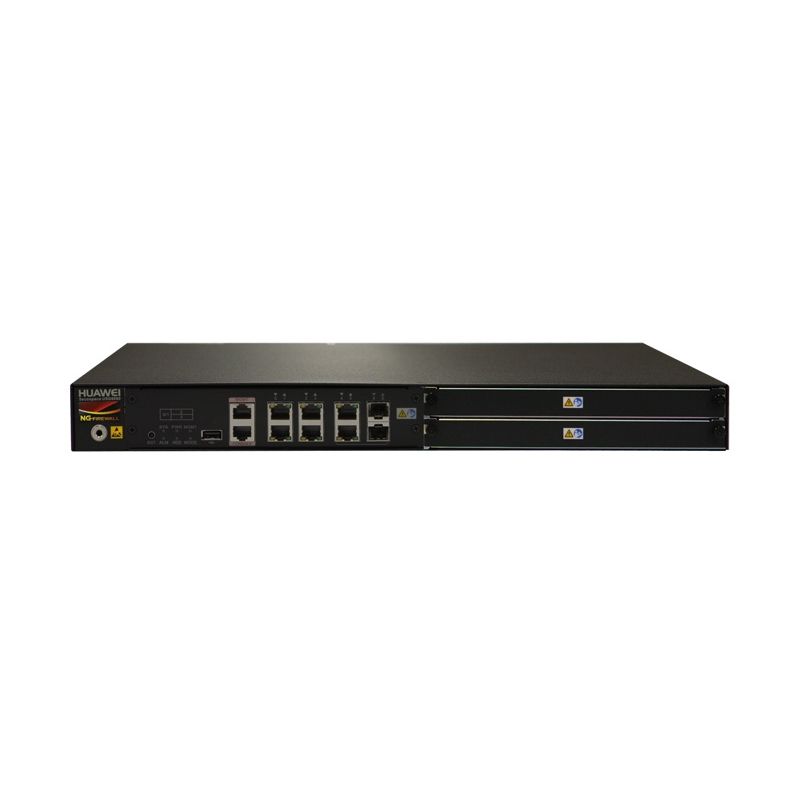

Quick Specs Figure 1 shows the appearance of USG6306.
Table 1 shows the Quick Specs.
| Dimensions (W x D x H) | 442 mm x 421 mm x 44.4 mm (1 U) |
| Software Version | V500R001C30 and later & V100R001C30 and later |
| Hard disk | Optional hot-swappable 300GB or 600GB 2.5-inch SAS hard disk. The hard disk unit is hot-swappable, but the hard disk combination is not hot-swappable. |
| SPUB (the service engine) | Not supported |
| 4G LTE Data Card | Supported |
| Out-of-band management port | 1 (RJ45) |
| Console port | 1 (RJ45) |
| USB 2.0 port | 1 |
| Mandatory service ports | 2 GE Combo ports, 4 10/100/1000M autosensing Ethernet electrical ports |
| Expansion slot | 2×WSIC |
| Types of expansion cards | 8GE-WSIC-8×1GE RJ45 interface card, 2XG8GE-WSIC-8×1GE RJ45 card+2×10GE SFP+ card, 8GEF-WSIC-8×1GE SFP card, 4GE-BYPASS-WSIC-2×electrical links Bypass card |
| Short-term operating temperature | Without hard disk: -5℃ to 55℃/With hard disk(s): 5℃ to 40℃ |
| Long-term operating temperature | Without hard disk: 0℃ to 45℃/With hard disk(s): 5℃ to 40℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating relative humidity | Without hard disk: 5% RH to 95% RH, non-condensing/With hard disk(s): 5% RH to 90% RH, non-condensing |
| Storage relative humidity | Without hard disk: 5% RH to 95% RH, non-condensing/With hard disk(s): 5% RH to 90% RH, non-condensing |
| Altitude | Without hard disk：5000 m/With hard disk：3000 m |
