USG6320-BDL-AC
Model: USG6320-BDL-AC 02358678 Huawei USG6300 Next-Generation Firewall
Details: USG6320 AC Host(8GE(RJ45),2GB Memory,with IPS-AV-URL Function Group Update Service Subscribe 12 Months)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG6320-BDL-AC Overview

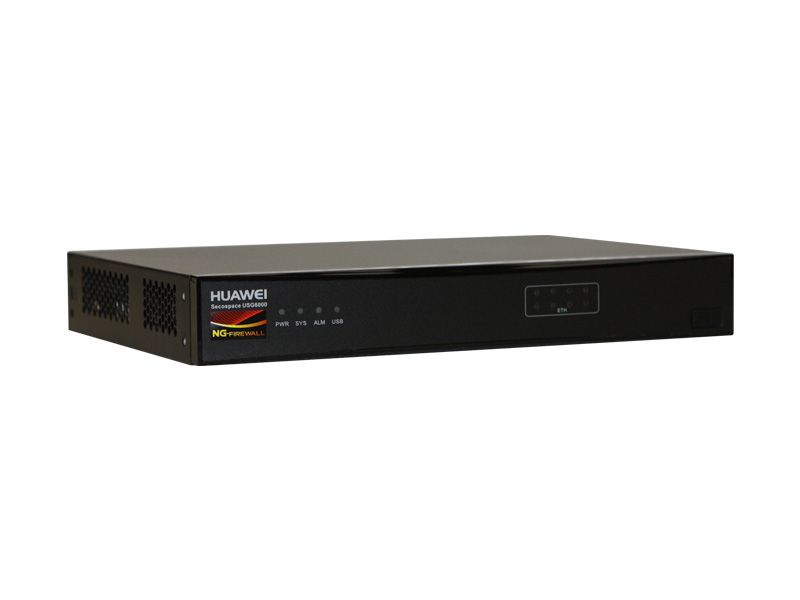

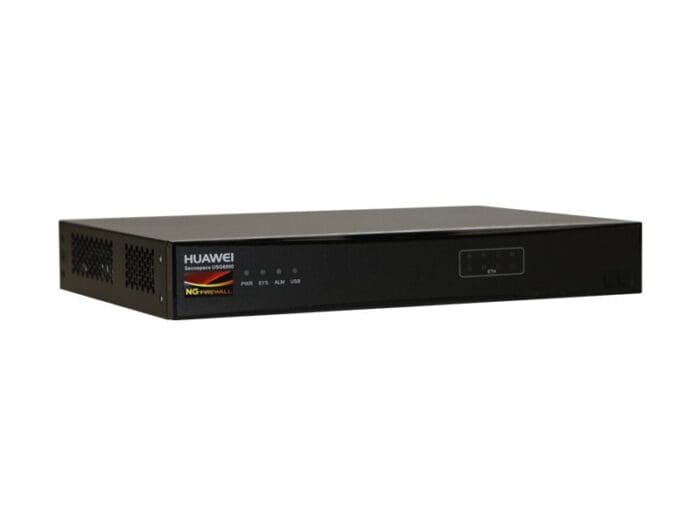

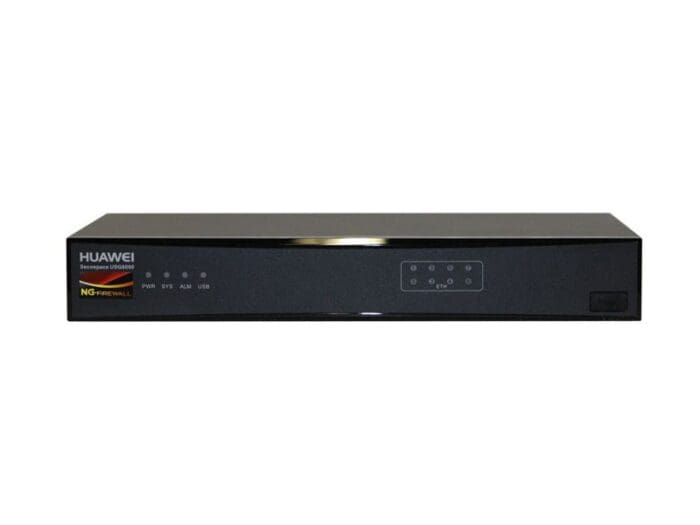

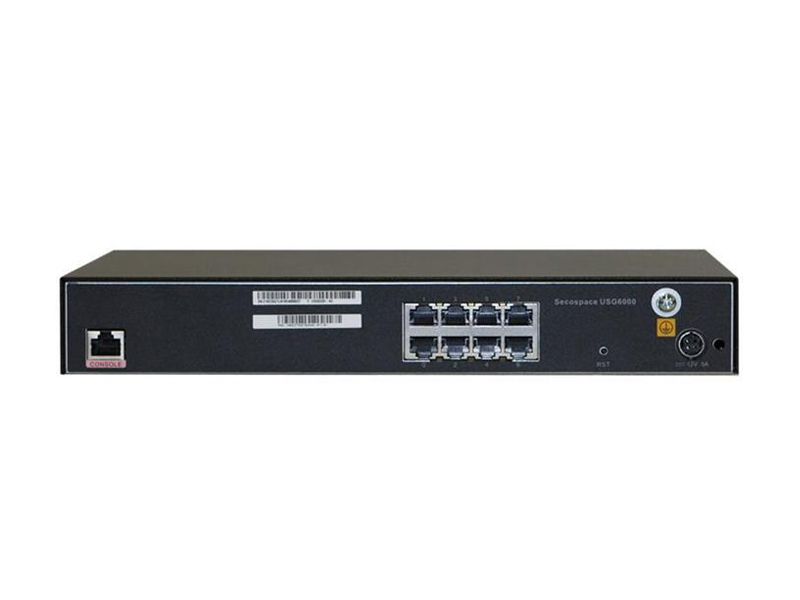

Quick Specs Figure 1 shows the appearance of USG6320-BDL-AC.
Table 1 shows the Quick Specs.
| Type | USG6320 AC Host (8 GE (RJ45), 2 GB Memory, with IPS-AV-URL Function Group Update Service Subscribe 12 Months) |
| IPv4 Firewall Throughput1Â (1,518/512/64-byte , UDP ) | 2 Gbit/s, 2 Gbit/s, 0.4 Gbit/s |
| IPv6 Firewall Throughput1Â (1,518/512/84-byte , UDP) | 2 Gbit/s, 2 Gbit/s, 0.4 Gbit/s |
| Firewall Throughput (packets per second) | 0.6 Mpps |
| Firewall Latency (64-byte, UDP) | 35 µs |
| FW + SA*Â Throughput2 | 1.2 Gbit/s |
| FW + SA + IPS Throughput2 | 700 Mbit/s |
| FW + SA + Antivirus Throughput2 | 700 Mbit/s |
| FW + SA + IPS + Antivirus + URL Throughput2 | 500 Mbit/s |
| FW+SA+IPS+Antivirus Throughput (real world)3 | 400 Mbit/s |
| Concurrent Sessions (HTTP1.1)1 | 500,000 |
| New Sessions/Second (HTTP1.1)1 | 20,000 |
| IPsec VPN Throughput1Â (AES-128 + SHA1, 1,420-byte) | 600 Mbit/s |
| Maximum IPsec VPN Tunnels (GW to GW) | 2,000 |
| Maximum IPsec VPN Tunnels (client to GW) | 2,000 |
| SSL Inspection Throughput4 | 15 Mbit/s |
| SSL VPN Throughput5 | 40 Mbit/s |
| Concurrent SSL VPN Users (default/maximum) | 100/200 |
| Security Policies (maximum) | 3,000 |
| Virtual Firewalls (default/maximum) | 10/20 |
| High Availability Configurations | Active/Active, Active/ Standby |
| URL Filtering: URLs | Can access a database of over 120 million URLs in the cloud |
| Third-Party and Open-Source Ecosystem6 | Open APIs for integration with third-party products through RESTCONF and NETCONF interfacesOther third-party management software based on SNMP, SSH, and syslogCollaboration with third-party tools, such as FireMon |
| Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and LogCenter |
| VLANs (maximum) | 4,094 |
| Virtual Interfaces (maximum) | 1,024 |
| Dimensions (H x W x D) | 44.5 mm x 300 mm x 220 mm |
| Form Factor/Height | Desktop |
| Fixed Interfaces | 8 x GE (RJ45) |
| USB 2.0 Port | Supported |
| 4G LTE | The USB port houses a 4G LTE data card |
| MTBF | 19.06 years |
| Weight (full configuration) | 1.58 kg |
| Power Consumption (average/maximum) | 23.2W/28.5W |
| Heat Dissipation | 97 BTU/h |
| Noise | 48 dBA |
| Power Supplies | External Power Adapter, 36W |
| AC Power Supply | 100V to 240V, 50 Hz/60 Hz |
| Operating Environment (temperature/humidity) | Temperature: 0°C to 45°C Humidity: 5% to 95%, non-condensing |
| Non-operating Environment | Temperature: -40°C to 70°C Humidity: 5% to 95%, non-condensing |
| Operating Altitude (maximum) | 5,000 meters |
| Non-operating Altitude (maximum) | 5,000 meters |
| Software | ICSA Labs: Firewall, IPS, IPsec, and SSL VPNCC: EAL4+ |
| Hardware | CB, CCC, CE-SDOC, ROHS, REACH & WEEE (EU), RCM, ETL, FCC & IC, VCCI, and BSMI (USG6320) |
| Regulatory Compliance | Products comply with CE markings per directives 2014/30/EU and 2014/35/EU |
| Safety | UL 60950-1CSA-C22.2 No. 60950-1EN 60950-1IEC 60950-1GB4943.1 |
| EMC: Emissions | AS/NZS CISPR 22CISPR 22 Class BEN 55022 Class BETSI EN 300 386ETSI EN 301 489 (USG6305-W/6310S-W/6310S-WL-OVS)IEC 61000-6-3/EN 61000-6-3IEC 61000-6-4/EN 61000-6-4IEC 61000-3-2/EN 61000-3-2IEC 61000-3-3/EN 61000-3-3FCC CFR47 Part 15 Subpart B Class BICES-003 Class BVCCI V-3 Class BCNS 13438 Class B (USG6320)GB9254 Class B |
| EMC: Immunity | EN 55024CISPR 24ETSI EN 300 386ETSI EN 301 489 (USG6305-W/6310S-W/6310S-WL-OVS)IEC 61000-6-1/EN 61000-6-1IEC 61000-6-2/EN 61000-6-2CNS 13438 Class B (USG6320)YD/T993 |
