-5%
USG6350-AC
Model: USG6350-AC 02359455 Huawei USG6300 Next-Generation Firewall
Details: USG6350 AC Host(4GE(RJ45)+2GE Combo,4GB Memory,1 AC Power)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG6350-AC Overview

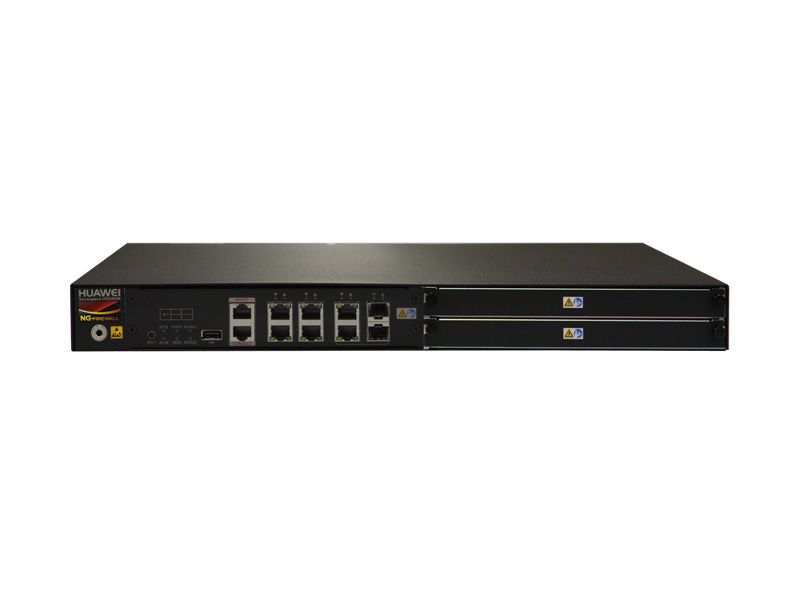

Quick Specs Figure 1 shows the appearance of USG6350-AC.
Table 1 shows the Quick Specs.
| Description | USG6350 AC Host(4GE(RJ45)+2GE Combo,4GB Memory,1 AC Power) |
| IPv4 Firewall Throughput1Â (1,518/512/64-byte, UDP) | 2 Gbit/s, 2 Gbit/s, 0.4 Gbit/s |
| IPv6 Firewall Throughput1Â (1,518/512/84-byte, UDP) | 2 Gbit/s, 2 Gbit/s, 0.5 Gbit/s |
| Firewall Throughput (packets per second) | 0.6 Mpps |
| Firewall Latency (64-byte, UDP) | 40 µs |
| FW + SA*Â Throughput2 | 1.2 Gbit/s |
| FW + SA + IPS Throughput2 | 950 Mbit/s |
| FW + SA + Antivirus Throughput2 | 950 Mbit/s |
| FW + SA + IPS + Antivirus + URL Throughput2 | 400 Mbit/s |
| FW + SA + IPS + Antivirus Throughput (real world)3 | 350 Mbit/s |
| Concurrent Sessions (HTTP1.1)1 | 2,000,000 |
| New Sessions/Second (HTTP1.1)1 | 30,000 |
| IPsec VPN Throughput1Â (AES-128 + SHA1, 1,420-byte) | 800 Mbit/s |
| Maximum IPsec VPN Tunnels (GW to GW) | 4,000 |
| Maximum IPsec VPN Tunnels (client to GW) | 4,000 |
| SSL Inspection Throughput4 | 16 Mbit/s |
| SSL VPN Throughput5 | 50 Mbit/s |
| Concurrent SSL VPN Users (default/maximum) | 100/500 |
| Security Policies (maximum) | 15,000 |
| Virtual Firewalls (default/maximum) | 10/50 |
| URL Filtering: Categories | More than 130 |
| URL Filtering: URLs | Can access a database of over 120 million URLs in the cloud |
| Third-Party and Open-Source Ecosystem6 | Open APIs for integration with third-party products through RESTCONF and NETCONF interfacesOther third-party management software based on SNMP, SSH, and syslogCollaboration with third-party tools, such as FireMonCollaboration with Anti-APT solution |
| Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and LogCenter |
| VLANs (maximum) | 4,094 |
| Virtual Interfaces (maximum) | 1,024 |
| High Availability Configurations | Active/Active, Active/Standby |
| Dimensions (H x W x D) | 44.4 mm x 442 mm x 421 mm |
| Form Factor/Height | 1U |
| Fixed Interfaces | 4 x GE (RJ45) + 2 x GE (Combo) |
| USB 2.0 Port | Supported |
| Expansion Slot | 2WSIC* |
| Expansion I/O | WSIC: 2 x 10 GE (SFP+) + 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), and 4 x GE (RJ45) BYPASS |
| Maximum Number of Interfaces | 22 x GE (RJ45) + 4 x 10 GE (SFP+) or 18 x GE (SFP) + 4 x GE (RJ45) |
| MTBF | 11.58 years |
| Weight (full configuration) | 7.9 kg |
| Local Storage | Optional. Supports a 300 GB or 600 GB hard disk (the hard disk is hot-swappable, but the hard disk card is not) |
| AC Power Supply | 100V to 240V, 50 Hz/60 Hz |
| Power Consumption (average/maximum) | 30.7W/107.83W |
| Heat Dissipation | 368 BTU/h |
| Power Supplies | Single 150W AC power supply; optional 170W AC power supply |
| Operating Environment (temperature/humidity) | Temperature: 0°C to 45°C (without optional HDD)5°C to 40°C (with optional HDD)Humidity: 5% to 95% (without optional HDD), non-condensing5% to 90% (with optional HDD), non-condensing |
| Non-operating Environment | Temperature: -40°C to 70°CHumidity: 5% to 95% (without optional HDD), non-condensing;5% to 90% (with optional HDD), non-condensing |
| Operating Altitude (maximum) | 5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
| Non-operating Altitude (maximum) | 5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
| Noise | 54.1 dBA |
| Regulatory Compliance | Products comply with CE markings per directives 2014/30/EU and 2014/35/EU |
| Safety | UL 60950-1CSA-C22.2 No. 60950-1EN 60950-1IEC 60950-1 |
| EMC: Emissions | AS/NZS CISPR 22CISPR 22 Class AEN 55022 Class AETSI EN 300 386IEC 61000-6-4/EN 61000-6-4IEC 61000-3-2/EN 61000-3-2IEC 61000-3-3/EN 61000-3-3FCC CFR47 Part 15 Subpart B Class AICES-003 Class AVCCI V-3 Class ACNS 13438 Class A |
| EMC: Immunity | EN 55024CISPR 24ETSI EN 300 386IEC 61000-6-2/EN 61000-6-2CNS 13438 Class A |
