-5%
USG6360-BDL-AC
Model: USG6360-BDL-AC 02359514 Huawei USG6300 Next-Generation Firewall
Details: USG6360 AC Host(4GE(RJ45)+2GE Combo,4GB Memory,1 AC Power,with IPS-AV-URL Function Group Update Service Subscribe 12 Months)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG6360-BDL-AC Overview

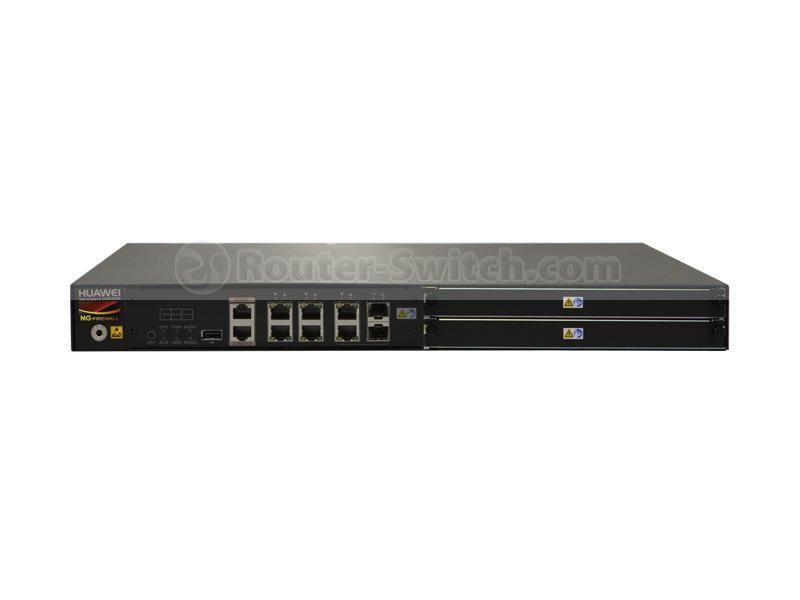

Quick Specs Figure 1 shows the appearance of USG6360-BDL-AC.
Table 1 shows the Quick Specs.
| Dimensions (H x W x D) | 44.4 mm x 442 mm x 421 mm |
| Form Factor/Height | 1U |
| Fixed Interfaces | 4 x GE (RJ45) + 2 x GE (Combo) |
| USB 2.0 Port | Supported |
| Expansion Slot | 2WSIC* |
| Expansion I/O | WSIC: 2 x 10 GE (SFP+) + 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), and 4 x GE (RJ45) BYPASS |
| Maximum Number of Interfaces | 22 x GE (RJ45) + 4 x 10 GE (SFP+) or 18 x GE (SFP) + 4 x GE (RJ45) |
| MTBF | 11.58 years |
| Weight (full configuration) | 7.9 kg |
| Local Storage | Optional. Supports a 300 GB or 600 GB hard disk (the hard disk is hot-swappable, but the hard disk card is not) |
| AC Power Supply | 100V to 240V, 50 Hz/60 Hz |
| Power Consumption (average/maximum) | 30.7W/107.83W |
| Heat Dissipation | 368 BTU/h |
| Power Supplies | Single 150W AC power supply; optional 170W AC power supply |
| Operating Environment (temperature/humidity) | Temperature: 0°C to 45°C (without optional HDD)5°C to 40°C (with optional HDD)Humidity: 5% to 95% (without optional HDD), non-condensing5% to 90% (with optional HDD), non-condensing |
| Non-operating Environment | Temperature: -40°C to 70°CHumidity: 5% to 95% (without optional HDD), non-condensing;5% to 90% (with optional HDD), non-condensing |
| Operating Altitude (maximum) | 5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
| Non-operating Altitude (maximum) | 5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
| Noise | 54.1 dBA |
Get more information
Do you have any question about the USG6360-BDL-AC?
Contact us now via Live Chat or sales@metafinitivetech.com
