USG6370-AC
Model: USG6370-AC 0235G7LL Huawei USG6300 Next-Generation Firewall
Details: USG6370 AC Host(8GE(RJ45)+4GE(SFP),4GB Memory,1 AC Power)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG6370-AC Overview

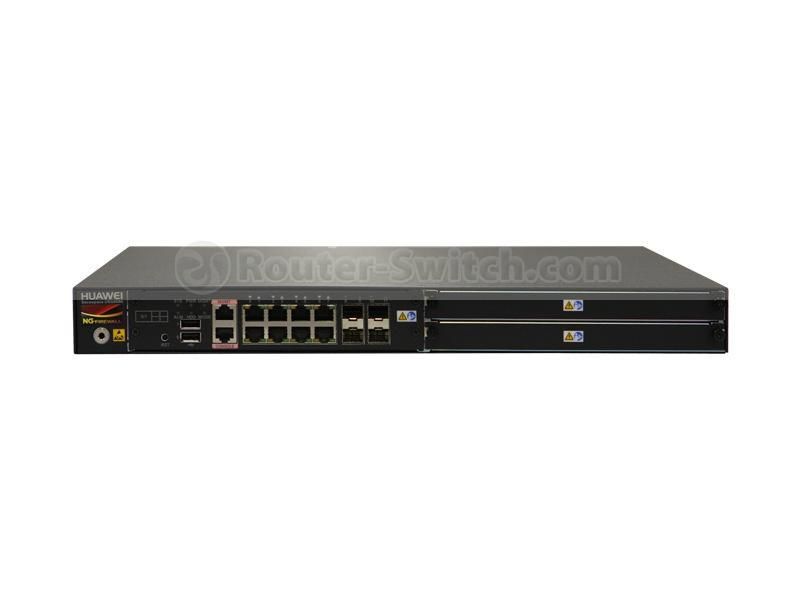

Quick Specs Figure 1 shows the appearance of USG6370-AC.
Table 1 shows the Quick Specs.
| Description | USG6370 AC Host (8GE (RJ45) +4GE (SFP), 4GB Memory, 1 AC Power) |
| IPv4 Firewall Throughput1(1,518/512/64-byte, UDP) | 4/4/1.2 Gbit/s |
| IPv6 Firewall Throughput1(1,518/512/84-byte, UDP) | 4/4/1.6 Gbit/s |
| Firewall Throughput (packets per second) | 1.8 Mpps |
| Firewall Latency (64-byte, UDP) | 25 µs |
| FW + SA*Â Throughput2 | 4 Gbit/s |
| FW + SA + IPS Throughput2 | 2 Gbit/s |
| FW + SA + Antivirus Throughput2 | 2 Gbit/s |
| FW + SA + IPS + Antivirus + URL Throughput2 | 1.4 Gbit/s |
| FW + SA + IPS + Antivirus Throughput (real world)3 | 1 Gbit/s |
| Concurrent Sessions (HTTP1.1)1 | 4,000,000 |
| New Sessions/Second (HTTP1.1)1 | 60,000 |
| IPsec VPN Throughput1Â (AES-128 + SHA1, 1,420-byte) | 3 Gbit/s |
| Maximum IPsec VPN Tunnels (GW to GW) | 4,000 |
| Maximum IPsec VPN Tunnels (client to GW) | 4,000 |
| SSL Inspection Throughput4 | 90 Mbit/s |
| SSL VPN Throughput5 | 200 Mbit/s |
| Concurrent SSL VPN Users (default/maximum) | 100/1,000 |
| Security Policies (maximum) | 15,000 |
| Virtual Firewalls (default/maximum) | 10/100 |
| URL Filtering: Categories | More than 130 |
| URL Filtering: URLs | Can access a database of over 120 million URLs in the cloud |
| Third-Party and Open-Source Ecosystem6 | Open APIs for integration with third-party products through RESTCONF and NETCONF interfacesOther third-party management software based on SNMP, SSH, and syslogCollaboration with third-party tools, such as FireMonCollaboration with Anti-APT solution |
| Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and LogCenter |
| VLANs (maximum) | 4,094 |
| Virtual Interfaces (maximum) | 1,024 |
| High Availability Configurations | Active/Active, Active/Standby |
| Dimensions (H x W x D) | 44.4 mm x 442 mm x 421 mm |
| Form Factor/Height | 1U |
| Fixed Interfaces | 8 x GE (RJ45) + 4 x GE (SFP) |
| USB 2.0 Port | Supported |
| Expansion Slot | 2 WSIC* |
| Expansion I/O | WSIC: 2 x 10 GE (SFP+) + 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), 4 x GE (RJ45) BYPASS |
| Maximum Number of Interfaces | 24 x GE (RJ45) + 4 x GE (SFP) + 4 x 10 GE (SFP+) or 20 x GE (SFP) + 8 × GE (RJ45) |
| MTBF | 11.96 years |
| Weight (full configuration) | 8.6 kg |
| Local Storage | Optional: Supports a 300 GB or 600 GB hard disk (the hard disk is hot-swappable, but the hard disk card is not) |
| AC Power Supply | 100V to 240V, 50 Hz/60 Hz |
| Power Consumption (average/maximum) | 56.13W/133.74W |
| Heat Dissipation | 456 BTU/h |
| Power Supplies | Single 170W AC power supply; optional dual AC power supplies |
| Operating Environment (temperature/humidity) | Temperature: 0°C to 45°C (without optional HDD);5°C to 40°C (with optional HDD) Humidity: 5% to 95% (without optional HDD), non-condensing;5% to 90% (with optional HDD), non-condensing |
| Non-operating Environment | Temperature: –40°C to 70°CHumidity: 5% to 95% (without optional HDD), non-condensing;5% to 90% (with optional HDD), non-condensing |
| Operating Altitude (maximum) | 5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
| Non-operating Altitude (maximum) | 5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
| Noise | 63 dBA |
| Software | ICSA Labs: Firewall, IPS, IPsec, and SSL VPN CC: EAL4+ |
| Hardware | CB, CE-SDOC, ROHS, REACH & WEEE (EU), RCM, ETL, FCC & IC, VCCI, and BSMI |
| Regulatory Compliance | Products comply with CE markings per directives 2014/30/EU and 2014/35/EU |
| Safety | UL 60950-1CSA-C22.2 No. 60950-1EN 60950-1IEC 60950-1 |
| EMC: Emissions | EN 55022 Class AETSI EN 300 386IEC 61000-3-2/EN 61000-3-2IEC 61000-3-3/EN 61000-3-3FCC CFR47 Part 15 Subpart B Class AICES-003 Class AVCCI V-3 Class ACNS 13438 Class A |
| EMC: Immunity | EN 55024ETSI EN 300 386CNS 13438 Class A |
