-5%
USG6530E-AC
Model: USG6530E-AC – Huawei HiSecEngine USG6500E Series Next-Generation Firewalls (Desktop)
Details: USG6530E AC Host(10*GE RJ45+2*10GE SFP+,with the AC/DC adapter)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG6530E-AC Overview

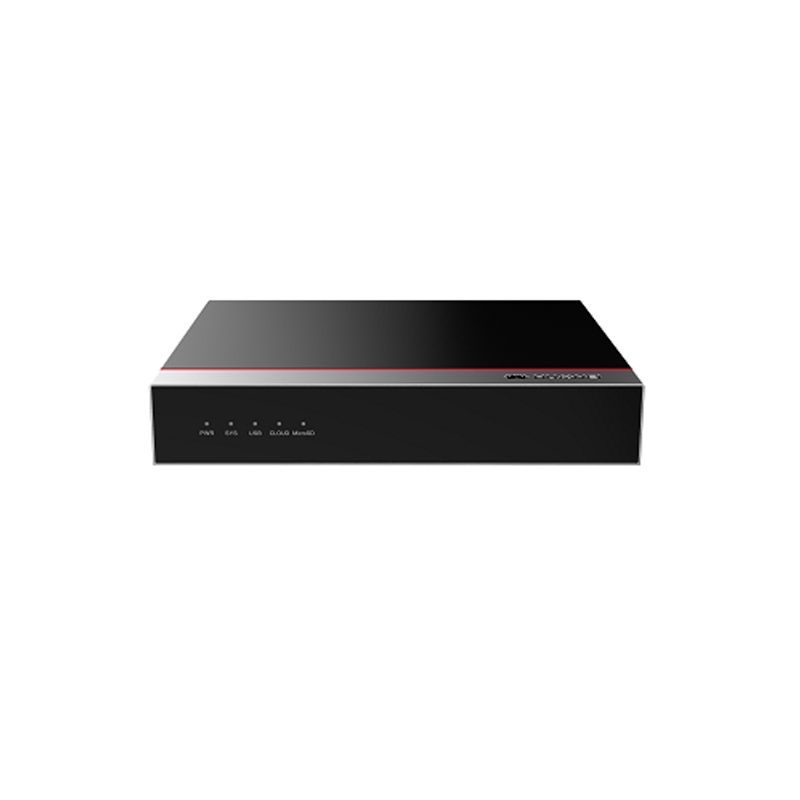

Quick Specs Figure 1 shows the appearance of USG6530E-AC.
Table 1 shows the Quick Specs.
| Description | USG6530E AC Host (2*10GE (SFP+) + 10*GE, with AC/DCÂ Adapter) |
| Dimensions (H x W x D) mm | 43.6 x 250 x 210 |
| Form Factor/Height | Desktop |
| Fixed Interface | 2 x 10GE (SFP+) + 10 x GE |
| USB Port | 1 x USB 3.0 |
| Weight (Full Configuration) | 1.5 kg |
| External Storage | Optional, Micro-SD card supported, 64 GB/128 GB |
| AC Power Supply | 100V to 240V |
| Power | 36 W |
| Power Supplies | External power adapter |
| Operating Environment(Temperature/Humidity) | Temperature: 0°C to 45°C;Humidity: 5% to 95%, non-condensing; |
| Non-operating Environment | Temperature: -40°C to +70°CHumidity: 5% to 95%, non-condensing; |
| Firewall Throughput1(1518/512/64-byte, UDP) | 4/4/3.6Â Gbit/s |
| Firewall Latency (64-byte, UDP) | 18 µs |
| FW + SA + IPS Throughput2 | 1.5Â Gbit/s |
| FW + SA + IPS + Antivirus Throughput2 | 1.5Â Gbit/s |
| Concurrent Sessions (HTTP1.1)1 | 500,000 |
| New Sessions/Second (HTTP1.1)1 | 30,000 |
| Maximum IPsec VPN Tunnels (GW to GW) | 2,000 |
| Maximum IPsec VPN Tunnels (Client to GW) | 2,000 |
| IPsec VPN Throughput1(AES-256 + SHA256, 1420-byte) | 3Â Gbit/s |
| SSL Inspection Throughput3 | 300 Mbit/s |
| Concurrent SSL VPN Users(Default/Maximum) | 100/500 |
| Security Policies (Maximum) | 3,000 |
| Virtual Firewalls | 20 |
| URL Filtering: Categories | More than 130 |
| URL Filtering: URLs | A database of over 120 million URLs in the cloud |
| Automated Threat Feedback and IPSSignature Updates | Yes |
| Third-Party and Open-Source Ecosystem | Open API for integration with third-party products, providing RESTful and NetConf interfacesOther third-party management software based on SNMP, SSH, and SyslogCooperation with third-party tools, such as Tufin, AlgoSec, and FireMonCollaboration with anti-APT solution |
| Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and eLog. |
| VLANs (Maximum) | 4094 |
| VLANIF Interfaces (Maximum) | 1024 |
| Local Storage | Optional, expandable 128 GB Micro-SD card |
| Integrated Protection | Integrates firewall, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam functions, and provides a global configuration view and integrated policy management. |
| Application Identification and Control | Identifies over 500 applications with access control granularity for application functions, for example, distinguishing between WeChat text and voice. Combines application identification with intrusion detection, antivirus, and data filtering, improving detection performance and accuracy. |
| Bandwidth Management | Manages per-user and per-IP bandwidth in addition to identifying service applications. This ensures the network access experience of key services and users. Management and control can be implemented by maximum bandwidth, guaranteed bandwidth, and application-specific PBR. This changes the forwarding priority of application traffic. |
| Intrusion Prevention and Web Protection | Rapidly obtains the latest threat information for accurate detection and defense against vulnerability-based attacks. The device can defend against web-specific attacks, including SQL injection and XSS attacks. |
| Cloud Management Mode | Initiates authentication and registration to the cloud management platform to implement plug-and-play and simplify network creation and deployment. Remote service configuration management, device monitoring, and fault management are used to implement cloud-based management of mass devices. |
| Cloud Application Security Awareness | Controls enterprise cloud applications in a refined and differentiated method. This matches enterprises’ requirements for cloud application management. |
