USG6565E-AC
Model: USG6565E-AC – Huawei HiSecEngine USG6500E Series Next-Generation Firewalls (Fixed-Configuration)
Details: USG6565E AC Host(2*GE WAN+8*GE Combo+2*10GE SFP+,1 AC power)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG6565E-AC Overview

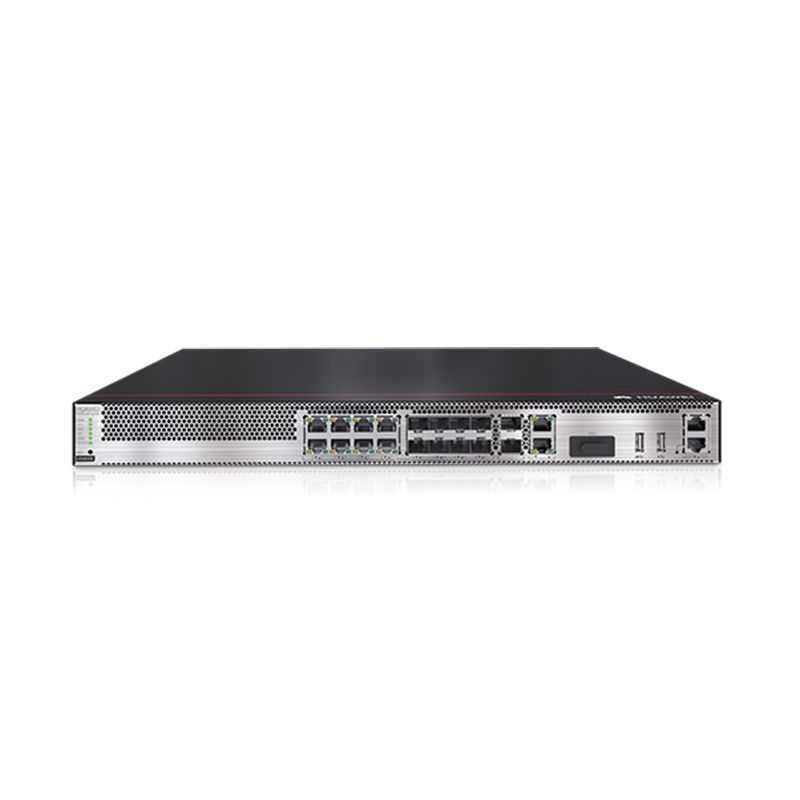

Quick Specs Figure 1 shows the appearance of USG6565E-AC.
Table 1 shows the Quick Specs.
| Description | USG6565E AC Host (2*10GE (SFP+) + 8*GE Combo +Â 2*GE WAN, AC power) |
| Dimensions (H x W x D) mm | 43.6 x 442 x 420 |
| Form Factor/Height | 1U |
| Fixed Interface | 2 x 10GE (SFP+) + 8 x GE Combo + 2 x GE WAN |
| Dedicated management port | Yes |
| USB Port | 1 x USB 2.0 + 1 x USB 3.0 |
| Weight (Full Configuration) | 5.8 kg |
| External Storage | Optional, SSD (M.2) card supported, 240 GB |
| AC Power Supply | 100V to 240V |
| Typical power consumption of themachine | 35 W |
| Power Supplies | Single AC power supply; optional dual AC power supplies |
| Operating Environment(Temperature/Humidity) | Temperature: 0°C to 45°CHumidity: 5% to 95%, non-condensing |
| Non-operating Environment | Temperature: -40°C to +70°CHumidity: 5% to 95%, non-condensing |
| Firewall Throughput1(1518/512/64-byte, UDP) | 6/6/3.6Â Gbit/s |
| Firewall Latency (64-byte, UDP) | 18 µs |
| FW + SA + IPS Throughput2 | 2.2Â Gbit/s |
| FW + SA + IPS + Antivirus Throughput2 | 2.2Â Gbit/s |
| Concurrent Sessions (HTTP1.1)1 | 4,000,000 |
| New Sessions/Second (HTTP1.1)1 | 80,000 |
| Maximum IPsec VPN Tunnels (GW to GW) | 4,000 |
| Maximum IPsec VPN Tunnels (Client to GW) | 4,000 |
| IPsec VPN Throughput1(AES-256 + SHA256, 1420-byte) | 6Â Gbit/s |
| SSL Inspection Throughput3 | 500 Mbit/s |
| Concurrent SSL VPN Users(Default/Maximum) | 100/1000 |
| Security Policies (Maximum) | 15,000 |
| Virtual Firewalls | 100 |
| URL Filtering: Categories | More than 130 |
| URL Filtering: URLs | A database of over 120 million URLs in the cloud |
| Automated Threat Feedback and IPSSignature Updates | Yes |
| Third-Party and Open-Source Ecosystem | Open API for integration with third-party products, providing RESTful and NetConf interfacesOther third-part management software based on SNMP, SSH, and SyslogCooperation with third-party tools, such as Tufin, AlgoSec and FireMonCollaboration with anti-APT solution |
| Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and eLog |
| VLANs (Maximum) | 4094 |
| VLANIF Interfaces (Maximum) | 1024 |
| Local Storage | Optional, SSD (M.2) card supported, 64 GB/240 GB |
| Integrated Protection | Provides firewall, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam functions. |
| Application Identification and Control | Identifies more than 6,000 applications with the access control granularity to application functions, for example, distinguishing between WeChat text and voice. Combines application identification with intrusion detection, antivirus, and data filtering, improving detection performance and accuracy. |
| Bandwidth Management | Manages per-user and per-IP bandwidth in addition to identifying service applications to ensure the network access experience of key services and users. Control methods include limiting the maximum bandwidth, ensuring the minimum bandwidth, applying PBR, and changing application forwarding priorities. |
| Intrusion Prevention and Web Protection | Obtains the latest threat information in a timely manner for accurate detection and defense against vulnerability-based attacks. The device can defend against web-specific attacks, including SQL injection and XSS attacks. |
| AAPT | Interworks with the local or cloud sandbox to detect and block malicious files.Encrypted traffic does not need to be decrypted. It can associate with the big data analysis platform CIS to detect threats in encrypted traffic.It proactively responds to malicious scanning behavior and associates with the CIS for behavior analysis to quickly detect and record malicious behavior, protecting enterprise against threats in real time. |
| Cloud Management Mode | Initiates authentication and registration to the cloud management platform to implement plug-and-play and simplify network creation and deployment.Remote service configuration management, device monitoring, and fault management are used to implement cloud-based management of mass devices. |
| Cloud Application Security Awareness | Controls enterprise cloud applications in a refined and differentiated manner to meet enterprises’ requirements for cloud application management. |
