USG6712E-AC

Original price was: $18,778.00.Current price is: $17,839.10.

Model: USG6712E-AC – Huawei USG6712E&USG6716E New-Generation Firewalls
Details: Huawei USG6712E AC Host (2*100G (QSFP28) + 2*40G (QSFP+) + 20*10GE (SFP+) + 2*10GE (SFP+) HA AC Power)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: USG6712E-AC Categories: ,
Description

USG6712E-AC Overview

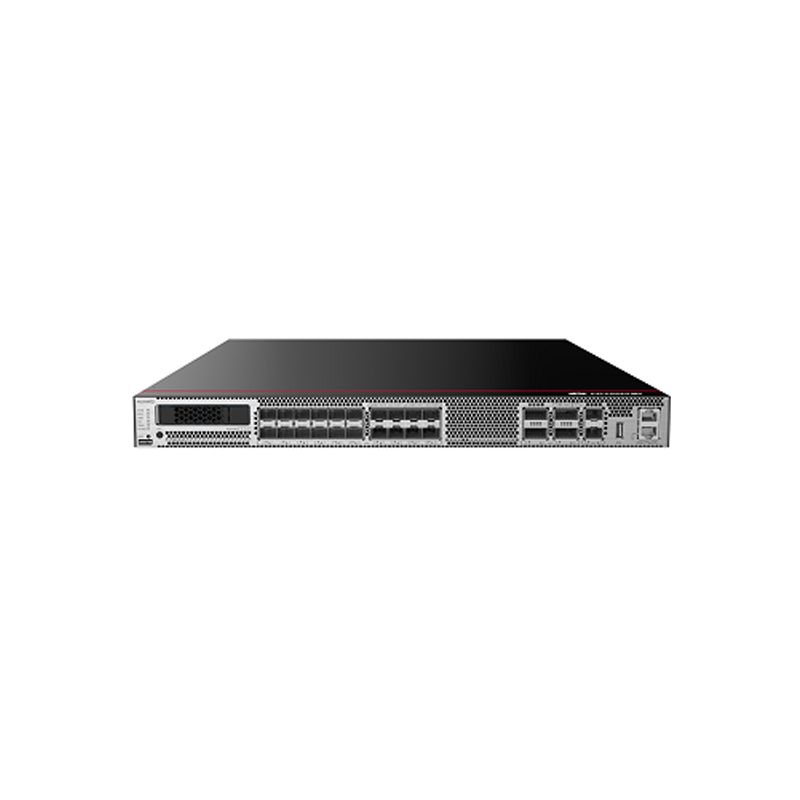

Quick Specs Figure 1 shows the appearance of USG6712E-AC.

Table 1 shows the Quick Specs.

Description USG6712E AC Host [2 x 100G (QSFP28) + 2 x 40G (QSFP+) + 20 x 10 GE (SFP+) + 2 x 10 GE (SFP+) HA, and AC Power]
Dimensions (H x W x D) mm 44 x 442 x 600
Form Factor/Height 1U
Fixed Interface 2*100G (QSFP28) + 2*40G (QSFP+) + 20*10GE (SFP+) + 2*10GE (SFP+) HA1Note1. Some 10G ports and 100G ports are mutually exclusive. The ports can be configured as follows: 2 * 100G (QSFP28) + 2 * 40G (QSFP+) + 12 * 10GE (SFP+) + 2 * 10GE (SFP+) HA or 4 * 40G (QSFP+) + 20 * 10GE (SFP+) + 2 * 10GE (SFP+) HA
USB Port 1 x USB 3.0
MTBF 25 years
Weight (Full Configuration) 12 kg
Local Storage Optional, SSD (1*2.5inch) supported, 240G/HDD (1*2.5inch supported, 1TB
AC Power Supply 100V to 240V, 50/60Hz
Power Consumption (Average/Maximum) 382.9W/566W
Heat Dissipation >1935.3 BTU/h
Power Supplies Dual AC power supplies
Operating Environmen(Temperature/Humidity) Temperature: 0°C to 45°C (without optional HDD);5°C to 40°C (with optional HDD)Humidity: 5% to 95% (without optional HDD), non-condensing;5% to 95% (with optional HDD), non-condensing
Non-operating Environment Temperature: -40°C to +70°CHumidity: 5% to 95% (without optional HDD), non-condensing;5% to 95% (with optional HDD), non-condensing
Operating Altitude (maximum) 5,000 meters (without optional HDD);3,000 meters (with optional HDD)
Non-operating Altitude (maximum) 5,000 meters (without optional HDD);3,000 meters (with optional HDD)
Noise Maximum value < 72 dBA
IPv4 Firewall Throughput1(1518/512/64-byte, UDP) 120/120/100 Gbit/s
IPv6 Firewall Throughput1(1518/512/84-byte, UDP) 120/120/26 Gbit/s
Firewall Throughput (Packet Per Second) 150 Mpps
Firewall Latency (64-byte, UDP) 15 µs
FW+SA* Throughput2 55 Gbit/s
FW+SA+IPS Throughput2 40 Gbit/s
FW+SA+IPS+Antivirus Throughput2 35 Gbit/s
Full Protection Throughput3 33 Gbit/s
Full protection Throughput(Realworld)4 16 Gbit/s
Concurrent Sessions (HTTP1.1)1 35,000,000
New Sessions/Second (HTTP1.1)1 1,400,000
IPSec VPN Throughput1(AES-256+SHA256, 1420-byte) 100 Gbit/s
Maximum IPsec VPN Tunnels (GW to GW) 120,000
Maximum IPsec VPN Tunnels (Client to GW) 120,000
SSL Inspection Throughput5 18 Gbit/s
SSL VPN Throughput6 10 Gbit/s
Concurrent SSL VPN Users (Default/Maximum) 100/30000
Firewall Policies (Maximum) 60,000
Virtual Firewalls (Maximum) 1,000
URL Filtering: Categories More than 130
URL Filtering: URLs Can access a database of over 120 million URLs in the cloud
Automated Threat Feed and IPSSignature Updates Yes
Third-Party and Open-Source Ecosystem Open API for integration with third-party products, providing RESTful and NetConf interfaceOther third-part management software based on SNMP, SSH, SyslogCo-operation with third-party tools, such as Tufin, Algosec and FiremonCollaboration with Anti-APT solution
Centralized Management Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and eLog
VLANs (Maximum) 4094
VLANIF Interfaces (Maximum) 1024
High Availability Configurations Active/Active, Active/Standby
Hardware CB, CE-SDOC, ROHS, REACH&WEEE(EU), RCM, NRTL, FCC&IC, CCC, VCCI
Regulatory Compliance Products comply with EU directives 2014/30/EU (Low Voltage Directive), 2014/35/EU (EMC Directive), and 2011/65/EU (RoHS Directive).
Safety •UL 60950-1•CSA-C22.2 No. 60950-1•EN 60950-1•IEC 60950-1
EMC: Emissions •EN55032 Class A•CISPR 32 Class A•ETSI EN 300 386•AS/NZS CIPSR 32•CAN/CSA-CISPR 32-17•IEC 61000-3-2/EN 61000-3-2•IEC 61000-3-3/EN 61000-3-3•FCC CFR47 Part 15 Subpart B Class A•ICES-003 Class A•VCCI V-3 Class A
EMC: Immunity •EN 55024•CISPR 24•ETSI EN 300 386
