-5%
USG6716E-AC
Model: USG6716E-AC – Huawei USG6712E&USG6716E New-Generation Firewalls
Details: Huawei USG6716E AC Host (2*100G (QSFP28) + 2*40G (QSFP+) + 20*10GE (SFP+) + 2*10GE (SFP+) HA, AC Power)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG6716E-AC Overview

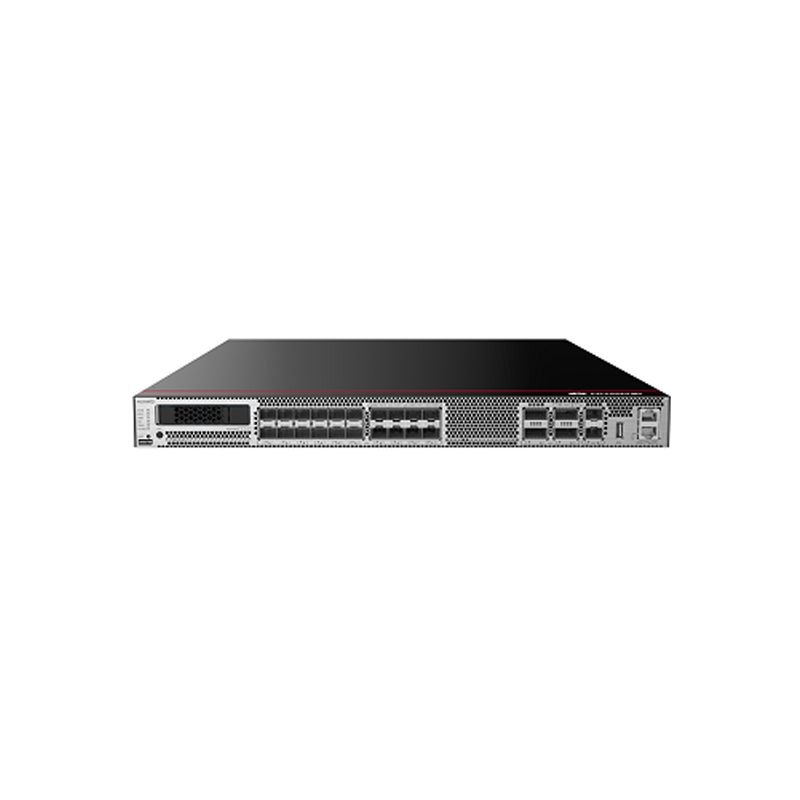

Quick Specs Figure 1 shows the appearance of USG6716E-AC.
Table 1 shows the Quick Specs.
| Description | USG6716E AC Host (2*100G (QSFP28) + 2*40G (QSFP+) + 20*10GE (SFP+) + 2*10GE (SFP+) HA, AC Power) |
| Dimensions (H x W x D) mm | 44 x 442 x 600 |
| Form Factor/Height | 1U |
| Fixed Interface | 2*100G (QSFP28) + 2*40G (QSFP+) + 20*10GE (SFP+) + 2*10GE (SFP+) HA1Note1. Some 10G ports and 100G ports are mutually exclusive. The ports can be configured as follows: 2 * 100G (QSFP28) + 2 * 40G (QSFP+) + 12 * 10GE (SFP+) + 2 * 10GE (SFP+) HA or 4 * 40G (QSFP+) + 20 * 10GE (SFP+) + 2 * 10GE (SFP+) HA |
| USB Port | 1 x USB 3.0 |
| MTBF | 25 years |
| Weight (Full Configuration) | 12 kg |
| Local Storage | Optional, SSD (1*2.5inch) supported, 240G/HDD (1*2.5inch supported, 1TB |
| AC Power | Supply 100V to 240V, 50/60Hz |
| Power Consumption (Average/Maximum) | 382.9W/566W |
| Heat Dissipation | >1935.3 BTU/h |
| Power Supplies | Dual AC power supplies |
| Operating Environmen(Temperature/Humidity) | Temperature: 0°C to 45°C (without optional HDD);5°C to 40°C (with optional HDD)Humidity: 5% to 95% (without optional HDD), non-condensing;5% to 95% (with optional HDD), non-condensing |
| Non-operating Environment | Temperature: -40°C to +70°CHumidity: 5% to 95% (without optional HDD), non-condensing;5% to 95% (with optional HDD), non-condensing |
| Operating Altitude (maximum) | 5,000 meters (without optional HDD);3,000 meters (with optional HDD) |
| Non-operating Altitude (maximum) | 5,000 meters (without optional HDD);3,000 meters (with optional HDD) |
| Noise | Maximum value < 72 dBA |
| IPv4 Firewall Throughput1(1518/512/64-byte, UDP) | 160/160/100 Gbit/s |
| IPv6 Firewall Throughput1(1518/512/84-byte, UDP) | 160/120/26 Gbit/s |
| Firewall Throughput (Packet Per Second) | 150 Mpps |
| Firewall Latency (64-byte, UDP) | 15 µs |
| FW+SA* Throughput2 | 60Â Gbit/s |
| FW+SA+IPS Throughput2 | 40 Gbit/s |
| FW+SA+IPS+Antivirus Throughput2 | 38Â Gbit/s |
| Full Protection Throughput3 | 36Â Gbit/s |
| Full protection Throughput(Realworld)4 | 18Â Gbit/s |
| Concurrent Sessions (HTTP1.1)1 | 50,000,000 |
| New Sessions/Second (HTTP1.1)1 | 1,600,000 |
| IPSec VPN Throughput1(AES-256+SHA256, 1420-byte) | 120 Gbit/s |
| Maximum IPsec VPN Tunnels (GW to GW) | 120,000 |
| Maximum IPsec VPN Tunnels (Client to GW) | 120,000 |
| SSL Inspection Throughput5 | 18 Gbit/s |
| SSL VPN Throughput6 | 12Â Gbit/s |
| Concurrent SSL VPN Users (Default/Maximum) | 100/30000 |
| Firewall Policies (Maximum) | 60,000 |
| Virtual Firewalls (Maximum) | 1,000 |
| URL Filtering: Categories | More than 130 |
| URL Filtering: URLs | Can access a database of over 120 million URLs in the cloud |
| Automated Threat Feed and IPSSignature Updates | Yes |
| Third-Party and Open-Source Ecosystem | Open API for integration with third-party products, providing RESTful and NetConf interfaceOther third-part management software based on SNMP, SSH, SyslogCo-operation with third-party tools, such as Tufin, Algosec and FiremonCollaboration with Anti-APT solution |
| Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and eLog |
| VLANs (Maximum) | 4094 |
| VLANIF Interfaces (Maximum) | 1024 |
| High Availability Configurations | Active/Active, Active/Standby |
| Hardware | CB, CE-SDOC, ROHS, REACH&WEEE(EU), RCM, NRTL, FCC&IC, CCC, VCCI |
| Regulatory Compliance | Products comply with EU directives 2014/30/EU (Low Voltage Directive), 2014/35/EU (EMC Directive), and 2011/65/EU (RoHS Directive). |
| Safety | •UL 60950-1•CSA-C22.2 No. 60950-1•EN 60950-1•IEC 60950-1 |
| EMC: Emissions | •EN55032 Class A•CISPR 32 Class A•ETSI EN 300 386•AS/NZS CIPSR 32•CAN/CSA-CISPR 32-17•IEC 61000-3-2/EN 61000-3-2•IEC 61000-3-3/EN 61000-3-3•FCC CFR47 Part 15 Subpart B Class A•ICES-003 Class A•VCCI V-3 Class A |
| EMC: Immunity | •EN 55024•CISPR 24•ETSI EN 300 386 |
Get more information
Do you have any question about the USG6716E-AC?
Contact us now via Live Chat or sales@metafinitivetech.com
