USG9520-BASE-DC-V3
Model: USG9520-BASE-DC-V3 0235G7F5 Huawei USG9500 Data Center Firewall
Details: USG9520 DC Basic Configuration(include X3 DC Chassis,2*MPU)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG9520-BASE-DC-V3 Overview

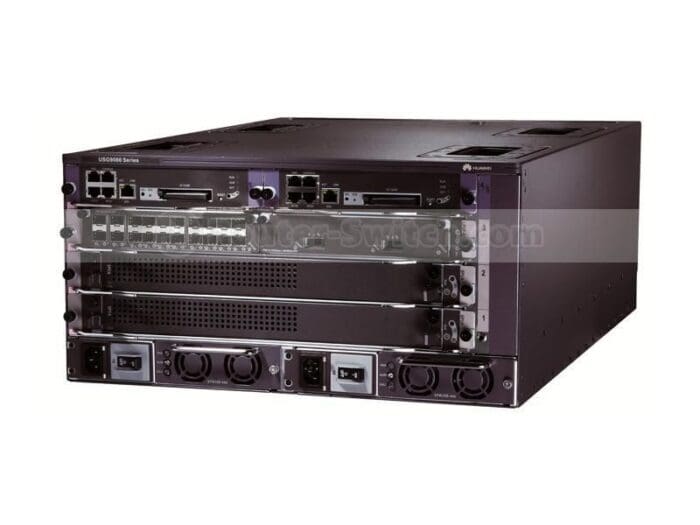

Quick Specs Figure 1 shows the appearance of USG9520-BASE-DC-V3.
Table 1 shows the Quick Specs.
| Firewall Throughput (maximum)* | 120 Gbit/s |
| Firewall Throughput (IMIX Traffic) | 120 Gbit/s |
| Maximum Number of Concurrent Sessions | 120 million |
| IPSec VPN Performance (1,420 Bytes) | 84 Gbit/s |
| Maximum Number of Concurrent IPSec Tunnels | 192,000 |
| IPS Performance | 38 Gbit/s |
| Antivirus Performance | 34 Gbit/s |
| Expansion Slots | 3 slots |
| Number of MPU Slots | 2 |
| Interface Types | GE, 10 GE, 40 GE, and 100 GE interfaces |
| SPU | Firewall and application security SPUs |
| Dimensions (H x W x D) | 175 mm x 442 mm x 650 mm DC220 mm x 442 mm x 650 mm DC |
| Weight | Vacant chassis: 15 kg, DCFull configuration: 30.7 kg, DCVacant chassis: 25 kg, ACFull configuration: 40.7 kg, AC |
| Redundant Power Supply | Standard configuration |
| AC Power Supply | 90V AC to 264V AC; 175V AC to 264V AC (recommended) |
| DC Power Supply | -38V to -72V; Rated -48V |
| Power consumption | 1,270W |
| Operating Temperature | Long-term: 0°C to 45°CShort-term: -5°C to 55°CStorage: -40°C to 70°C |
| Ambient Humidity | Long-term: 5% RH to 85% RH, non-condensingShort-term: 5% RH to 95% RH, non-condensingStorage: 0% RH to 95% RH, non-condensing |
