-5%
USG9580-BASE-DC-51
Model: USG9580-BASE-DC-51 – Huawei USG9500 Series Terabit-Level Next-Generation Firewall
Details: Huawei USG9580 DC Standard Configuration (include X16 DC Chassis, 2*MPU, 4*SFU)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USG9580-BASE-DC-51 Overview

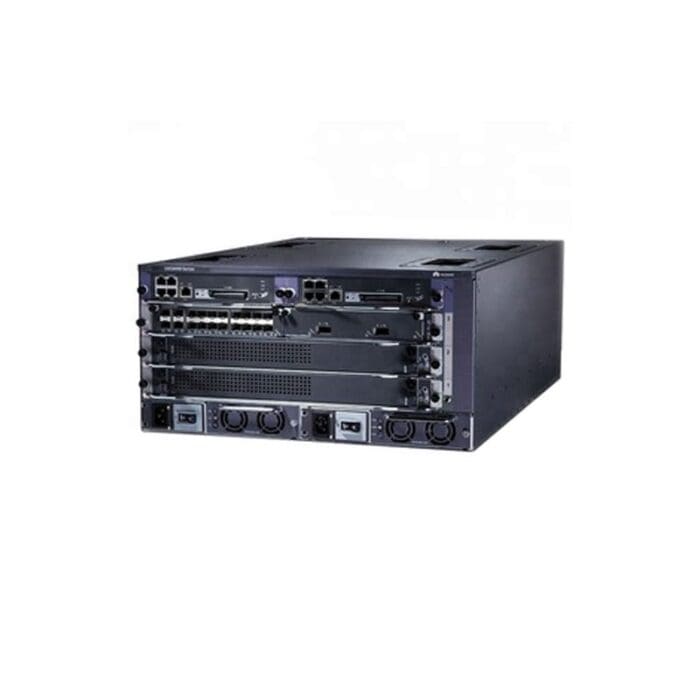

Quick Specs Figure 1 shows the appearance of USG9580-BASE-DC-51.
Table 1 shows the Quick Specs.
| Dimensions (HxWxD) | 1420 x 442 x 650 (32U) |
| Weight (Full Configuration) | Empty: 94.4 kgFull configuration:Â 233.9 kg |
| Power Supplies | 4+4Â backup |
| AC Power | 90 V AC to 264 V AC; 175 V AC to 264 V AC (recommended) |
| DC Power | -72 V to -38 V; -48 V (rated) |
| Power Consumption | Typical: 7387WMost: 8930W |
| Working temperature | Extended operation: 0°C to 45°CStorage: -40°C to +70°C |
| Ambient humidity | Long term: 5% RH to 85% RH, non-condensingShort term: 5% RH to 95% RH, non-condensing |
| Expansion Slot | 16 |
| Maximum Number of Interfaces | 192*10GE (RJ45) |
| Console Ports | 2 |
| Management Ports | 2 |
| MTBF | 29.78 years |
| MTTR | 0.5 hours |
| IPv4 Firewall Throughput1(1518/512/64-byte, UDP) | 1,920/1,920/528 Gbit/s |
| IPv6 Firewall Throughput1(1518/512/84-byte, UDP) | 1,920/1,920/592 Gbit/ |
| Firewall Throughput (Packets Per Second) | 784Mpps |
| Firewall Latency (64-byte, UDP) | 80 µs |
| Security Policies (Maximum) | 100,000 |
| Virtual Firewalls (Default/Maximum) | 10/4,095 |
| URL Filtering: Categories | More than 130 |
| URL Filtering: URLs | Can access a database of over 120 million URLs in the cloud |
| Third-Party and Open-Source Ecosystem | Open APIs for integration with third-party products through RESTCONF and NETCONF interfacesOther third-party management software based on SNMP, SSH, and syslogCollaboration with third-party tools, such as FireMonCollaboration with Anti-APT solution |
| Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and eLog |
| VLANs (maximum) | 4,094 |
| Virtual Interfaces (maximum) | 1,024 |
| High Availability Configurations | Active/Active, Active/Standby |
