USW-48
Model: USW-48-Ubiquiti Layer 2 Switch
Details: The Switch 48 (USW 48) is a fully managed, fanless switch with (48) GbE RJ45 ports and (4) 1G SFP ports.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USW-48 Overview

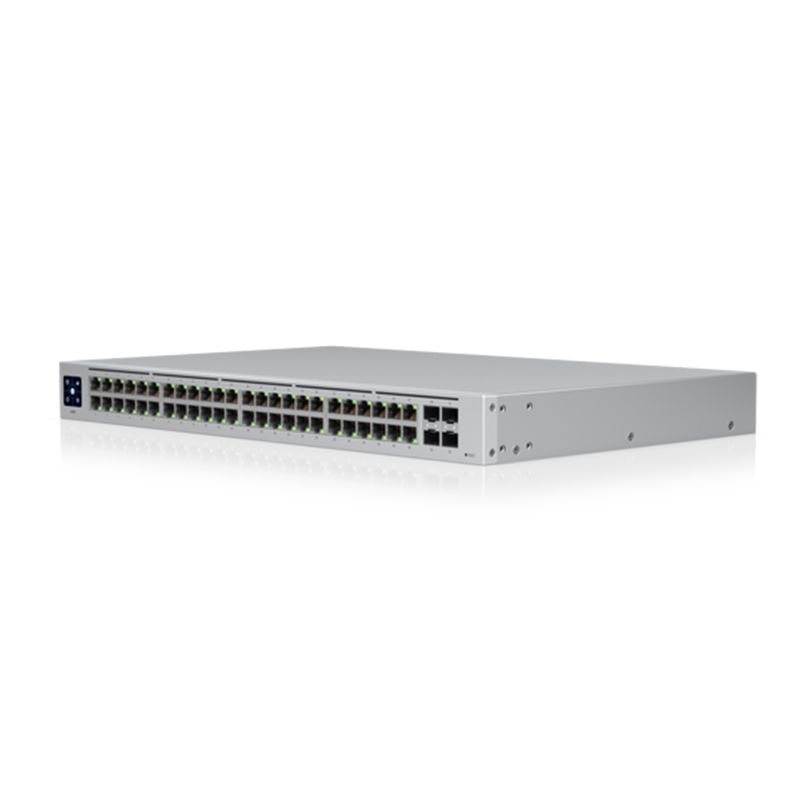

Quick Specs Figure 1 shows the appearance of USW-48.
Table 1 shows the Quick Specs.
| Dimensions | 442.4 x 285 x 43.7 Â mm (17.42Â x 11.22 x 1.72″) |
| Enclosure Characteristics | SGCC Steel |
| Total Non-Blocking Line Rate | 52 Gbps |
| Max. Power Consumption | 40W |
| Forwarding Rate | 77.376 Mpps |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| Supported Voltage Range | 100Â – 240VAC |
| Networking Interfaces | (48) 10/100/1000 Mbps Ethernet RJ45 Ports(4) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
| System | (1) Bootup Animation: Bootup in ProgressFirmware Upgrade Icon: Firmware UpgradingSteady White: Factory Defaults, Awaiting AdoptionSteady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| SFP | Green: 1G |
