USW-Enterprise-8-PoE
Model: USW-Enterprise-8-PoE – Managed, Layer 3 Switch
Details: Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
USW-Enterprise-8-PoE Overview

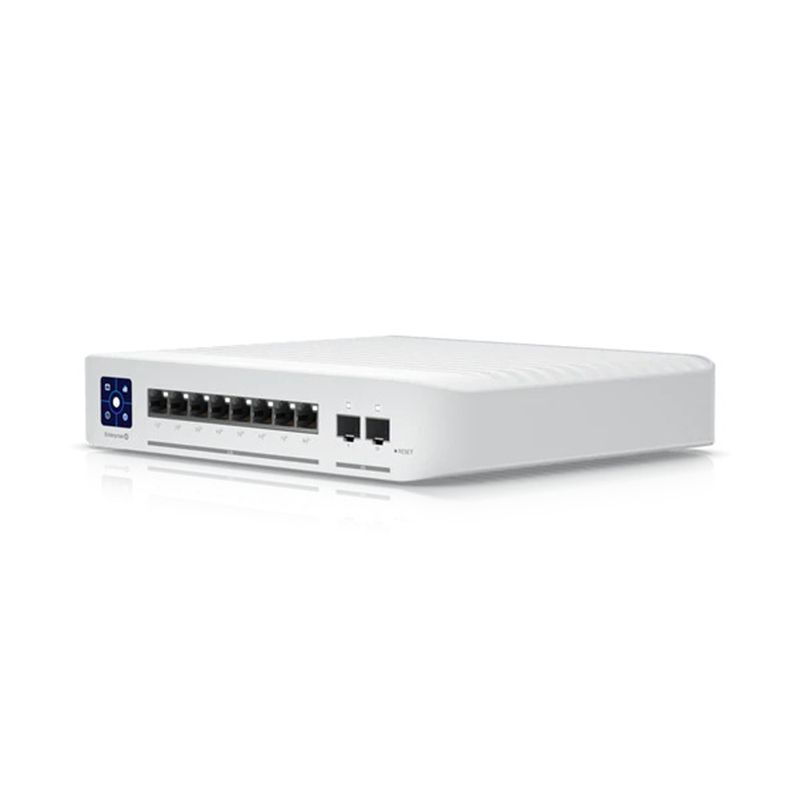

Quick Specs Figure 1 shows the appearance of USW-Enterprise-8-PoE.
Table 1 shows the Quick Specs.
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| Total Non-Blocking Throughput | 40 Gbps |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps |
| Max PoE Power | 120W |
| Power Method | (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (8) 1/2.5 Gbps RJ45 Ethernet |
| SFP+ Interfaces | (2) 1/10 Gbps SFP+ |
| PoE Interfaces | (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 32W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3* PoE Gigabit Ethernet Switch* Layer 3 feature will be available in the future firmware release. |
| LCM Display | (1) 1.3″ TouchscreenBootup Animation: Bootup in ProgressFirmware Upgrade Icon: Firmware UpgradingSteady White: Factory Defaults, Awaiting AdoptionSteady Blue: Device is Adopted |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Ethernet | White: Link or Activity |
| SFP+ | White: Link or Activity |
