S5736-S48S4X-A
S5736-S48S4X-A Original price was: $1,266.00.Current price is: $1,202.70.

USW-Pro-48-PoE

Original price was: $1,379.00.Current price is: $1,310.05.

Model: UBNT USW-Pro-48-PoE – Ubiquiti Enterprise Switches
Details: Ubiquiti Networks UniFi Pro 48-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Silver 1U Power over Ethernet (PoE)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

SKU: USW-Pro-48-PoE Categories: , ,
Description

USW-Pro-48-PoE Overview

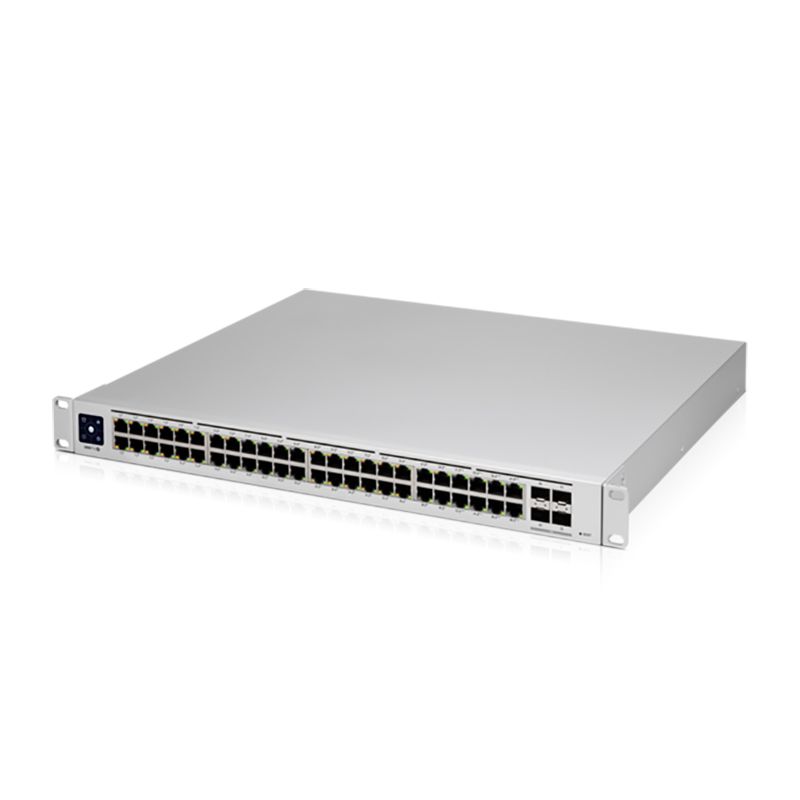

Quick Specs Figure 1 shows the appearance of USW-Pro-48-PoE.

Table 1 shows the Quick Specs.

Dimensions 442.4 x 399.6 x 43.7 mm(17.42 x 15.73 x 1.72″)
InterfacesNetworkingManagement (48) 10/100/1000 RJ45 Ports(4) 1/10G SFP+ Ethernet PortsEthernet In-Band
Total Non‑Blocking Throughput 88 Gbps
Switching Capacity 176 Gbps
Forwarding Rate 130.944 Mpps
Power MethodUniversal InputUSP RPS DC Input 100-240VAC/50-60 Hz52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply AC/DC, Internal, 660W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 60W
LEDsSystemRJ45 Data PortsSFP+ Data Ports StatusPoE; Speed/Link/ActivityLink/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
Total Available PoE 600W
PoE InterfacesPorts 1-40Ports 41-48 POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎
Max. PoE Wattage per Port by PSE802.3at802.3bt 32W64W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at Mode 50-57V
